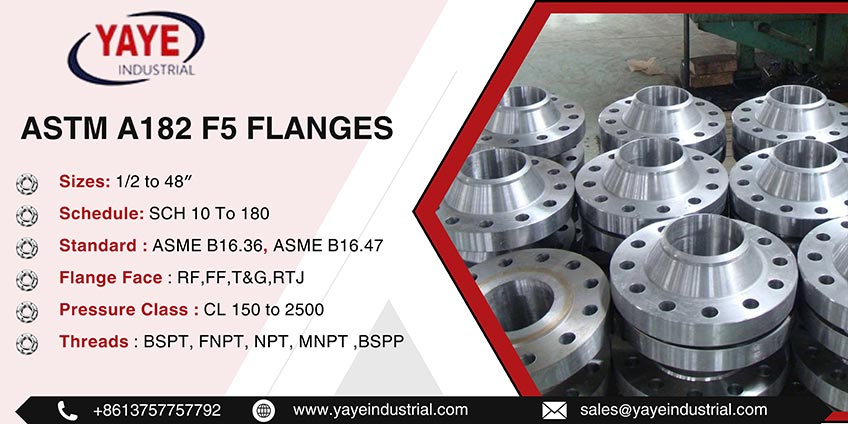

ASTM A182 F5 Flanges

Home|ASTM A182 F5 Flanges

Outstanding Manufacturer of Alloy Steel F5 Flanges in China, According to ANSI B16.5

ASTM A182 F5 Flanges

Table of Content

Flanges-table

Get ASME SA182 F5 Alloy Steel Flanges With Accurate Dimensions, Refer SA 182 Gr F5 Flanges Specification & Pressure Temperature.

ASTM A182 F5 Flanges Specification

Flange Sizes

Chrome Moly F5 Blind Flange Sizes

  • PN 2.5 – PN 400
  • 15NB – 1500NB
  • NPS: ½” to 48″
Flange Standards

ANSI B16.5 Alloy Steel F5 Weld Neck Flange Standards

  • ASME B16.36
  • ASME B16.5
  • ASME B16.47
Flange Schedule

Alloy Steel F5 Slip On Flange Schedule

  • SCH 10/ 20/ 40
  • SCH 120/ 140
  • SCH 60/ 80/ 100
  • SCH 160/ 180
Pressure Types

F5 Alloy Steel Weld Neck Flange Pressure Types

  • Cl 1500 -2500
  • Cl 600-900
  • Cl 125 -150
Features

A182 F5 material Plate Flange Features

  • Durable
  • Weight
  • Weldable
Testing Methods

ASTM A182 Grade F5 Socket Weld Flange Testing Methods

  • Tensile
  • Hardness test
  • Pressure
  • PMI test
Flanges Process

SA 182 Gr F5 Socket Weld Flange Process

  • Casting
  • Rolling
  • Cutting
  • Forging
Flange Threads

A182 F5 Socket Weld Flange Threads

  • BSPT
  • BSPP
  • NPT, MNPT
  • FNPT
Certificates

Certificates of Chrome Moly F5 Lap Joint Flanges

  • Third Party Inspection
  • MTC BS EN 10204 3.1/ 3.2
  • NACE MR0175
  • 100% Radiography Test
Density & Temperature

Chrome Moly F5 Blind Flanges Density & Temperature

  • Melting Point : 1750°C
  • Density : 7.8g/cm3
  • Forging Temp : 1750°F

Advantages

Chrome Moly F5 Pipe Flanges Advantages

  • Crack Resistant
  • Rupture Resistant
  • Ductile
flange Face

A182 F5 slip on flange Face

  • RF
  • T&G
  • FF
  • RTJ

Origin

Alloy Steel F5 Blind Flanges Origin

  • China
  • Japan
  • Indian
  • European
Disadvantages

Disadvantages of ANSI B16.5 Chrome Moly F5 Plate Flange

  • Limited Flexibility
  • Low Temperatures
  • Corrosion Prone

Types of ASTM A182 F5 Flanges


ASTM A182 F5 Flanges Supplier in China Provide multiple Range Of Flanges to satisfy customer needs

Chrome Moly F5 Pipe Flanges

Chrome Moly F5 Pipe Flanges

ANSI B16.5 Alloy Steel F5 Orifice Flange

ANSI B16.5 Alloy Steel F5 Orifice Flange

Alloy Steel F5 Spectacle Blind Flange

Alloy Steel F5 Spectacle Blind Flange

Chrome Moly F5 Blind Flanges

Chrome Moly F5 Blind Flanges

Alloy Steel F5 Weld Neck Flange

Alloy Steel F5 Weld Neck Flange

ASTM A182 Chrome Moly F5 Threaded Flanges

ASTM A182 Chrome Moly F5 Threaded Flanges

Alloy Steel F5 Nippo Plate Flange

Alloy Steel F5 Nippo Plate Flange

A182 F5 Socket Weld Flange

A182 F5 Socket Weld Flange

Chrome Moly F5 Lap Joint Flanges

Chrome Moly F5 Lap Joint Flanges


Chrome Moly F5 Plate Flange Pressure Chart

temperature. C 300# 150# 1500# 400# 900# 600# 2500#
250 27.5 10.5 137.3 36.6 82.4 54.9 228.9
100 34.8 13.3 173.9 46.4 104.4 69.6 289.9
-29 to 38 41.4 15.9 206.8 55.2 124.1 82.7 344.7
200 29.2 11.2 145.8 38.9 87.5 58.3 243
50 40 15.3 200.1 53.4 120.1 80 333.5
300 26.1 10 130.3 34.8 78.2 52.1 217.2
350 25.1 8.4 125.4 33.4 75.2 50.1 208.9
325 25.5 9.3 127.4 34 76.4 51 212.3
400 24.3 6.5 121.5 32.4 72.9 48.6 202.5
375 24.8 7.4 123.8 33 74.3 49.5 206.3
425 23.9 5.5 119.3 31.8 71.6 47.7 198.8
150 31.4 12 157 41.9 94.2 62.8 261.6
450 23.4 4.6 117.1 31.2 70.2 46.8 195.1

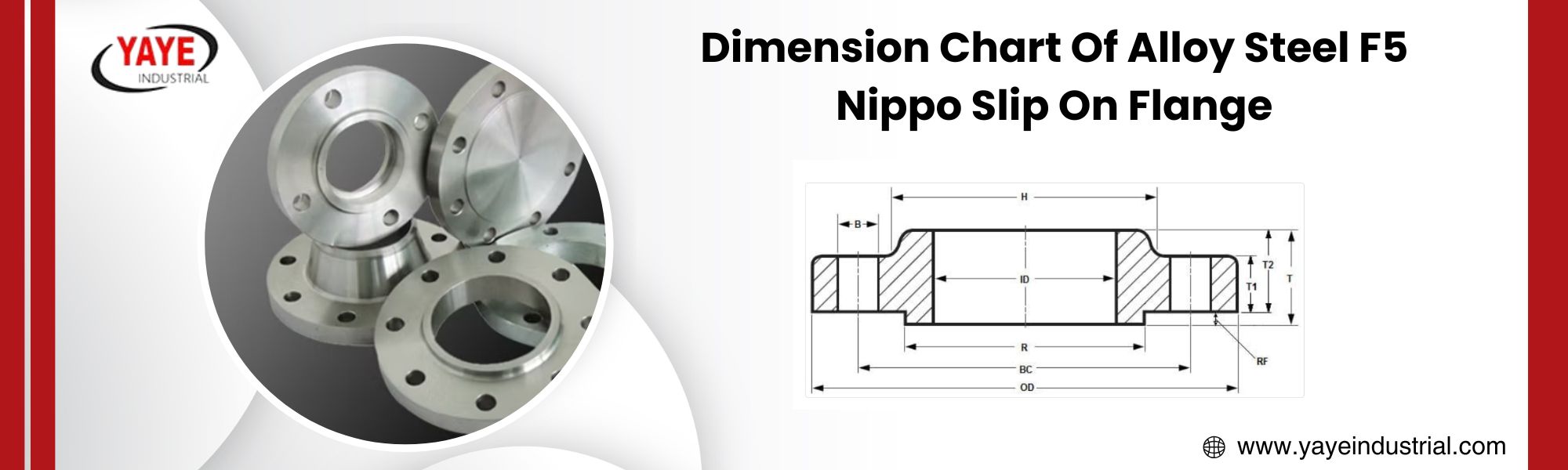

Dimension Chart Of Alloy Steel F5 Nippo Slip On Flange

ASTM A182 F5 Flanges Manufacturer In China Offers Multiple Range Of Dimensions Of Flanges

Dimension Chart Of Alloy Steel F5 Nippo Slip On Flange

NPS OD ID Bolts Circle Height Thickness
Bolts Holes		 Flat Thickness B.H. No
8 13.50 8.72 11.75 9.69 1.06 .88 1.69 8
14 21.00 14.14 18.75 15.75 1.32 1.12 2.19 12
1-1/2 5.00 1.97 3.88 2.56 .62 .62 .82 4
2 6.00 2.44 4.75 3.06 .69 .75 .94 4
1 4.25 1.36 3.12 1.94 .50 .62 .63 4
4 9.00 4.57 7.50 5.31 .88 .75 1.25 8
2-1/2 7.00 2.94 5.50 3.56 .82 .75 1.06 4
3 7.50 3.57 6.00 4.25 .88 .75 1.13 4
1-1/4 4.62 1.70 3.50 2.31 .56 .62 .75 4
1/2 3.50 0.88 2.38 1.19 .38 .62 .56 4
3-1/2 8.50 4.07 7.00 4.81 .88 .75 1.19 8
5 10.00 5.66 8.50 6.44 .88 .88 1.38 8
16 23.50 16.16 21.25 18.00 1.38 1.12 2.44 16
24 32.00 24.25 29.50 26.12 1.82 1.38 3.19 20
3/4 3.88 1.09 2.75 1.50 .44 .62 .56 4
18 25.00 18.18 22.75 19.88 1.50 1.25 2.63 16
22 29.50 22.22 27.25 24.25 1.75 1.38 3.07 20
10 16.00 10.88 14.25 12.00 1.13 1.00 1.88 12
12 19.00 12.88 17.00 14.38 1.19 1.00 2.13 12
6 11.00 6.72 9.50 7.56 .94 .88 1.50 8
20 27.50 20.20 25.00 22.00 1.63 1.25 2.83 20

Weight Chart Of Chrome Moly F5 Plate Flange

NPS Cl 600 Cl 150 Cl 900 Cl 300 Cl 400 Cl 1500
½ 3 2 4 2 2 4
1¼ 6 3 10 6 6 10
8 140 47 290 81 100 510
14 378 140 619 250 310 1300
1½ 8 4 14 7 8 14
1 4 2 9 4 4 9
2 10 5 25 8 10 25
2½ 15 7 32 12 15 35
¾ 4 2 6 3 3 6
10 231 70 415 124 155 775
3 20 9 35 16 20 48
18 665 160 1107 414 502 2225
3½ 29 13 54 21 29 73
4 41 17 87 28 33 140
16 527 180 880 315 398 1750
12 295 123 520 185 226 975
20 855 285 2099 515 621 3625
5 68 20 115 37 44 160
6 86 27 200 50 61 302

Alloy Steel F5 Spectacle Blind Flange Thickness Chart

Wall Thick.
NPS O.D sch 140 Sch 20 Sch 10 Sch 30 sch 120 Sch 60 STD EXT Hvy sch 100 Sch 40 sch 80 sch 160 XX Hvy
1 1.315 ... ... 0.109 ... ... ... 0.133 0.179 ... 0.133 0.179 0.25 0.358
26 26 .... .... .... .... .... .... 0.375 0.5 .... .... .... .... ....
22 22 .... ... 0.25 ... .... ... 0.375 0.5 ... ... ... .... ....
30 30 .... 0.5 0.312 0.625 .... .... 0.375 0.5 .... .... .... .... ....
1 ¼ 1.66 ... ... 0.109 ... ... ... 0.14 0.191 ... 0.14 0.191 0.25 0.382
½ 0.84 ... ... 0.083 ... ... ... 0.109 0.147 ... 0.109 0.147 0.188 0.294
24 24 2.062 0.375 0.25 0.562 1.812 0.969 0.375 0.5 1.531 0.688 1.219 2.344 ....
18 18 1.562 0.312 0.25 0.438 1.375 0.75 0.375 0.5 1.156 0.562 0.938 1.781 ...
2 2.375 ... ... 0.109 ... ... ... 0.154 0.218 ... 0.154 0.218 0.344 0.436
20 20 1.75 0.375 0.25 0.5 1.5 0.812 0.375 0.5 1.281 0.594 1.031 1.969 ...
¾ 1.05 ... ... 0.083 ... ... ... 0.113 0.154 ... 0.113 0.154 0.219 0.308
1 ½ 1.9 ... ... 0.109 ... ... ... 0.145 0.2 ... 0.145 0.2 0.281 0.4
36 36 .... 0.5 0.312 0.625 .... .... 0.375 0.5 .... 0.75 .... .... ....
2 ½ 2.875 ... ... 0.12 ... ... ... 0.203 0.276 ... 0.203 0.276 0.375 0.552
12 12.75 1.125 0.25 0.18 0.33 1 0.562 0.375 0.5 0.844 0.406 0.688 1.312 1
40 40 .... .... .... .... .... .... 0.375 0.5 .... .... .... .... ....
3 3.5 ... ... 0.12 ... ... ... 0.216 0.3 ... 0.216 0.3 0.438 0.6
42 42 …….. …….. …….. …….. …….. …….. 0.375 0.5 …….. …….. …….. …….. ……..
5 5.563 ... ... 0.134 ... 0.5 ... 0.258 0.375 ... 0.258 0.375 0.625 0.75
14 14 1.25 0.312 0.25 0.375 1.094 0.594 0.375 0.5 0.938 0.438 0.75 1.406 ...
16 16 1.438 0.312 0.25 0.375 1.219 0.656 0.375 0.5 1.031 0.5 0.844 1.594 ...
6 6.625 ... ... 0.134 ... 0.562 ... 0.28 0.432 ... 0.28 0.432 0.719 0.864
48 48 …….. …….. …….. …….. …….. …….. 0.375 0.5 …….. …….. …….. …….. ……..
3 ½ 4 ... ... 0.12 ... ... ... 0.226 0.318 ... 0.226 0.318 ... 0.636
4 4.5 ... ... 0.12 ... 0.438 ... 0.237 0.337 ... 0.237 0.337 0.531 0.674
8 8.625 0.812 0.25 0.148 0.277 0.719 0.406 0.322 0.5 0.594 0.322 0.5 0.906 0.875
10 10.75 1 0.25 0.165 0.307 0.844 0.5 0.365 0.5 0.719 0.365 0.594 1.125 1

Size Chart Of ANSI B16.5 Alloy Steel F5 Plate Flange


 Class 600 Class 300
Size Dia of Bolts And Studs Stud Len Dia of Bolts & Studs Stud Len Dia of Bolts & Studs
1/4 RF 1/16 RF
2 0.63 4-1/4 0.63 3-1/2 0.63
4 0.63 5-3/4 0.88 4-1/2 0.75
1/2 0.50 3 0.50 2-1/2 0.50
2-1/2 0.63 4-3/4 0.75 4 0.75
1 0.50 3-1/2 0.63 3 0.63
16 1.00 10 1.50 7-1/2 1.25
3-1/2 0.63 5-1/2 0.88 4-1/4 0.75
3 0.63 5 0.75 4-1/4 0.75
10 0.88 8-1/2 1.25 6-1/4 1.00
18 1.13 10-3/4 1.63 7-3/4 1.25
6 0.75 6-3/4 1.00 4-3/4 0.75
8 0.75 7-1/2 1.13 5-1/2 0.88
14 1.00 9-1/4 1.38 7 1.13
5 0.75 6-1/2 1.00 4-3/4 0.75
3/4 0.50 3-1/2 0.63 3 0.63
20 1.13 11-1/4 1.63 8 1.25
12 0.88 8-3/4 1.25 6-3/4 1.13
1-1/2 0.50 4-1/4 0.75 3-1/2 0.75
1-1/4 0.50 3-3/4 0.63 3-1/4 0.63
24 1.25 13 1.88 9 1.50

Chrome Moly F5 Slip On Flanges Dimensions

NPS Outer mtr RF Bore mtr Hub meter Socket Dep Hub Len Bolt Circle Min Thick Bolt No Bolt Holes Weight kg -
  (O) (R) (B1) (X) (B2) (Y) (D) (tf) (I) (W) (n) (-)
1/2 90 34.9 22.2 30 15.8 14 10 9.6 15.9 60.3 4 0.42
2 1/2 180 104.8 74.6 90 62.7 27 19 20.7 19.1 139.7 4 3.51
1 1/2 125 73.0 49.5 65 40.9 21 16 15.9 15.9 98.4 4 1.32
3 190 127.0 90.7 108 77.9 29 21 22.3 19.1 152.4 4 4.01
1 110 50.8 34.5 49 26.6 16 13 12.7 15.9 79.4 4 0.83
3/4 100 42.9 27.7 38 20.9 14 11 11.2 15.9 69.9 4 0.60
1 1/4 115 63.5 43.2 59 35.1 19 14 14.3 15.9 88.9 4 1.01
2 150 92.1 61.9 78 52.5 24 17 17.5 19.1 120.7 4 2.07

Mechanical Properties of Alloy Steel F5 Spectacle Blind Flange

ASTM A182 F5 Flanges Manufacturer In China Offers Flanges With Superior Mechanical properties

Yield Strength (MPA)

485

Tensile Strength (MPA)

275

Elongation %

20



Equivalent Grades of Chrome Moly F5 Blind Flanges

UNS

K41545


Werkstoff NR

1.7362



Alloy Steel F5 Nippo Plate Flange Chemical Composition

SILICON

0.5

MOLYBDENUM

0.65

CHROMIUM

0.30

SULFER

0.03

PHOSPHORUS

0.03

CARBON

0.30

Physical Properties Of Alloy Steel F5 Weld Neck Flange

Property Value
Electrical Resistivity 0.75 µΩ·m
Thermal Conductivity 26.2 W/m·K
Poisson’s Ratio 0.27-0.30
Specific Heat Capacity 0.46 J/g·K

Heat Traetment Temperatures For Chrome Moly F5 Blind Flanges

Process Temperature
Annealing 871°C - 926°C
Quenching 899°C - 926°C
Tempering 538°C - 593°C

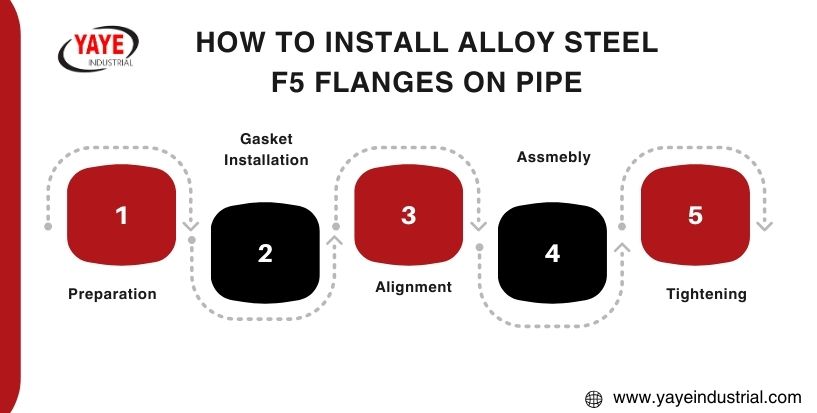

How to Install Alloy Steel F5 Flanges on Pipe

How to Install Alloy Steel F5 Flanges on Pipe

Installing Process

  • Preparation
  • Installing Gasket
  • Aligning And Assembling, Tightening
  • Inspection



What Industries Use Yaye Industrial ASTM A182 F5 Flanges?

  • Petrochemical, Offshore
  • Construction, Pharmaceuticals
  • Oil & Gas
