ASTM A182 F317 Flanges

Home|ASTM A182 F317 Flanges

Manufacturer of ASTM A182 F317 Slip on Flange in China, Superior Pitting Resistance

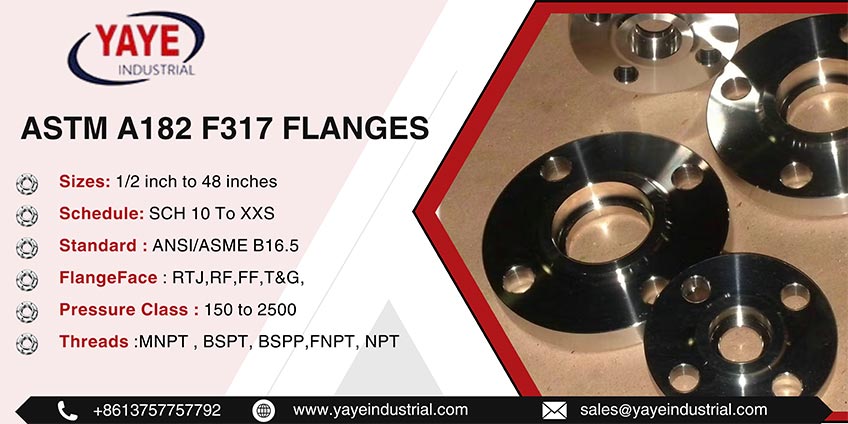

ASTM A182 F317 Flanges

Table of Content

Flanges-table

Get SS 317L Weld Neck Flanges widely used in chemical plants & Refer SS UNS S31703 Slip On Flanges Specification & Dimension Chart.


ASTM A182 F317 Flanges Specification

Flange Schedule

SS UNS S31700 Pipe Flanges Schedule

  • SCH 10/ 20/ 40
  • SCH 60/ 80/ 100
  • SCH 120/ 140
  • SCH 160/ XXS
Pressure Types

SS 317 Slip On Flanges Pressure Types

  • 150# To 300#
  • 600# To 900#
  • 1500# To 2500#
Flange Sizes

SS UNS S31700 Pipe Flanges Sizes

  • 1/2″ (15 NB) to 48″ (1200NB)
Flange Standards

ASME SA182 F347 Stainless Steel Flanges Standards

  • ANSI/ASME B16.5
  • BS4504
  • EN-1092
Testing Methods

Stainless Steel 317 RTJ Flange Testing Methods

  • Flaring Test
  • Flattening Test
  • PMI
  • Hardness test
Features

SS 317 Blind Flanges Features

  • Corrosion Resistance
  • Weldability
  • Versatility
Flange Threads

STM A182 SS F317 Flanges Threads

  • BSPP
  • BSPT
  • FNPT
  • NPT, MNPT
Flanges Process

ASME SA182 SS 317 Lap Joint Flange Process

  • Cutting
  • Casting
  • Rolling
  • Forging
flange Face

SS F317L Flanges Face

  • RTJ
  • RF
  • T&G
  • FF
Origin

SS UNS S31700 Pipe Flanges Origin

  • China
  • Peru
  • Mexico
  • Indian
Advantages

Stainless Steel 317 Flanges Advantages

  • Weldability
  • High Temperature resistance
  • Corrosion resistance
Disadvantages

ANSI B16.5 SS 317 Flanges Disadvantages

  • Limited availability
  • High Cost
Certificates

Certificates of SS 317 Blind Flanges

  • EN 10204/3.1B
  • Third Party Inspection
  • MTC BS EN 10204 3.1/ 3.2
  • 100% Radiography Test
Density & Temperature

ASTM A182 SS F317 Threaded Flanges Density & Temperature

  • Density : 7.9 g/cm3
  • Melting Point : 1400 °C (2550 °F)

Types of Stainless Steel F317 Flanges

ASTM A182 F317 Flanges Supplier in China offers a variety of the most prevalent types



SS UNS S31700 Pipe Flange

SS UNS S31700 Pipe Flange

SS 317 Slip On Flanges

SS 317 Slip On Flanges

Stainless Steel 317 Plate Flange

Stainless Steel 317 Plate Flange

ANSI B16.5 SS 317 Socket Weld Flange

ANSI B16.5 SS 317 Socket Weld Flange

ASME SA182 SS 317 Lap Joint Flange

ASME SA182 SS 317 Lap Joint Flange

SS 317 Weld Neck Flange

SS 317 Weld Neck Flange

317 SS WNRF Spectacle Blind Flanges

317 SS WNRF Spectacle Blind Flanges

ASTM A182 SS F317 Threaded Flanges

ASTM A182 SS F317 Threaded Flanges

ANSI B16.5 SS S31703 Orifice Flanges

ANSI B16.5 SS S31703 Orifice Flanges

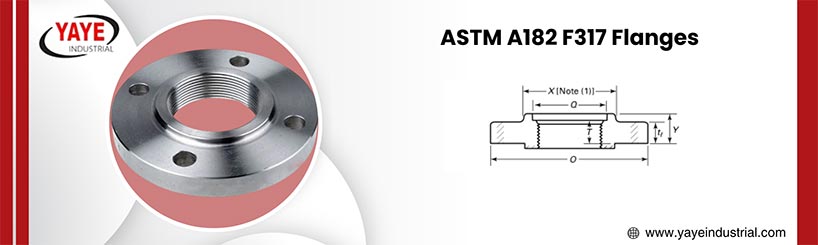

SS UNS S31700 Pipe Flanges Dimensions

SS UNS S31700 Pipe Flanges Dimensions
NS

Min.Thickness

 SO Bore ID
 WN Bore ID
 Dia. of Hub Top
 OD RF Dia.
 No. of Bolt Holes Diameter of Holes Dia. Hub Base
 SO LTH
 WN LTH
 Bolt Circle
2 0.69 2.44 2.07 2.38 6.00 3.62 4 0.75 3.06 0.94 2.44 4.75
8 1.06 8.72 7.98 8.63 13.50 10.62 8 0.88 9.69 1.69 3.94 11.75
10 1.12 10.88 10.02 10.75 16.00 12.75 12 1.00 12.00 1.88 3.94 14.25
12 1.19 12.88 12.00 12.75 19.00 15.00 12 1.00 14.38 2.12 4.44 17.00
14 1.31 14.14 13.25 14.00 21.00 16.25 12 1.12 15.75 2.19 4.94 18.75
1⁄2 0.38 0.88 0.62 0.84 3.50 1.38 4 0.62 1.19 0.56 1.81 2.38
3⁄4 0.44 1.09 0.82 1.05 3.88 1.69 4 0.62 1.50 0.56 2.00 2.75
1 0.50 1.36 1.05 1.32 4.25 2.00 4 0.62 1.94 0.62 2.12 3.12
11⁄4 0.56 1.70 1.38 1.66 4.62 2.50 4 0.62 2.31 0.75 2.19 3.50
11⁄2 0.62 1.95 1.61 1.90 5.00 2.88 4 0.62 2.56 0.81 2.38 3.88
16 1.38 16.16 15.25 16.00 23.50 18.50 16 1.12 18.00 2.44 4.94 21.25
18 1.50 18.18 17.25 18.00 25.00 21.00 16 1.25 19.88 2.62 5.44 22.75
20 1.62 20.20 19.25 20.00 27.50 23.00 20 1.25 22.00 2.81 5.62 25.00
22 1.75 22.22 21.25 22.00 29.50 25.25 20 1.38 24.25 3.07 5.82 27.25
24 1.81 24.25 23.25 24.00 32.00 27.25 20 1.38 26.12 3.19 5.94 29.50
21⁄2 0.81 2.94 2.47 2.88 7.00 4.12 4 0.75 3.56 1.06 2.69 5.50
3 0.88 3.57 3.07 3.50 7.50 5.00 4 0.75 4.25 1.12 2.69 6.00
31⁄2 0.88 4.07 3.55 4.00 8.50 5.50 8 0.75 4.81 1.19 2.75 7.00
4 0.88 4.57 4.03 4.50 9.00 6.19 8 0.75 5.31 1.25 2.94 7.50
5 0.88 5.66 5.05 5.56 10.00 7.31 8 0.88 6.44 1.38 3.44 8.50
6 0.94 6.72 6.07 6.63 11.00 8.50 8 0.88 7.56 1.50 3.44 9.50

Stainless Steel 317 Nippolet Flanges Size Chart

Nom. Pipe Size o R x T1 Bolt Circle Dia. No.2/Dia. of Holes B3 D L21 L B H B23 r L34
1/2 3.50 1.38 1.19 0.44 2.38 4-0.62 0.90 0.38 1.88 0.62 0.88 0.84 0.62 0.12 0.62
3/4 3.88 1.69 1.50 0.50 2.75 4-0.62 1.11 0.44 2.06 0.62 1.09 1.05 0.82 0.12 0.62
1 4.25 2.00 1.94 0.56 3.12 4-0.62 1.38 0.50 2.19 0.69 1.36 1.32 1.05 0.12 0.69
1-1/4 4.62 2.50 2.31 0.62 3.50 4-0.62 1.72 0.56 2.25 0.81 1.70 1.66 1.38 0.19 0.81
1-1/2 5.00 2.88 2.56 0.68 3.88 4-0.62 1.97 0.62 2.44 0.88 1.95 1.90 1.61 0.25 0.88
2 6.00 3.62 3.06 0.75 4.75 4-0.75 2.46 0.69 2.50 1.00 2.44 2.38 2.07 0.31 1.00
2-1/2 7.00 4.12 3.56 0.88 5.50 4-0.75 2.97 0.75 2.75 1.12 2.94 2.88 2.47 0.31 1.12
3 7.50 5.00 4.25 0.94 6.00 4-0.75 3.60 0.81 2.75 1.19 3.57 3.50 3.07 0.38 1.19
3-1/2 8.50 5.50 4.81 0.94 7.00 8-0.75 4.10 0.88 2.81 1.25 4.07 4.00 3.55 0.38 1.25
4 9.00 6.19 5.31 0.94 7.50 8-0.75 4.60 0.94 3.00 1.31 4.57 4.50 4.03 0.44 1.31
5 10.00 7.31 6.44 0.94 8.50 8-0.88 5.69 0.94 3.50 1.44 5.66 5.56 5.05 0.44 1.44
6 11.00 8.50 7.56 1.00 9.50 8-0.88 6.75 1.06 3.50 1.56 6.72 6.63 6.07 0.50 1.56
8 13.50 10.62 9.69 1.12 11.75 8-0.88 8.75 1.25 4.00 1.75 8.72 8.63 7.98 0.50 1.75
10 16.00 12.75 12.00 1.19 14.25 12-1.00 10.92 1.31 4.00 1.94 10.88 10.75 10.02 0.50 1.94
12 19.00 15.00 14.38 1.25 17.00 12-1.00 12.92 1.56 4.50 2.19 12.88 12.75 12.00 0.50 2.19
14 21.00 16.25 15.75 1.38 18.75 12-1.12 14.18 1.63 5.00 2.25 14.14 14.00 13.25 0.50 3.12
16 23.50 18.50 18.00 1.44 21.25 16-1.12 16.19 1.75 5.00 2.50 16.16 16.00 15.25 0.50 3.44
18 25.00 21.00 19.88 1.56 22.75 16-1.25 18.20 1.94 5.50 2.69 18.18 18.00 17.25 0.50 3.81
20 27.50 23.00 22.00 1.69 25.00 20-1.25 20.25 2.13 5.69 2.88 20.20 20.00 19.25 0.50 4.06
22 29.50 25.25 24.25 1.81 27.25 20-1.38 22.25 2.38 5.88 3.13 22.22 22.00 21.25 0.50 4.25
24 32.00 27.25 26.12 1.88 29.50 20-1.38 24.25 2.50 6.00 3.25 24.25 24.00 23.25 0.50 4.38

ASTM A182 SS F317 Flanges s Weight Chart

Standard Of Flanges Class Of Flanges Diameter Of Bolt Circle Diameter Of Flanges Bolt Hole Diameter Bolts Number Size Of Bolt
ISO 7005 (DIN) Flange PN6 Flanges 55 80 11 4 M10
PN10 Flanges 65 95 14 4 M12
PN16 Flanges 65 95 14 4 M12
PN20 Flanges 60.5 90 16 4 M14
PN25 Flanges 65 95 14 4 M12
PN40 Flanges 65 95 14 4 M12
AS 2129 Flange Table C Flanges 67 95 14 4 13
Table D Flanges 67 95 14 4 13
Table E Flanges 67 95 14 4 13
Table F Flanges 67 95 14 4 13
Table H Flanges 83 114 17 4 16
Table J Flanges 83 114 17 4 16
AS4087 Flanges PN14 Flanges 67 95 14 4 M12
ANSI B16.5 Flanges ANSI 150 Flanges 60 89 16 4 13
ANSI 300 Flanges 67 95 16 4 13
ANSI 600 Flanges 67 95 16 4 13
ANSI 900 Flanges 83 121 22 4 19
ANSI 1500 Flanges 83 121 22 4 19

Stainless Steel 317 RTJ Flange Pressure Rating

Temp. ℃ Pressure rating for B16.47  by class
200 6.9 85.3 128.0 13.8 42.7 56.9
250 6.0 80.9 121.4 12.1 40.5 53.9
150 7.9 91.9 137.8 15.8 45.9 61.2
300 5.1 77.7 116.6 10.2 38.9 51.8
  75 600 900 150 300 400
-29 to 38 10.0 103.4 155.1 20.0 51.7 68.9
50 9.8 103.4 155.1 19.5 51.7 68.9
100 8.8 101.3 152.0 17.7 50.7 67.5

Stainless Steel 317 Pipe Flanges Tolerances

NPS Outside Daimeter Sch 10 Sch 20 Sch 30 STD Wall Outside Daimeter EXT Hvy Outside Daimeter Sch 40 Sch 60 Schedule 80 Schedule 100 Schedule 120 Schedule 140 Schedule 160 XX Hvy
1 ¼ 1.66 0.109 ... ... 0.14 0.191 0.14 ... 0.191 ... ... ... 0.25 0.382
1 ½ 1.9 0.109 ... ... 0.145 0.2 0.145 ... 0.2 ... ... ... 0.281 0.4
½ 0.84 0.083 ... ... 0.109 0.147 0.109 ... 0.147 ... ... ... 0.188 0.294
¾ 1.05 0.083 ... ... 0.113 0.154 0.113 ... 0.154 ... ... ... 0.219 0.308
1 1.315 0.109 ... ... 0.133 0.179 0.133 ... 0.179 ... ... ... 0.25 0.358
2 2.375 0.109 ... ... 0.154 0.218 0.154 ... 0.218 ... ... ... 0.344 0.436
2 ½ 2.875 0.12 ... ... 0.203 0.276 0.203 ... 0.276 ... ... ... 0.375 0.552
6 6.625 0.134 ... ... 0.28 0.432 0.28 ... 0.432 ... 0.562 ... 0.719 0.864
8 8.625 0.148 0.25 0.277 0.322 0.5 0.322 0.406 0.5 0.594 0.719 0.812 0.906 0.875
3 3.5 0.12 ... ... 0.216 0.3 0.216 ... 0.3 ... ... ... 0.438 0.6
3 ½ 4 0.12 ... ... 0.226 0.318 0.226 ... 0.318 ... ... ... ... 0.636
4 4.5 0.12 ... ... 0.237 0.337 0.237 ... 0.337 ... 0.438 ... 0.531 0.674
5 5.563 0.134 ... ... 0.258 0.375 0.258 ... 0.375 ... 0.5 ... 0.625 0.75
14 14 0.25 0.312 0.375 0.375 0.5 0.438 0.594 0.75 0.938 1.094 1.25 1.406 ...
16 16 0.25 0.312 0.375 0.375 0.5 0.5 0.656 0.844 1.031 1.219 1.438 1.594 ...
18 18 0.25 0.312 0.438 0.375 0.5 0.562 0.75 0.938 1.156 1.375 1.562 1.781 ...
20 20 0.25 0.375 0.5 0.375 0.5 0.594 0.812 1.031 1.281 1.5 1.75 1.969 ...
10 10.75 0.165 0.25 0.307 0.365 0.5 0.365 0.5 0.594 0.719 0.844 1 1.125 1
12 12.75 0.18 0.25 0.33 0.375 0.5 0.406 0.562 0.688 0.844 1 1.125 1.312 1
22 22 0.25 ... ... 0.375 0.5 ... ... ... ... .... .... .... ....
40 40 .... .... .... 0.375 0.5 .... .... .... .... .... .... .... ....
42 42 …….. …….. …….. 0.375 0.5 …….. …….. …….. …….. …….. …….. …….. ……..
48 48 …….. …….. …….. 0.375 0.5 …….. …….. …….. …….. …….. …….. …….. ……..
24 24 0.25 0.375 0.562 0.375 0.5 0.688 0.969 1.219 1.531 1.812 2.062 2.344 ....
26 26 .... .... .... 0.375 0.5 .... .... .... .... .... .... .... ....
30 30 0.312 0.5 0.625 0.375 0.5 .... .... .... .... .... .... .... ....
36 36 0.312 0.5 0.625 0.375 0.5 0.75 .... .... .... .... .... .... ....

Equivalent Grades of 317 SS WNRF Flanges

UNS

S31700

JIS

SUS 317

WNR.

1.4449



SS 317 Weld Neck Flange Chemical Composition

SULFER

0.030

PHOSPHORUS

0.045

CARBON

0.08

MANGANESE

2.0

SILICON

1.0

NICKEL

11.00 – 15.00

CHROMIUM

18-20

Iron

57.845 min

Mechanical Properties of SS UNS S31700 Pipe Flanges

ASTM A182 F317 Flanges Manufacturer in China offers remarkable mechanical qualities

Yield Strength (MPA)

Psi – 30000 , MPa – 205

Tensile Strength (MPA)

Psi – 75000 , MPa – 515

Melting Point

1400 °C (2550 °F)



Elongation 2 %

35 %




Physical Properties of UNS S34700 Stainless Steel 317 Flanges

Grade Specific Heat 0-1000C (J/kg.K) Density (kg/m3) Electrical Resistivity (n.m) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C)Thermal Conductivity (W/m.K)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
317 500 8000 720 193 17.2 17.8 18.4 16.2 21.5

Stainless Steel ASTM A182 F317 Flanges Torque Chart

Size in Inches Size in Millimeter
Deeper Than the Bottom of the Serrations, millimeter No Deeper Than the Bottom of the Serrations, millimeter
1 25 1.5 3.0
1 1/4 32 1.5 3.0
1 1/2 40 1.5 3.0
1/2 15 1.5 3.0
3/4 20 1.5 3.0
2 50 1.5 3.0
2 1/2 65 1.5 3.0
3 80 1.5 4.5
3 1/2 90 3.0 6.0
4 100 3.0 6.0
5 125 3.0 6.0
6 150 3.0 6.0
8 200 4.5 8.0
10 250 4.5 8.0
12 300 4.5 8.0
14 350 4.5 8.0
16 400 4.5 10.0
18 450 6.0 12.0
20 500 6.0 12.0
24 600 6.0 12.0

How does Yaye Industrial handle flanges shipment and logistics?

  • Loading and Transporting
  • Unloading and Delivery
  • Planning and Scheduling
