Table of Content
Hastelloy C276 Valve Specification
Hastelloy C276 Valve Sizes
1/2" to 4"
ASTM A494 CW12MW Valve Standards
ANSI , ISO , DIN
ASME , API , MSS , AWWA
Alloy C276 Ball Valves Connection
C276 Hastelloy Globe Valve Pressure Rating
1500 PSI - 15000 PSI
Hastelloy C276 Valves Temperature
-120°C TO 500°C
Types of C276 Hastelloy Globe Valve
ASTM A494 CW12MW Globe Valve Threads
Seal Types of ASTM A494 CW12MW Check Valve
ASTM A494 CW12MW Valve Testing Methods
UNS N10276 Check Valves Media
ASTM A494 CW12MW Gate Valve
Alloy C276 Globe Valve
Hastelloy C276 3Way Check Valve
C276 Hastelloy 3 Piece Design Ball Valve
UNS N10276 Double Flanged Butterfly Valve
ASTM A494 CW12MW Lift Check Valve
Hastelloy C276 Valves
Alloy C276 Wafer Type Butterfly Valve
nickel alloy C276 Butterfly Valves
Thermal Properties of ASTM A494 CW12MW Valve
| Thermal Properties | |||
|---|---|---|---|
| CTE, linear 500°C | 12.8 µm/m-°C | 7.11 µin/in-°F | 24-316°C (75-600°F) |
| CTE, linear 500°C | 13.2 µm/m-°C | 7.33 µin/in-°F | 24-538°C (75-1000°F) |
| CTE, linear 500°C | 13.2 µm/m-°C | 7.33 µin/in-°F | 24-427°C (75-800°F) |
| CTE, linear 20°C | 11.2 µm/m-°C | 6.22 µin/in-°F | 24-93°C (75-200°F) |
| CTE, linear 250°C | 12 µm/m-°C | 6.67 µin/in-°F | 24-204°C (75-400°F) |
| Heat Capacity | 0.427 J/g-°C | 0.102 BTU/lb-°F | RT |
| Thermal Conductivity | 10.2 W/m-K | 70.8 BTU-in/hr-ft²-°F | 38°C |
| Thermal Conductivity | 7.2 W/m-K | 50 BTU-in/hr-ft²-°F | -168°C |
Equivalent Grades Of Hastelloy C276 Valves
UNS
N10276
WNR
2.4819
EN
NiMo16Cr15W
JIS
NW 0276
GOST
ХН65МВУ
Chemical Composition of C276 Hastelloy Globe Valve
Mechanical Properties of Alloy C276 Ball Valves
Yield Strength
Psi – 52,000 , MPa – 355
Melting Point
1370 °C (2500 °F)
Tensile Strength
Psi – 1,15,000 , MPa – 790
Elongation
40 %

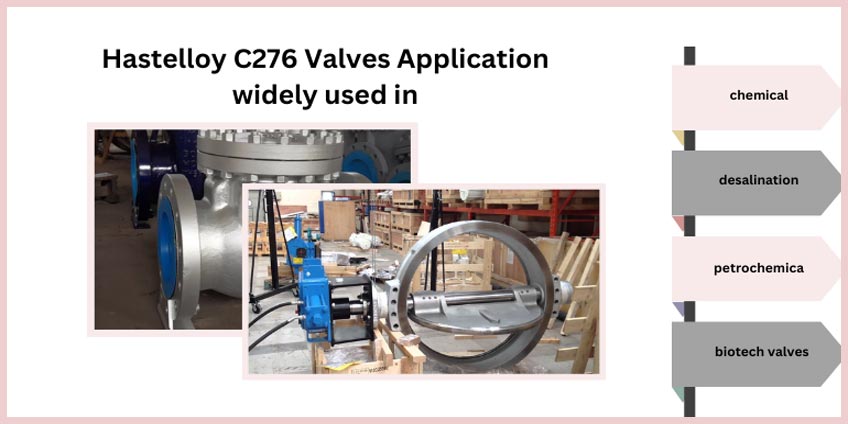

Hastelloy C276 Swing Check Valve Application
Is Hastelloy C276 Valve Magnetic ?
