Ductile Iron Fittings Specification
Types of Ductile Iron Water Fittings
Ductile Fittings Dimensions Chart
Weight chart of Zinc-coated di Elbow
Pressure Ratings of 3 inch ductile iron pipe fittings
Bolts For C153 ductile iron weld fittings
Ductile Iron Pipe Fittings Equivalent
Chemical Composition of Zinc-Coated Di Fittings
Di water pipe fittings Fittings Mechanical Properties
Features of Di pipe fittings
How does Yaye Industrial handle ductile iron fittings shipment and logistics?

Supplier of Ductile Iron Water Fittings With Good Hardness & Check zinc-coated di Elbow Specification & Weight Chart.

Ductile Iron Fittings Specification

Di Pipe Fittings Sizes

Seamless Size : 1/2″ - 10″
Welded Size : 1/2″ - 48″

Ductile Iron Water Fittings Common Thickness

Schedule 10 - XXS

Ductile iron fittings Testing

Mechanical Testing
Chemical Analysis
Hardness Test
PMI Test

Ductile Iron Fittings Standards

ASME B16.28
ASME/ ANSI B16.9

Di fittings Melting Point

1149°C and 1350°C

Di threaded fittings Elbow Density

7.3 grams per cubic centimeter

Di Pipe Fittings Hardness

250 HB

Ductile Iron Water Fittings life

over 100 years

Zinc-coated di Elbow Manufacturing Process

casting
melting
Testing, coating

Ductile iron fittings Types Of Coating

Zinc coatings
Anti rust
Back painting
PE/ PTFE/ FBE coating

Ductile iron coupling Origins

China
Germany
Qatar
Indonesia, India

Types of C153 ductile iron fittings

Pipe cross
Pipe bend
Elbow, Tee, Stub end
Reducer,End cap

Di flanged pipe Fittings Applications

wastewater
water supply
Power generation
Chemical processing

Ductile iron material Documentation

Heat treatment charts
Fumigation certificates
Raw material test reports
Material traceability records

Zinc-coated di Method Of Pipe Bending

Outer diameter
Inner diameter
Thickness, Length
Straightness, Ovality

Ductile iron tee Disadvantages

Corrosion susceptibility
Limited flexibility
Heavy weight

Ductile iron pipe Packaging

Wooden Box
Bundled
Bubble Wraps

3 ductile iron pipe fittings Advantages

High strength
Corrosion resistance
Lower costs/li>

4 ductile iron pipe fittings Fittings Process

Bevelled End (BE)
Threaded End (TE)
Plain End (PE)

Methods of 6 ductile iron fittings

Seamless
Buttweld
Welded

Types of Ductile Iron Water Fittings

Ductile Iron Fittings Supplier in China offers a variety of the most popular types.

Di Pipe Fittings Buttweld Fittings

Ductile iron fittings Welded Fittings

Ductile iron plain-end Seamless Fittings

Zinc-coated di Elbow

Ductile Iron tee

Di Pipe Fittings Reducer

6 inch ductile iron pipe fittings Concentric Reducer

3 inch ductile iron pipe fittings End Cap

4 ductile iron pipe Bend

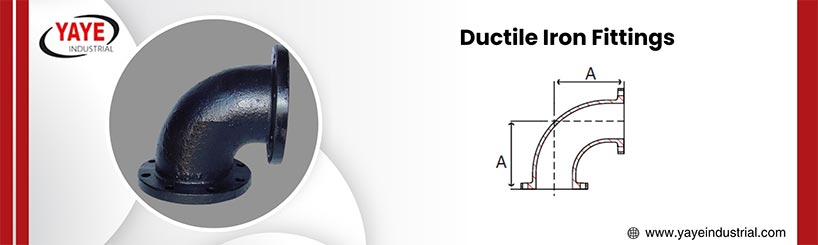

Ductile Fittings Dimensions Chart

Ductile Iron Fittings Manufacturer in China offers a wide Range of Dimensions

Dimensions In MM

NPS IN Inch
NPS IN Inch	T	T1	A
6 x 5	14.224	12.7	203.2	27.2155
8 x 415.748	12.7	228.6	34.0194
8 x 5	15.748	12.7	228.6	37.1946
4 x 3	.12.7	9.398	165.1	15.8757
5 x 4	12.7	12.7	190.5	21.7724
6 x 4	14.224	12.7	203.2	24.9476
8 x 6	15.748	14.224	228.6	40.8233
10 x 4	19.05	12.7	279.4	47.6272
10 x 5	19.05	12.7	279.4	52.1631
10 x 6	19.05	14.224	279.4	56.699
10 x 8	19.05	15.748	279.4	68.0389
12 x 6	20.574	14.224	304.8	74.8427
14 x 6	20.574	14.224	355.6	104.326
14 x 8	20.574	15.748	355.6	108.862
14 x 10	22.098	19.05	355.6	127.006
12 x 8	20.574	15.748	304.8	86.1826
12 x 10	20.574	19.05	304.8	99.7903

Weight chart of Zinc-coated di Elbow

NPS In Inch	Weight In KG
3 x 312.7006
4 x 4	22.6796
5 x 5	28.1227
5 x 4	27.2155
6 x 6	36.2874
6 x 4	31.7515
6 x 5	34.0194
8 x 4	45.3592
8 x 5	49.8952
8 x 6	54.4311
8 x 8	63.5029
10 x 4	65.7709
10 x 6	77.1107
10 x 8	88.4505
l0 x l0	104.326
12 x 6	102.058
12 x 8	117.934
12 x 10	136.078
12 x 12	147.418
14 x 8	149.685
14 x 10	170.0971
14 x 12	192.7768
14 x 14	215.4564
16 x 14	267.6195
16 x 16	285.7632
16 x 8	190.5088
16 x 10	217.7243
16 x 12	240.404
18 x 12	288.0312
18 x14	217.7243
18 x16	351.5341
18 x 18	381.018
20 x 14	371.9457
20 x 16	415.037
20 x 20	489.87976
24 x 20	648.63709
24 x 24	743.89149
24 x 14	580.59823
24 x 16	589.6701
24 x 18	619.1536

Pressure Ratings of 3 inch ductile iron pipe fittings

DN	Di Fittings
700 ~ 1200	10
1400 ~ 2000	10
(Nominal size) mm	bar
80 ~ 300	25
350 ~ 600	16

Bolts For C153 ductile iron weld fittings

DN (In Inches)	PN 10
DN (In Inches)	Number Of Bolts	Size Of Bolts
9.84	12	M 20 x 80
11.81	12	M 20 x 90
13.77	16	M 20 x 90
15.74	16	M 24 x 90
3.93	8	M16 x 70
5.90	8	M 20 x 80
7.87	8	M 20 x 80
17.71	20	M 24 x 90
43.30	28	M 33 x 180
47.24	32	M 36 x 180
19.68	20	M 24 x 100
23.62	20	M 27 x 100
27.55	24	M 27 x 110
39.37	28	M 33 x 130
31.49	24	M 30 x 120
35.43	28	M 30 x 120
