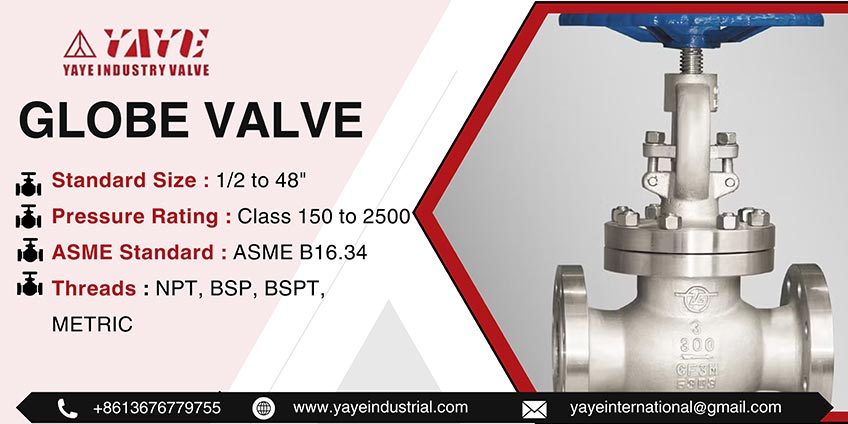

Globe Valve Manufacturer in China | Bellow Seal Globe Valve

Bellow Seal Globe Valve Manufacturer in China, Available in Various Dimensions

Table of Content

Globe Valve Specification
Types of Globe Valves
Yield and Tensile Strength Of Pressure Seal Globe Valve
Class 300 Regulating Globe Valve Dimension Chart
Class 900 Bellow Seal Globe Valve Dimension Chart
Applications Of Pressure Seal Globe Valve
How To Choose Best Globe Valve From Yaye Industrial ?

Steam globe valve Size Ranginf From 12" to 48" , Check Specification

Globe Valve Specification

Bellow Seal Globe Valve Sizes

1/2 to 48"

Steam globe valve Standards

ASME B16.34

ASME B16.10

Pressure Seal Globe Valve End Connection

Buttweld
Threaded
Socket weld
Flanged

API 600 Globe Valve Pressure Rating

class 150 to 3000

Cryogenic Globe Valve Benefits

Throttling Capabilities
Easy Machining
Low Leaks
Easy Automations

Pneumatic Globe Valve Testing Methods

Shell Testing
PMI Testing
Hydrostatic Testing
Mechanical Testing

Class 800 Globe Valve Valves Disadvantages

Regulation Performance
Resistance to Flow
Maintainance
Greater Force For Valve

Threads of Hydraulic Globe Valve

Metric
BSPT
NPT
BSP

Regulating Globe Valve Temperature

-29°C to 425°C

Types of Globe Valves

Hydraulic Globe Valve
Pneumatic Globe Valve
Regulating Globe Valve
Forged Globe Valves

Types of Globe Valves

Angle Globe Valves

Screw Down Non Return Globe Valve

Bellow Seal Globe Valve

Pressure Seal Globe Valve

API 600 Globe Valve

Cryogenic Globe Valve

Pneumatic Globe Valve

Forged Globe Valves

Hydraulic Globe Valve

Get Pressure Seal Globe Valve With Outstanding Strength Forgings and Excellent Castings

Yield and Tensile Strength Of Pressure Seal Globe Valve

Tensile Strength	485 MPa
Yield Strength	275 MPa

Get API 600 Globe Valve With NPT, BSP, JIC Thread Types , Check Dimension Chart

Class 300 Regulating Globe Valve Dimension Chart

Sizes	W	H (Open)	L / L1
3″	13 (330)	16-1/2 (419)	12-1/2 (318)
2″	9 (229)	13-3/8 (340)	10-1/2 (267)
4″	14 (356)	19-3/8 (492)	14 (356)
2-1/2″	9 (229)	15-3/8 (390)	11-1/2 (292)
5″	15-3/4 (400)	21-1/2 (546)	15-3/4 (400)
8″	22 (559)	31-1/4 (794)	22 (559)
6″	17-3/4 (451)	24-3/8 (619)	17-1/2 (445)
12″	34 (864)	49 (1245)	28 (711)
10″	34 (864)	45 (1143)	24-1/2 (622)

Class 900 Bellow Seal Globe Valve Dimension Chart

Sizes	W	H (Open)	L / L1
3″	14 (356)	22-3/4 (578)	15 (381)
6″	20 (508)	36 (914)	24 (610)
4″	21-1/2 (546)	26-1/2 (673)	18 (457)
2″	12 (305)	20-1/2 (521)	14-1/2 (368)
8″	24 (610)	37 (940)	29 (737)

Get Cryogenic Globe Valve With Temperature of usage below -150°C, Check Applications

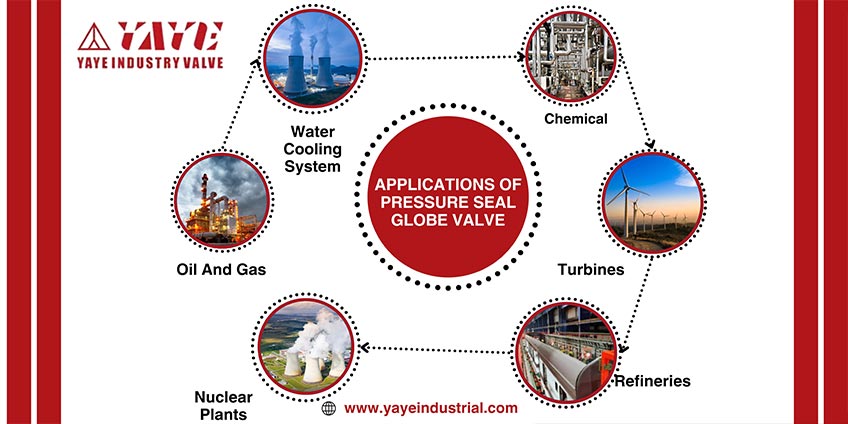

Applications Of Pressure Seal Globe Valve

How To Choose Best Globe Valve From Yaye Industrial ?

Points To Cosider While Choosing Valve :

Size Consideration
Globe Valve Standards
Installation Process
Maintainance & Troubleshootings
Applications
