Mild Steel Pipes Manufacturer in China

Home|Mild Steel Pipes

Top Ms Tube Supplier in China, At Most Affordable Price

Mild Steel Pipe

Find the Most Popular Black Mild Steel Pipe & MS Round Tubes trader in Wenzhou,check Specification & Its various types

Mild Steel Pipes Specification

End Types

mild steel pipe End Types

  • Bevelled
  • Plain
Features

Features of mild steel Pipe

  • Strong hardness
  • Corrosion resistance
  • High temperature resistance
  • Superior impact resistance
pipe size icon

Black Mild Steel Pipe Sizes

  • 15 to 900 NB
welded pipe size icon

Mild steel round Welded Pipe Sizes

  • OD: 21.3 to 762 mm
pipe manufacturing process

Mild Pipe Round Pipe Manufacturing Process

  • Steel pipe rolling
  • Heat treatment
  • Welding
Pipe Surface Finish

mild steel Surface Finish

  • Bright
  • Pickled
  • Annealing
  • Polished
Pipe Testing

MS exhaust pipe Testing

  • Radiography
  • Ultrasonic
  • Surface Roughness
  • Intergranular Corrosion
Standards

Mild steel pipes ERW Pipe Standards

  • ASTM , EN
  • GB, ASME
  • DIN, SAE , JIS
Applications

MS Pipe Applications

  • Construction
  • Marine
  • Plumbing
  • Railings
Documentation

mild steel water pipe Documentation

  • Manufacturer Test Certificate
  • Laboratory Test Report from Government
Origins

SS Smls Pipe Origins

  • Russia
  • China
  • Janpanese
  • American
pipe Types

Types of mild steel pipe

  • Round
  • Square
  • Hex
  • Rectangle
Packaging

Mild Pipe Stainless Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
Advantages

mild steel pipe Advantages

  • Low Cost
  • Increased Strength
  • Increased Corrosion Resistance
  • Good Weldability
Measurement

Measurement of mild steel pipes

  • Outer diameter
  • Inner diameter
  • Thickness, Length
  • Straightness, Ovality
Disadvantages

Mild steel pipe Disadvantages

  • Limited Heat Resistance
  • Expensive
  • Low Tensile Strength
  • Aesthetic Limitations

Types of Mild Steel Pipe


Mild Steel Pipe Supplier in China Provides a Wide Variety of Regularly Used Pipe Types.


MS Seamless Pipe

MS Seamless Pipe

Mild Steel Welded Pipe

Mild Steel Welded Pipe

MS Flexible Pipe

MS Flexible Pipe

Mild Steel Square Pipe

Mild Steel Square Pipe

MS Rectangular Pipe

MS Rectangular Pipe

MS Round Pipe

MS Round Pipe

Mild Steel ERW Pipe

Mild Steel ERW Pipe

Mild Steel Pipe

Mild Steel Pipe

Hot Rolled Mild steel Pipe

Hot Rolled Mild steel Pipe

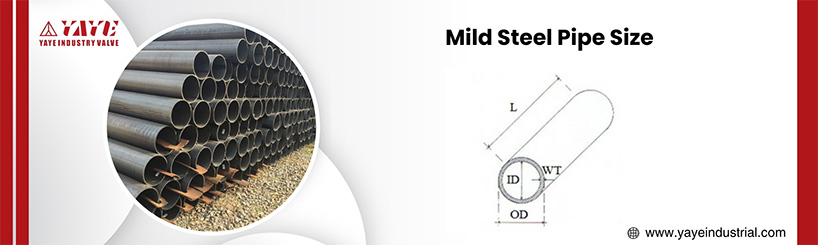

Mild Steel Pipe Size Chart

Mild Steel Pipe Manufacturer in China Offers a Wide Range of Size

Mild Steel Pipe Size Chart

Nominal Bore Medium (B-Class) Thickness Weight Light (A-Class) Thickness Weight Outside Diameter Heavy (C-Class) Thickness Weight
1/2" 15 mm 2.65 1.122 2.00 0.952 0.844 21.43 3.25 1.45
3/4" 20 mm 2.65 1.580 2.35 1.410 1.094 27.20 3.25 1.90
1" 25 mm 3.25 2.440 2.65 2.010 1.312 33.80 4.05 2.97
1 1/4" 32 mm 3.25 3.140 2.65 2.580 1.656 42.90 4.05 3.84
1/8" 3 mm 2.00 0.407 1.80 0.361 0.406 10.32 2.65 0.493
1/4" 6 mm 2.35 0.650 1.80 0.517 0.532 13.49 2.90 0.769
3/8" 10 mm 2.35 0.852 1.80 0.674 0.872 17.10 2.90 1.02
1 1/2" 40 mm 3.25 3.610 2.90 3.250 1.906 48.40 4.05 4.43
4" 100 mm 4.50 12.10 3.05 9.980 4.500 114.30 5.40 14.4
5" 125 mm 4.85 16.20 - - 5.500 139.70 5.40 17.8
6" 150 mm 4.85 19.20 - - 6.500 165.10 5.40 21.2
2" 50 mm 3.65 5.100 2.90 4.110 2.375 60.30 4.47 6.17
2 1/2" 65 mm 3.65 6.610 3.25 5.840 3.004 76.20 4.47 7.90
3" 80 mm 4.05 8.470 3.25 6.810 3.500 88.90 4.85 10.1

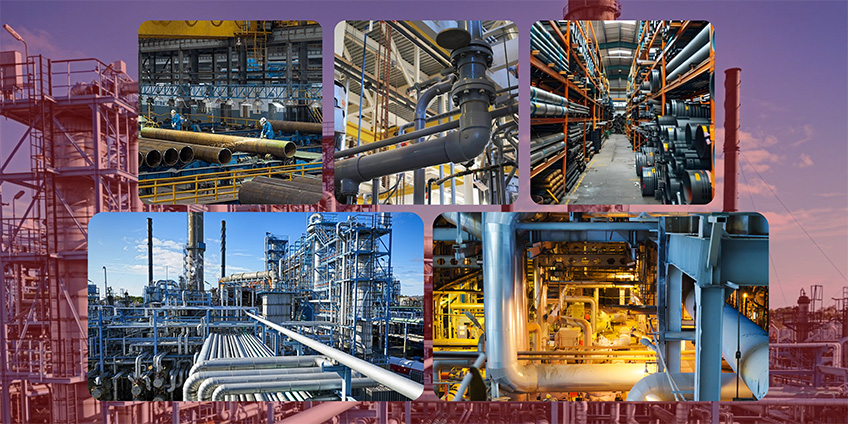

Applications Of Mild Steel Pipe

Applications Of Mild Steel Pipe

Applications

  • Exposed environments
  • Plumbing
  • Fencing
  • Construction
  • Railings
  • Marine environments
  • Ballards
  • Exposed environments




Pressure Rating Chart of Seamless MS Pipe

Maximum Allowable Pressure (psig)
Pipe Size
(inches) 		Pipe Schedule Temperature (oF)
700 750 100 400 500 200 300 600 650
1/2 Inch 401 3581 3233 3730 3730 3730 3730 3730 3730 3730
802 5042 4552 5252 5252 5252 5252 5252 5252 5252
160 6643 5997 6920 6920 6920 6920 6920 6920 6920
3/4 Inch 40 2937 2651 2447 3059 3059 3059 3059 3059 3059
80 4127 3725 4299 4299 4299 4299 4299 4299 4299
160 6137 5541 6393 6393 6393 6393 6393 6393 6393
1 Inch 40 2743 2476 2857 2857 2857 2857 2857 2857 2857
80 3792 3423 3950 3950 3950 3950 3950 3950 3950
160 5526 4989 5757 5757 5757 5757 5757 5757 5757
1 1/2 Inch 40 2032 1834 2116 2116 2116 2116 2116 2116 2116
80 2864 2585 2983 2983 2983 2983 2983 2983 2983
160 4157 3753 4331 4331 4331 4331 4331 4331 4331
2 Inch 40 1712 1545 1783 1783 1783 1783 1783 1783 1783
80 2472 2232 2575 2575 2575 2575 2575 2575 2575
160 4049 3655 4217 4217 4217 4217 4217 4217 4217
3 Inch 40 1625 1467 1693 1693 1693 1693 1693 1693 1693
80 2298 2074 2394 2394 2394 2394 2394 2394 2394
160 3456 3120 3600 3600 3600 3600 3600 3600 3600
4 Inch 40 1378 1244 1435 1435 1435 1435 1435 1435 1435
80 1992 1798 2075 2075 2075 2075 2075 2075 2075
160 3241 2926 3376 3376 3376 3376 3376 3376 3376
5 Inch 40 1208 1090 1258 1258 1258 1258 1258 1258 1258
80 1783 1610 1857 1857 1857 1857 1857 1857 1857
160 3073 2774 3201 3201 3201 3201 3201 3201 3201
6 Inch 40 1098 991 1143 1143 1143 1143 1143 1143 1143
80 1722 1554 1794 1794 1794 1794 1794 1794 1794
160 2960 2672 3083 3083 3083 3083 3083 3083 3083
8 Inch 40 966 872 1006 1006 1006 1006 1006 1006 1006
80 1523 1375 1586 1586 1586 1586 1586 1586 1586
160 2857 2579 2976 2976 2976 2976 2976 2976 2976
10 Inch 40 876 791 913 913 913 913 913 913 913
80 1448 1308 1509 1509 1509 1509 1509 1509 1509
160 2832 2557 2950 2950 2950 2950 2950 2950 2950
12 Inch 40 819 741 855 855 855 855 855 855 855

Mild Steel Pipe Mechanical Properties

Mechanical Property Value
Shear Strength -
Proof Stress 0.2% -
Elongation (in 200mm) 20% minimum
Form Types
Hardness 105 Vickers - HV
Tensile Strength 485 N/mm²
Yield Strength 345 N/mm²
Square Seamless
Round Welded
Rectangle ERW

Mild Steel Pipe Chemical Composition

Alumininum Cromium Iron Copper Manganese Silicon Sulphur
0.015 - 0.06 0.5 - 1.25 Balance 0.25 - 0.55 0.2 - 0.5 0.25 - 0.75 0.03 max

Mild Steel Pipe Hs Code

Product HS Code
Mild steel Pipe 73069090

MS Pipe Difference Between

MS Pipe Difference Between
Carbon Steel Mild Steel
Carbon Content Medium to Ultra-High Carbon Content Low
Corrosion resistance Poor Corrosion resistance Poor
Ductility Moderate – Low Ductility High
Cost Slightly higher per weight Cost Inexpensive


How does Yaye Industrial handle large-scale orders?

  • Improved Customer Experience
  • Expansion Opportunities
  • Investment Attractability
  • Enhancing Market Share and Competitivenes
