Carbon Steel Valve Manufacturer in China

Top Manufacturer of Carbon Steel Ball Valve in China

Table of Content

Carbon Steel Valve Specification
Types of Carbon Steel Valves
Class 150 Low Carbon Steel Swing Check Valve Dimesion Chart
Class 300 High Carbon Steel Swing Check Valve Dimesion Chart
Mechanical Properties of Carbon Steel Flanged Ball Valve
Chemical Composition of Low Carbon Steel Butterfly Valves
Equivalent Grade of CS Pressure Seal Check Valve
Difference Between Carbon Steel Gate Valves And Ball Valves
How do Yaye Industrial Carbon Steel Valves Save Money in the Long Run Than Others in Wenzhou, Beijing, Wuhan?

Verified Supplier CS Gate Valve & High Carbon Steel Butterfly Valve in China, Refer Specification

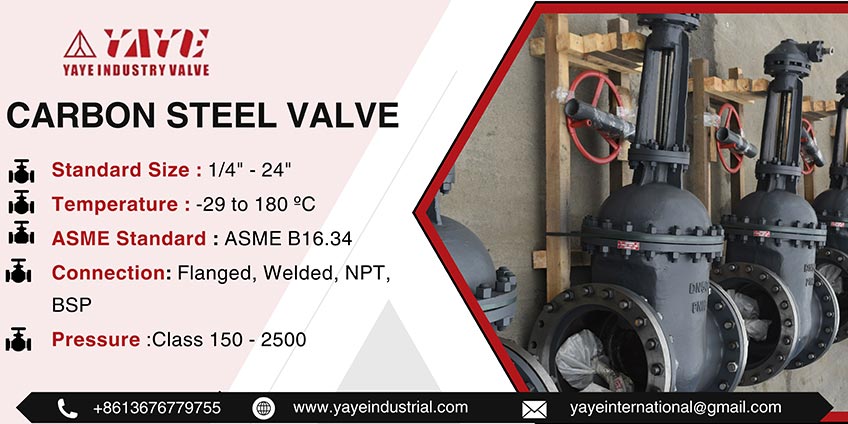

Carbon Steel Valve Specification

Carbon Steel Ball Valve Sizes

1/4" to 24"

Types of CS Gate Valve

Plug valves
Needle valves
Reducing Valves
Gate Valves

High Carbon Steel Swing Check Valve Features

Low Cost
Durability
Corrosion Resistant
Strength

Low Carbon Steel Ball Valve Operation

Pneumatic
Manual
Electric

High Carbon Steel Butterfly Valve Temperature

-29 to 180°C

Connection of CS Swing Check Valve

Flanged
BSPT, NPT
BSP
Welded

Carbon Steel Needle Valve Standards

ASME B16.34

Low Carbon Steel Double Regulating Valves Media

Power Plants
Paper Industry
Gas Processing/li>
Pharmaceuticals
Chemicals

CS Globe Valve Pressure Rating

Class 150 to 2500

Carbon Steel Ball Valve End Connection

Socket weld
Flanged
Buttweld
Threaded

Types of Carbon Steel Valves

Low Carbon Steel Flanged Ball Valve

Carbon Steel Swing Check Valves

Low Carbon Steel Cryogenic Globe Valve

High Carbon Steel Butterfly Valve

Low Carbon Steel Gate Valves

Carbon Steel Ball Valve

CS Globe Valve

Low Carbon Steel Bellow Seal Gate Valve

High Carbon Steel Needle Valve

Class 150 Low Carbon Steel Swing Check Valve Dimesion Chart

N.Bore		L		F		H		T
2½	65	8½	216	7	178	6½	165	11/16	17
2	50	8	203	6	152	51/8	130	5/8	16
3	80	9½	241	7½	191	6½	165	¾	19
10	250	24½	623	16	406	13	330	13/16	30
6	150	14	355	11	279	9¼	235	1	25
4	100	11½	292	9	229	81/8	206	15/16	23
8	200	19½	495	13½	343	107/8	176	11/8	29
12	300	27½	699	19	483	151/8	384	1¼	32

Class 300 High Carbon Steel Swing Check Valve Dimesion Chart

N.Bore		L		F		H		T
2½	65	11½	292	7½	191	6¾	171	1	25
2	50	10½	367	6½	165	61/8	155	7/8	22
4	100	14	356	10	254	8¾	213	1¼	32
3	80	12½	318	8¼	210	6¾	171	11/8	29
6	150	17½	445	12¼	318	9½	241	17/16	36
10	250	24½	623	17½	445	13¼	337	17/8	48
8	200	21	533	15	381	111/8	282	15/8	41
12	300	28	712	20½	521	153/8	390	2	51

Mechanical Properties of Carbon Steel Flanged Ball Valve

Elongation

30 %

Yield Strength

250 MPa

Tensile Strength

485 MPa

Desnsity

7.75 g/cm3

Chemical Composition of Low Carbon Steel Butterfly Valves

Copper(Cu)

0.04

Molybdenum (Mo)

0.12

Manganese(Mn)

0.60-1.35

Sulphur(S)

0.040

Chromium(Cr)

0.30

Phosphorous(P)

0.035

Equivalent Grade of CS Pressure Seal Check Valve

UNS

K03504

WERKSTOFF NR

1.0460

Difference Between Carbon Steel Gate Valves And Ball Valves

Gate Valve	Ball Valves
Larger Flow Capacity	Less Compared to gate Valves
Provide Tighter Sealing	Less Tighter
Open by lifting a round or rectangular gate	Have a stem and a ball that turn horizontally
Better Suited For High Pressure Environment	Generally less suitable

How do Yaye Industrial Carbon Steel Valves Save Money in the Long Run Than Others in Wenzhou, Beijing, Wuhan?

Low Maintainance
Good Quality Material Used
Durable Material
