ASTM A182 F22 Flanges

Home|ASTM A182 F22 Flanges

Verified Manufacturer of Alloy Steel A182 F22 Flanges in China

ASTM A182 F22 Flanges

Table of Content

Flanges-table

Supplier of SA182 Gr F22 Class 3 and 1 Pipe Flange with Different Production Process & Refer F22 Chrome Moly Pipe Flanges Specification


Alloy Steel A182 F22 Flanges Specification

Flange Sizes

SA182 Gr F22 Class 3 and 1 Pipe Flange Sizes

  • 1/2″ to 48″
  • 15NB – 1200NB
  • PN 2.5 – PN 400
Flange Standards

F22 Chrome Moly Pipe Flanges Standards

  • ASME B16.47, ASME B16.5
  • ASME B16.48 , ASME B16.36
Flange Schedule

ASTM A182 F22 Class 3 Blind Flange Schedule

  • SCH 10/ 20/ 40
  • SCH 60/ 80/ 100
  • SCH 120/ 140
  • SCH 160/ XXS
Pressure Types

UNS K21590 Flange Pressure Types

  • 150# To 300#
  • 600# To 900#
  • 1500# To 2500#
Testing Methods

Alloy Steel F22 Pipe Flanges Testing Methods

  • Impact test
  • Hardness test
  • Third party inspection
  • PMI
Features

Alloy Steel Flange Features

  • Light weight
  • Good Mechanical Properties
  • High tensile strength
Flange Threads

ANSI Alloy F22 Flanges Threads

  • FNPT
  • BSPP
  • BSPT
  • NPT, MNPT
Flanges Process

Stainless Steel 904l flanges Process

  • Cutting
  • Casting
  • Rolling
  • Forging
flange Face

Astm A182 F22 Flanges Face

  • RTJ
  • FF
  • RF
  • T&G
Origin

Chrome Moly F22 Pipe Flanges Origin

  • Italy
  • Indian
  • Kenya
  • China
Advantages

Astm A182 Weld Neck Flange Advantages

  • Excellent Corrosion Resistance
  • Good Weldability
  • Good Toughness
Disadvantages

Alloy Steel F22 Flanges Disadvantages

  • Corrosion
  • Flexibility
  • High Cost
Certificates

Certificates of ANSI B16.5 Alloy Steel F22 Flanges

  • MTC BS EN 10204 3.1/ 3.2
  • 100% Radiography Test
  • Third Party Inspection
  • EN 10204 3.1 Certificate
Density & Temperature

Alloy Steel F22 Flange Density & Temperature

  • Density : 7.8 – 7.9 g/cm³
  • Melting Point : 1400 – 1455
  • Temprature : 23.0 °C

Types of UNS K21590 flange

ASTM A182 F22 Flanges Supplier in China lists few of the more prevalent types



Alloy Steel A182 F22 flange

Alloy Steel A182 F22 flange

Alloy Steel F22 Slip On Flanges

Alloy Steel F22 Slip On Flanges

Astm A182 F22 Plate Flanges

Astm A182 F22 Plate Flanges

Chrome Moly F22 Pipe Socket Weld Flange

Chrome Moly F22 Pipe Socket Weld Flange

UNS K21590 Lap Joint Flange

UNS K21590 Lap Joint Flange

Astm A182 F22 Weld Neck Flange

Astm A182 F22 Weld Neck Flange

Alloy Steel Grade F22 Spectacle Blind Flanges

Alloy Steel Grade F22 Spectacle Blind Flanges

ASTM A182 Chrome Moly F22 Threaded Flanges

ASTM A182 Chrome Moly F22 Threaded Flanges

ANSI B16.5 Alloy Steel F22 Orifice Flanges

ANSI B16.5 Alloy Steel F22 Orifice Flanges

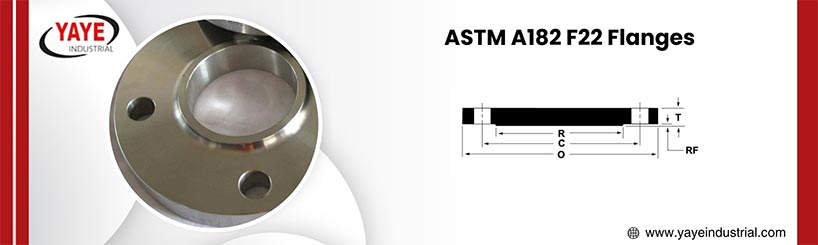

ASTM A182 F22 alloy steel flange Dimensions

ASTM A182 F22 alloy steel flange Dimensions
NPS No./Dia. of Holes Bolt
Circle Dia.		 O T R X L2 H B2 L B r L3 B3 D
1-1/4 4-0.62 3.5 4.62 0.62 2.5 2.31 2.25 1.66 1.38 0.81 1.7 0.19 0.81 1.72 0.56
1-1/2 4-0.62 3.88 5 0.68 2.88 2.56 2.44 1.9 1.61 0.88 1.95 0.25 0.88 1.97 0.62
1/2 4-0.62 2.38 3.5 0.44 1.38 1.19 1.88 0.84 0.62 0.62 0.88 0.12 0.62 0.9 0.38
3/4 4-0.62 2.75 3.88 0.5 1.69 1.5 2.06 1.05 0.82 0.62 1.09 0.12 0.62 1.11 0.44
1 4-0.62 3.12 4.25 0.56 2 1.94 2.19 1.32 1.05 0.69 1.36 0.12 0.69 1.38 0.5
2 4-0.75 4.75 6 0.75 3.62 3.06 2.5 2.38 2.07 1 2.44 0.31 1 2.46 0.69
2-1/2 4-0.75 5.5 7 0.88 4.12 3.56 2.75 2.88 2.47 1.12 2.94 0.31 1.12 2.97 0.75
5 8-0.88 8.5 10 0.94 7.31 6.44 3.5 5.56 5.05 1.44 5.66 0.44 1.44 5.69 0.94
6 8-0.88 9.5 11 1 8.5 7.56 3.5 6.63 6.07 1.56 6.72 0.5 1.56 6.75 1.06
8 8-0.88 11.75 13.5 1.12 10.62 9.69 4 8.63 7.98 1.75 8.72 0.5 1.75 8.75 1.25
3 4-0.75 6 7.5 0.94 5 4.25 2.75 3.5 3.07 1.19 3.57 0.38 1.19 3.6 0.81
3-1/2 8-0.75 7 8.5 0.94 5.5 4.81 2.81 4 3.55 1.25 4.07 0.38 1.25 4.1 0.88
4 8-0.75 7.5 9 0.94 6.19 5.31 3 4.5 4.03 1.31 4.57 0.44 1.31 4.6 0.94
10 12-1.00 14.25 16 1.19 12.75 12 4 10.75 10.02 1.94 10.88 0.5 1.94 10.92 1.31
12 12-1.00 17 19 1.25 15 14.38 4.5 12.75 12 2.19 12.88 0.5 2.19 12.92 1.56
20 20-1.25 25 27.5 1.69 23 22 5.69 20 19.25 2.88 20.2 0.5 4.06 20.25 2.13
22 20-1.38 27.25 29.5 1.81 25.25 24.25 5.88 22 21.25 3.13 22.22 0.5 4.25 22.25 2.38
24 20-1.38 29.5 32 1.88 27.25 26.12 6 24 23.25 3.25 24.25 0.5 4.38 24.25 2.5
14 12-1.12 18.75 21 1.38 16.25 15.75 5 14 13.25 2.25 14.14 0.5 3.12 14.18 1.63
16 16-1.12 21.25 23.5 1.44 18.5 18 5 16 15.25 2.5 16.16 0.5 3.44 16.19 1.75
18 16-1.25 22.75 25 1.56 21 19.88 5.5 18 17.25 2.69 18.18 0.5 3.81 18.2 1.94

SA 182 F22 Size Chart

Products Size
ASTM A182 Alloy Steel F22 Lap Joint Flanges ASTM A182 Alloy Steel F22 Plate Flanges Sizes 1/8″ – 36″ Raised Face or Flat Face
ASTM A182 Alloy Steel F22 Orifice Flanges ASTM A182 Alloy Steel F22 Forged Flanges
ASTM A182 Alloy Steel F22 Slip-On Flanges ASTM A182 Alloy Steel F22 Threaded Flanges
ASTM A182 Alloy Steel F22 Ring Type Joint Flanges ASTM A182 Alloy Steel F22 Square Flanges
ASTM A182 Alloy Steel F22 Weld Neck Flanges ASTM A182 Alloy Steel F22 Socket Weld Flanges
ASTM A182 Alloy Steel F22 Blind Flanges ASTM A182 Alloy Steel F22 Reducing Flanges

ANSI Alloy F22 Flanges Weight Chart

CLASS Nominal Pipe Size Threaded Weld Neck Socket Weld Lap Joint Blind
600 lb ½ 2 3 2 2 3
¾ 3 4 4 4 4
1 4 5 4 4 5
1½ 5 6 5 5 6
2 9 12 9 10 12
2½ 13 18 12 15 18
3 16 23 15 20 23
3½ 21 26 20 29 26
4 37 42 36 41 42
5 63 68 68
6 80 78 86 81
8 115 112 140
10 177 195 231 190
12 215 290 295 226
14 259 378 347
16 366 400 527 481
18 476 469 665 555
20 612 604 855 690
22 590 670 1000 720
24 876 876 866 1250 977

SA 182 gr F22 flanges Pressure Rating

Temp.°F 75# PSIG 150# PSIG 300# PSIG 400# PSIG
600 70 140 605 805
650 60 125 590 785
700 – 110 570 755
750 – 95 530 710
800 – 80 510 675
-20~100 145 290 750 1000
200 130 260 750 1000
300 115 230 720 965
400 100 200 695 925
500 85 170 665 885
1050 – – 145 190
1100 – – 95 130
1150 – – 65 85
1200 – – 40 55
850 – 65 485 650
900 – 50 450 600
950 – 35 320 425
1000 – 20 215 290
Temp.°F 600# PSIG 900# PSIG 1500# PSIG 2500# PSIG
600 1210 1815 3025 5040
650 1175 1765 2940 4905
700 1135 1705 2840 4730
750 1065 1595 2660 4430
800 1015 1525 2540 4230
-20~100 1500 2250 3750 6250
200 1500 2250 3750 6250
1050 290 430 720 1200
1100 190 290 480 800
1150 130 195 325 545
1200 80 125 205 345
300 1445 2165 3610 6015
400 1385 2080 3465 5775
500 1330 1995 3325 5540
850 975 1460 2435 4060
900 900 1350 2245 3745
950 640 955 1595 2655
1000 430 650 1080 1800

Alloy Steel F22 RTJ Flange Tolerances

ASTM A182 F22 Flanges Tolerance Table
Drilling
  • Circle Bolts: ±1/16"
  • Bolts hole spacing: ±1/32"
Thickness
  • 18" and smaller: ±1/8" , -0"
  • 20" and larger: ±3/16", -0"
Length of hub
  • 10" and smaller: ±1/16"
  • 12" and larger: ±1/8"
O.D.
  • When O.D. is 24" or less: ±1/16"
  • When O.D. is over 24": ±1/8"
I.D.
  • 10" and smaller: ±1/32"
  • 12" thru 18": +1/8"
  • 20" and larger: -1/16"
Diameter of contact face
  • 1/16" raised face: ±1/32"
  • 1/4" RF , T/G,,: ±1/64"
Diameter of hub at base
  • When hub base is 24" or smaller: ±1/16"
  • When hub base is over 24": ±1/8"
Diameter of hub at point of welding
  • 5" and smaller: +3/32", -1/32"
  • 6" and larger: +5/32" , -1/32

Equivalent Grades of F22 Alloy Steel WNRF Flanges

UNS

K21590

DIN

10CRM0910

WNR.

1.7380



ANSI Alloy F22 Flanges Chemical Composition

SULFER

0.040

PHOSPHORUS

0.040

CARBON

.05-0.15

MANGANESE

0.30-0.60

SILICON

0.50

Molybdenum

0.87-1.13

CHROMIUM

2.00-2.50

Mechanical Properties of Alloy Steel F22 Nippo Flanges

ASTM A182 F22 Flanges Manufacturer in China has remarkable mechanical qualities

Yield Strength (MPA)

MPa – 205

Tensile Strength (MPA)

MPa – 415

Elongation 2 %

20 %


Hardness

170 max




Gasket Chart of Alloy Steel F22 Spacer Flanges

NPS Gasket I.D.
Gasket O.D.
150 LB 300 LB 400 LB 600 LB 900 LB
1 1.31 2.625 2.875 2.875 2.875 3.125
1 1/4 1.66 3 3.25 3.25 3.25 3.50
1 1/2 1.91 3.375 3.75 3.75 3.75 3.875
1/2 0.84 1.875 2.125 2.125 2.125 2.50
3/4 1.06 2.25 2.625 2.625 2.625 2.75
2 2.38 4.125 4.375 4.375 4.375 5.625
2 1/2 2.88 4.875 5.125 5.125 5.125 6.50
3 3.50 5.375 5.875 5.875 5.875 6.625
8 8.62 11 12.125 12.00 12.625 14.125
10 10.75 13.375 14.25 14.125 15.75 17.125
12 12.75 16.125 16.625 16.50 18.00 19.625
4 4.50 6.875 7.125 7.00 7.625 8.125
5 5.56 7.75 8.50 8.375 9.50 9.75
6 6.62 8.75 9.875 9.75 10.50 11.375

Alloy Steel F22 flanges Heat Treatment

Grade Cooling media Type of Heat Treat Austenitizing/ Solutioning Temperature, Minimum or Range, Fahrenheit [°Celsius] Quenching Cool Below °Fahrenheit [°Celsius] Temperature, Tempering, Min or Range, °Fahrenheit [°Celsius]
ASTM A182 F22 Class 1 and 3 Air cool Temper and normalize 1650 [900] B 1250 [675]
Furnace cool Anneal B B

What types of End Connections are used in Yaye Industrial Flanges?

  • Weld neck
  • Orifice flanges
  • Socket weld
  • Lap joint
  • Blind
  • Slip-on
  • Threaded
