ASTM A694 F60 Flanges

Home|ASTM A694 F60 Flanges

Certified Manufacturer of A694 F60 Carbon Steel Blind Flanges in China

ASTM A694 F60 Flanges

Table of Content

Flanges-table

ASTM A694 F60 Flanges Specification

Flange Sizes

Carbon steel F60 Flange Sizes

  • NPS: ½” to 48″
  • PN 2.5 – PN 400
  • 15NB – 1200NB
Flange Standards

ASTM A694 F60 Weld Neck Flange Standards

  • ANSI/ASME B16.5
  • MSS SP44
  • ASME B16.5
flange Face

Carbon steel F60 slip on flange Face

  • T&G
  • RF
  • RTJ
  • FF
Origin

Grade F60 Blind Flanges Origin

  • Argentina
  • Indian
  • China
  • Nigeria
Flange Schedule

Carbon steel F60 Slip On Flange Schedule

  • SCH 10s to XXH
Pressure Types

ASME SA 694 F60 Weld Neck Flange Pressure Types

  • 150# To 300#
  • 400# To 900#
  • 1500# To 2500#
Certificates

Certificates of ASTM A694/A694M Weld Neck Flange

  • 100% Radiography Test
  • Third Party Inspection
  • NACE MR0175
  • MTC BS EN 10204 3.1/ 3.2
Density & Temperature

ASTM A694 F60 WNRTJ flange Density & Temperature

  • Density : 7.8 – 7.9 g/cm³
  • Forging Temp : 600°C and 950°C.
  • Working Temp : 425°C (800°F)
  • Melting Point :1480 - 1526 °C
Flange Threads

A694 F60 Weld Neck Flange Threads

  • NPT, MNPT
  • BSPT
  • BSPP
  • FNPT
Flanges Process

ASTM A694/A694M Orifice Flanges Process

  • Rolling
  • Forging
  • Cutting
  • Casting
Advantages

ASTM A694 F60 slip on welding flange Advantages

  • High strength
  • Cost-effective
  • Leaf-proof
  • Easy to use and install
Disadvantages

Disadvantages of ASME SA 694 F60 Socket Weld Flange

  • Poor Rust Resistance
  • Limited flexibility
  • Assembly error
  • Installation cost
Testing Methods

ASTM A694 F60 Socket Weld Flange Testing Methods

  • Pressure
  • Hardness test
  • PMI
  • Tensile
Features

ASTM A694 F60 Flanges Features

  • Temperature rating
  • Face types
  • Standards
  • Production techniques

Types of Grade F60 Lap Joint Flanges

ASTM A694 F60 Flanges Manufacturer in China Provides A Selection Of The Most Popular Varieties.


ASTM A694 F60 Flanges

ASTM A694 F60 Flanges

ASTM A694 F60 Weld Neck Flange

ASTM A694 F60 Weld Neck Flange

ASME SA 694 F60 Threaded Flange

ASME SA 694 F60 Threaded Flange

A694 F60 Spectacle Blind Flanges

A694 F60 Spectacle Blind Flanges

A694 F60 Socket Weld Flange

A694 F60 Socket Weld Flange

ASTM A694 F60 Plate Flange

ASTM A694 F60 Plate Flange

Carbon steel F60 Slip On Flange

Carbon steel F60 Slip On Flange

ASTM A694/A694M Orifice Flanges

ASTM A694/A694M Orifice Flanges

Grade F60 Lap Joint Flanges

Grade F60 Lap Joint Flanges


Supplier of ASME SA694 High Yield CS F52 Slip On Flange With High Durability & Check Grade F60 Flanges Dimension Chart & Mechanical Properties.


Dimensions Chart Of ASTM A694 F60 Flanges

ASTM A694 F60 Flanges Manufacturer in China Provides A Wide Range Of Dimensions.

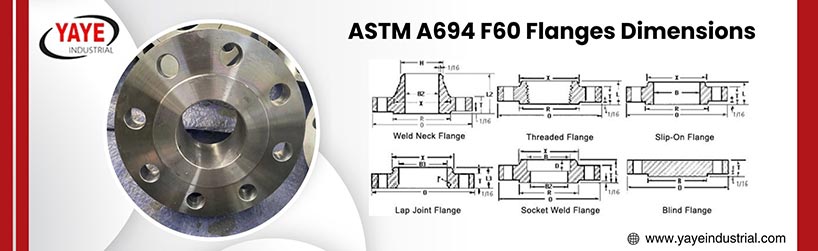

ASTM A694 F60 Flanges Dimensions

NPS DIA OF RF FLANGES THICK O.D. OF FLANGE DIA OF HUB AT BASE LENGTD TDRU HUB BORE OR DIA DEPTD OF SOCKET RADIUS OF FILLET DIAMETER. OF HUB AT BEVEL
LAP JOINT (LOOSE) SLIP-ON (SORF) THREADED (NPT) SOCKET (SWRF) WELDING (WN) NECK LAP JOINT (LOOSE) SLIP-ON (SORF) SOCKET (SWRF)
R Q O X Y Y Y B W Z r H
5 7.5/16 15/16 10 6-7/16 1-7/16 1-7/16 3-1/2 5.69 5.66 15/16 7/16 5.56
24 27-1/4 1-7/8 32 26-1/8 4-3/8 3-1/4 6 24.25 24.25 2-1/2 1/2 24.00
1/2 1-3/8 7/16 3-1/2 1-3/16 5/8 5/8 1-7/8 .90 .88 3/8 1/8 .84
3-1/2 5-1/2 15/16 8-1/2 4-13/16 1-1/4 1-1/4 2-13/16 4.10 4.07 7/8 3/8 4.00
20 23 1-11/16 27-1/2 22 4-1/16 2-7/8 5-11/16 20.25 20.20 2-1/8 1/2 20.00
3/4 1-11/16 1/2 3-7/8 1-1/2 5/8 5/8 2-1/16 1.11 1.09 7/16 1/8 1.05
18 21 1-9/16 25 19-7/8 3-13/16 2-11/16 5-1/2 18.20 18.18 1-15/16 1/2 18.00
1 2 9/16 4-1/4 1-15/16 11/16 11/16 2-3/16 1.38 1.36 1/2 1/8 1.32
16 18-1/2 1-7/16 23-1/2 18 3-7/16 2-1/2 5 16.19 16.16 1-3/4 1/2 16.00
4 6-3/16 15/16 9 5-5/16 1-5/16 1-5/16 3 4.60 4.57 15/16 7/16 4.50
1-1/4 2-1/2 5/8 4-5/8 2-5/16 13/16 13/16 2-1/4 1.72 1.70 9/16 3/16 1.66
14 16-1/4 1-3/8 21 15-3/4 3-1/8 2-1/4 5 14.18 14.14 1-5/8 1/2 14.00
1-1/2 2-7/8 11/16 5 2-9/16 7/8 7/8 2-7/16 1.97 1.95 5/8 1/4 1.90
12 15 1-1/4 19 14-3/8 2-3/16 2-3/16 4-1/2 12.92 12.88 1-9/16 1/2 12.75
2 3-5/8 3/4 6 3-1/16 1 1 2-1/2 2.46 2.44 11/16 5/16 2.38
10 12-3/4 1-3/16 16 12 1-15/16 1-15/16 4 10.92 10.88 1-5/16 1/2 10.75
2-1/2 4-1/8 7/8 7 3-9/16 1-1/8 1-1/8 2-3/4 2.97 2.94 3/4 5/16 2.88
8 10-5/8 1-1/8 13-1/2 9-11/16 1-3/4 1-3/4 4 8.75 8.72 1-1/4 1/2 8.63
3 5 15/16 7-1/2 4-1/4 1-3/16 1-3/16 2-3/4 3.60 3.57 13/16 3/8 3.50
6 8-1/2 1 11 7-9/16 1-9/16 1-9/16 3-1/2 6.75 6.72 1-1/16 1/2 6.63

ASTM A694/A694M Orifice Flanges Weight chart

ASTM A694 F60 Flanges Manufacturer in China Offers A Excellent Weight Chart For Flanges

NOMINAL PIPE SIZES (NPS) LAP JOINT (LOOSE) WELD NECK (WRNR) SLIP ON (SORF) SOCKET WELD (SWRF) BLIND (BLRF) THREADED (NPT)
3½ 11 12 11 11 13 12
8 30 42 30 30 47 30
24 275 268 220 220 430 220
6 19 26 19 19 27 19
½ 1 2 1 2 2 1
4 13 16.5 13 13 17 13
22 245 225 185 185 355 185
¾ 2 2 2 2 2 2
5 15 21 15 15 20 15
20 195 197 165 165 285 165
1 2 3 2 2 2 2
18 160 165 130 130 220 130
1¼ 3 3 3 3 3 3
16 140 140 106 98 180 98
1½ 3 4 3 3 4 3
14 105 114 90 90 140 90
2 5 6 5 5 5 5
12 64 88 64 64 123 64
2½ 8 10 8 8 7 8
10 43 54 43 43 70 43
3 9 11.5 9 9 9 9

Bolt & Stud Chart Of Carbon steel F60 Slip On Flange

CLASS 600 FLANGES CLASS 300 FLANGES CLASS 150 FLANGES
NPS # BOLTS AND STUDS STUD LENGTH DIA OF BOLTS & STUDS # BOLTS AND STUDS STUD LENGTH DIA OF BOLTS & STUDS # BOLTS AND STUDS STUD LENGTH DIA OF BOLTS & STUDS
RTJ 1/4 RF RTJ 1/16 RF RTJ 1/16 RF
3-1/2 8 5-1/2 5-1/2 0.88 8 5 4-1/4 0.75 8 4 3-1/2 0.63
6 12 6-3/4 6-3/4 1.00 12 5-1/2 4-3/4 0.75 8 4-1/2 4 0.75
24 24 13-1/4 13 1.88 24 10 9 1.50 20 7-1/4 6-3/4 1.25
5 8 6-1/2 6-1/2 1.00 8 5-1/4 4-3/4 0.75 8 4-1/4 3-3/4 0.75
1/2 4 3 3 0.50 4 3 2-1/2 0.50 4 – 2-1/4 0.50
20 24 11-1/2 11-1/4 1.63 24 8-3/4 8 1.25 20 6-3/4 6-1/4 1.13
3/4 4 3-1/2 3-1/2 0.63 4 3-1/2 3 0.63 4 – 2-1/2 0.50
18 20 10-3/4 10-3/4 1.63 24 8-1/4 7-3/4 1.25 16 6-1/4 5-3/4 1.13
1 4 3-1/2 3-1/2 0.63 4 3-1/2 3 0.63 4 3 2-1/2 0.50
4 8 5-3/4 5-3/4 0.88 8 5 4-1/2 0.75 8 4 3-1/2 0.63
16 20 10 10 1.50 20 8 7-1/2 1.25 16 5-3/4 5-1/4 1.00
1-1/4 4 3-3/4 3-3/4 0.63 4 3-3/4 3-1/4 0.63 4 3-1/4 2-3/4 0.50
14 20 9-1/4 9-1/4 1.38 20 7-1/2 7 1.13 12 5-3/4 5-1/4 1.00
1-1/2 4 4-1/4 4-1/4 0.75 4 4 3-1/2 0.75 4 3-1/4 2-3/4 0.50
2 8 4-1/4 4-1/4 0.63 8 4 3-1/2 0.63 4 3-3/4 3-1/4 0.63
12 20 8-3/4 8-3/4 1.25 16 7-1/4 6-3/4 1.13 12 5-1/4 4-3/4 0.88
2-1/2 8 4-3/4 4-3/4 0.75 8 4-1/2 4 0.75 4 4 3-1/2 0.63
10 16 8-1/2 8-1/2 1.25 16 6-3/4 6-1/4 1.00 12 5 4-1/2 0.88
3 8 5 5 0.75 8 4-3/4 4-1/4 0.75 4 4 3-1/2 0.63
8 12 7-3/4 7-1/2 1.13 12 6 5-1/2 0.88 8 4-3/4 4-1/4 0.75

Equivalent Grades of ASME SA 694 F60 Threaded Flange

UNS

K03014

DIN

2527, 2566

BS

BS4504

EN

EN 1092-1

JIS

JIS B2220



A694 F60 Spectacle Blind Flanges Chemical Composition

ASTM A694 F60 Flanges Manufacturer In China Provides Accurate Chemical Composition Of Flanges

SULFER

≤0.025

PHOSPHORUS

≤0.025

CARBON

≤0.30

SILICON

0.15-0.35

MANGANESE

≤1.60

Mechanical Properties of ASTM A694 F60 Plate Flange

Yield Strength (MPA)

415

Tensile Strength (MPA)

620~790

Elongation 2 %

20 %



Temperature Range Of High Yield F60 Flanges

TEMP. °C ASTM A694 F60 FLANGES WORKING OF PRESSURE BY CLASS
CLASS 2500 CLASS 150 CLASS 900 CLASS 600 CLASS 400 CLASS 1500 CLASS 300
350 313.0 8.4 112.7 75.1 50.1 187.8 37.6
538 49.2 1.4 17.7 11.8 7.9 29.5 5.9
50 417.7 19.2 150.4 100.2 66.8 250.6 50.1
425 239.7 5.5 86.3 57.5 38.4 143.8 28.8
500 97.9 2.8 35.3 23.5 15.7 58.8 11.8
100 388.3 17.7 139.8 93.2 62.1 233.0 46.6
475 145.3 3.7 52.3 34.9 23.2 87.2 17.4
150 375.6 15.8 135.2 90.2 60.1 225.4 45.1
325 322.6 9.3 116.1 77.4 51.6 193.6 38.7
400 289.3 6.5 104.2 69.4 46.3 173.6 34.7
200 365.0 13.8 131.4 87.6 58.4 219.0 43.8
375 303.1 7.4 109.1 72.7 48.5 181.8 36.4
300 331.8 10.2 119.5 79.6 53.1 199.1 39.8
250 349.5 12.1 125.8 83.9 55.9 209.7 41.9
450 191.7 4.6 69.0 46.0 30.7 115.0 23.0
-29 ~ 38 425.5 19.6 153.2 102.1 68.1 255.3 51.1

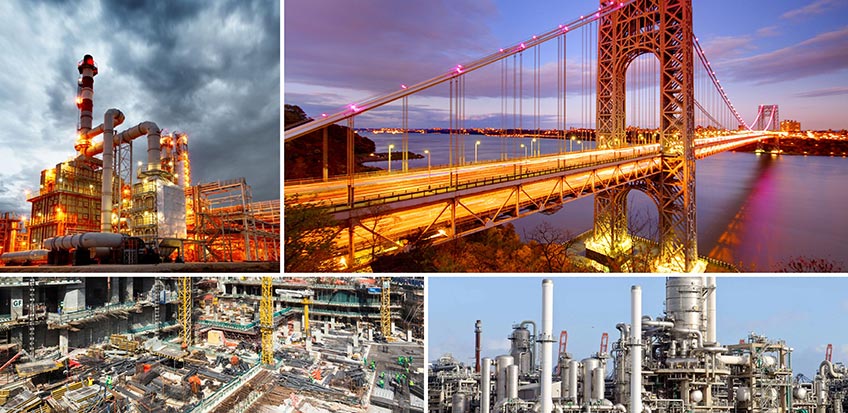

Uses & Application Of ASTM A694 F60 Weld Neck Flange

ASTM A694 F60 Weld Neck Flange Uses & Application

Uses & Application

  • Food Processing Industries
  • Petrochemical Industry
  • Sugar Industries
  • Oil & Gas Industries
  • General Structural Purposes
  • Construction
  • Bridges
  • Petrochemical Industry

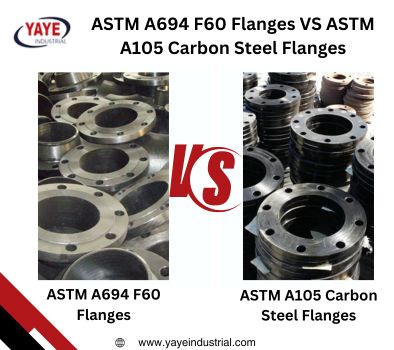

Difference Between ASTM A694 F60 Flanges VS ASTM A105 Carbon Steel Flanges

ASTM A694 F60 flanges ASTM A105 carbon steel flanges
Standards Stricter than SA105N and SA350LF2 ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN
Material Mild steel Forged carbon steel
Strength High strength and durability Excellent mechanical properties
Difference ASTM A694 F60 Flanges VS ASTM A105 Carbon Steel Flanges
