ASTM A335 P22 Pipe

Home|ASTM A335 P22 Pipe

Reliable Supplier of A335 P22 Alloy Steel Seamless Pipes in China

ASTM A335 P22 Pipe

ASTM A335 P22 Pipe Specification

pipe size icon

ASTM A335 P22 Pipe Sizes

  • OD: 21.3 – 273 mm
  • WT: 2.77 – 12.7mm
  • Length:Single/ Double & Cut to Length
welded pipe size icon

ASTM A335 gr P22 High Temperature Seamless pipe Length

  • 12 meters
  • 6 meters
  • Custom length or cut to length to save wastage
End Types

ASTM A335 P22 IBR pipe End Types

  • Plain end, Roll groove
  • Coupled, Bevel end
  • Cut groove, Threaded
Features

Features of ASTM A335 P22 Pipe

  • Machinability
  • Weldability
  • Corrosion resistance
  • End finishes
pipe manufacturing process

P22 seamless pipe Manufacturing Process

  • Cold Formed
  • Precision Rolled
  • Hot Formed
Pipe Surface Finish

ASTM A335 P22 IBR pipe Surface Finish

  • Varnished
  • FBE/ Epoxy
  • Polished
Applications

Alloy Steel P22 Round Pipe Applications

  • Petrochemicals
  • Gas processing
  • Pulp and paper industry
  • Chemical equipment
Documentation

DIN 1.7380 hot finished pipe Documentation

  • Visual Inspection
  • Mill Test Certificates
  • PMI Test Reports
Pipe Testing

A335 P22 Alloy Steel Seamless Pipes Testing

  • Chemical
  • PMI
  • Mechanical
  • Ultrasonic
Standards

Alloy Steel A335 P22 Material Standards

  • ASTM A 335, ASME SA 335
Origins

ASTM A335 P22 IBR pipe Origins

  • American
  • China
  • Russia, India
  • Janpanese
pipe Types

Types of SA 335 gr P22 High Pressure Pipe

  • Fabricated
  • Seamless
  • CEW Pipes
Measurement

Measurement of ASTM A335 P22 IBR pipe

  • Thickness, Length
  • Outer diameter
  • Inner diameter
  • Straightness, Ovality
Disadvantages

ASTM A335 P22 Pipe Disadvantages

  • Rapid cooling
  • Embrittlement
  • Temperature range
  • Wear and corrosion
Packaging

Alloy Steel P22 Round Pipe Packaging

  • Bundled
  • Bubble Wraps
  • Wooden Box
Advantages

ASTM A335 P22 Pipe Advantages

  • High temperature resistance
  • Weldability
  • Durability
  • Versatility

Types of Alloy Steel P22 Round Pipe


ASTM A335 P22 Pipe Supplier in China Offers a Large Selection of Commonly Used Pipe Types.


Alloy Steel P22 Round Pipe

Alloy Steel P22 Round Pipe

DIN 1.7380 hot finished pipe

DIN 1.7380 hot finished pipe

ASTM A335 gr P22 annealed pipe

ASTM A335 gr P22 annealed pipe

ASTM A335 P22 IBR pipe

ASTM A335 P22 IBR pipe

ASTM A335 P22 Pipe

ASTM A335 P22 Pipe

A335 P22 Alloy Steel Seamless Pipes

A335 P22 Alloy Steel Seamless Pipes

Alloy Steel A335 P22 Material

Alloy Steel A335 P22 Material

P22 seamless pipe

P22 seamless pipe

SA 335 gr P22 High Pressure Pipe

SA 335 gr P22 High Pressure Pipe


Size Chart Of P22 Seamless Pipe

ASTM A335 P22 Pipe Manufacturer in China Provides a Large Range of Diameters to Meet the Needs of Customers.

O.D. x Thick (MM) O.D x Thick(MM) O.D x Thick(MM)
57.0 x 3.6 139.7 x 6.3 76.2 x 3.6
38.1 x 3.2 76.2 x 4.0 57.0 x 4.9
57.0 x 3.2 139.7 x 5.0 70.0 x 6.3
38.1 x 4.0 76.2 x 5.0 57.0 x 6.3
51.0 x 6.3 139.7 x 4.0 70.0 x 3.6
48.3 x 3.2 101.6 x 3.6 63.5 x 3.6
38.1 x 6.3 76.2 x 6.3 57.0 x 7.9
42.4 x 3.2 82.5 x 4.5 60.3 x 3.2
51.0 x 3.6 114.3 x 5.0 70.0 x 3.2
42.4 x 4.0 88.9 x 3.2 60.3 x 3.6
48.3 x 3.6 101.6 x 4.5 63.5 x 4.0
44.5 x 3.2 88.9 x 3.6 60.3 x 5.0
51.0 x 3.2 114.3 x 3.6 63.5 x 7.9
44.5 x 6.3 88.9 x 4.0 63.5 x 3.2
50.8 x 4.5 101.6 x 6.3 63.5 x 6.3

A335 P22 Alloy Steel Seamless Pipes Weight Chart

OTHER DIA SIZE SECTION MODULES WT SCHEDULE PIPE# WEIGHT
1.90 1 1/2 .3262 0.145 40 2.72
.5606 0.154 40 3.66
1.315 1 .1328 0.133 40 1.68
.2913 0.191 80 3.00
0.84 1/2 .0407 0.109 40 0.85
.0853 0.154 80 1.48
2.875 2 1/2 .6870 0.120 10 3.53
1.6371 0.375 160 10.02
1.66 1 1/4 .2346 0.140 40 2.27
.4118 0.200 80 3.63
3.50 3 1.0411 0.120 4.34
2.1207 0.281 9.67
1.9372 0.250 8.69
1.3122 0.156 5.58
2.375 2 .4205 0.109 10 2.64
1.1169 0.216 6.14
.9806 0.344 160 7.47
.8666 0.281 6.29
4.5 4 1.7612 0.120 10 5.62
4.2713 0.337 80 15.00
3.2145 0.237 40 10.80
3.7021 0.281 60 12.67
1.05 3/4 .0705 0.113 40 1.13
.1606 0.179 80 2.17
4.0 3 1/2 1.3776 0.120 10 4.98
2.2354 0.156 7.24
2.8562 0.281 11.17
5.563 5 4.1161 0.188 10.80
5.4500 0.258 40 14.63
9.2534 0.500 120 27.06
5.8997 0.531 160 22.53
6.9358 0.344 19.19
6.4074 0.312 17.51
4.7279 0.219 12.51
7.4300 0.375 80 20.80
5.8644 0.281 15.87
6.625 6 3.5769 0.109 5 7.59
5.9351 0.188 12.94
21.7719 1.000 60.13
10.7976 0.625 160 32.99
9.3416 0.312 21.06
6.3804 0.203 13.94
10.893 0.375 25.05

Size Chart Of ASTM A335 gr P22 Pipe

NPS O.D. (IN) 40 160 80 10
14" 14.000 .437 1.406 .750 .250
1/8" .405 .068 .095 .049
12" 12.750 .406 1.312 .687 .180
3/8" .675 .091 .126 .065
16" 16.000 .500 1.593 .843 .250
1/4" .540 .088 .119 .065
5" 5.563 .258 .625 .375 .134
8" 8.625 .322 .906 .500 .148
6" 6.625 .280 .718 .432 .134
3/4" 1.050 .113 .218 .154 .083
10" 10.750 .365 1.125 .593 .165
1/2" .840 .109 .187 .147 .083
3 1/2" 4.000 .226 .318 .120
1 1/4" 1.660 .140 .250 .191 .109
4" 4.500 .237 .531 .337 .120
2 1/2" 2.875 .203 .375 .276 .120
18" 18.000 .562 1.781 .937 .250
3" 3.500 .216 .437 .300 .120
1" 1.315 .133 .250 .179 .109
1 1/2" 1.900 .145 .281 .200 .109
2" 2.375 .154 .343 .218 .109

Tensile Requirements of P22 Seamless Pipe


SEAMLESS
P-91 P-5 P-22 P-11 P-9
YIELD STRENGTH, MIN., PSI
MPa 415 205 205 205 205
ksi 60 30 30 30 30
TENSILE STRENGTH, MIN., PSI
MPa 585 415 415 415 415
ksi 85 60 60 60 60

Tolerance Chart Of SA 335 gr P22 High Pressure Pipe

ASTM A450 HOT ROLLED OUTSIDE DIA MM TOLEREANCE MM
190.5＜OD≤228.6 +0.4/-1.6
101.6＜OD≤190.5 +0.4/-1.2
OD≤101.6 +0.4/-0.8

COLD DROWN Outside Diameter, mm Tolerance, mm
190.5＜OD≤228.6 +0.38/-1.14
25.4≤OD≤38.1 ±0.15
76.2≤OD≤101.6 ±0.38
63.5≤OD＜76.2 ±0.30
50.8≤OD＜63.5 ±0.25
OD＜25.4 ±0.10
101.6＜OD≤190.5 +0.38/-0.64
38.1＜OD＜50.8 ±0.20
ASTM A530 & ASTM A335 NPS Outside Diameter, inch Tolerance, mm
4＜OD≤8 +1.59/-0.79
8＜OD≤12 +2.38/-0.79
1-1/2＜OD≤4 ±0.79
1/8≤OD≤1-1/2 ±0.40
OD>12 ±1%

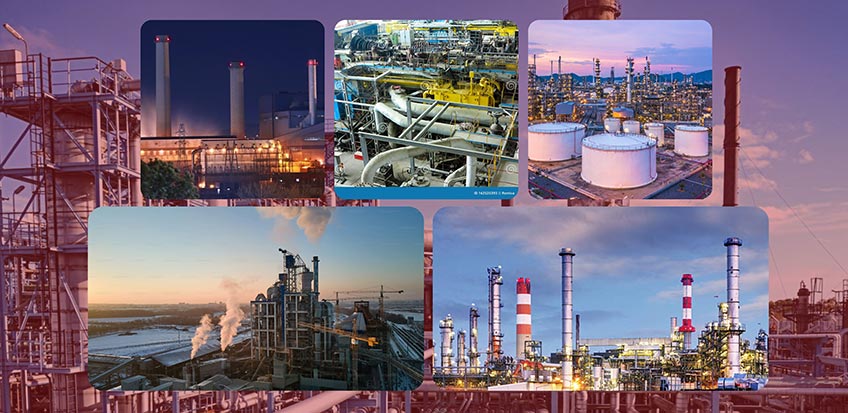

ASTM A335 grade P22 Pipe Applications

Applications of ASTM A335 grade P22 Pipe

Applications

  • Petrochemicals
  • Power generation
  • Pulp and paper industry
  • Chemical equipment
  • Gas processing
  • Sea water equipment
  • Pharmaceutical equipment
  • Off-shore oil drilling companies




Manufacturer of SA 335 gr P22 High Pressure Pipe & Alloy Steel A335 P22 Material in Wenzhou , View Chemical Composition.

SA 335 gr P22 High Pressure Pipe Chemical Composition

Carbon

0.015 max

Phosphorus

0.025 max

Sulfur

0.025 max

Silicon

0.50 max

Manganese

0.30-0.60

Molybdenum

0.87-1.13

Chromium

1.90-2.60


ASTM A335 P22 IBR pipe Mechanical Properties

ASTM A335 P11 Pipe Manufacturer in China Offers The Highest Quality Pipes With Outstanding Mechanical Characteristics.

Tensile Strength, MPa

415 min

Elongation

30 min


Yield Strength

205 MPa



Equivalent Chart Of DIN 1.7380 hot Finished Pipe


UNS

K21590

ASME

SA335 P22

ASTM

A335 P22

BS

3604 P1 622

ABS

ABS 13

NK

KSTPA 24

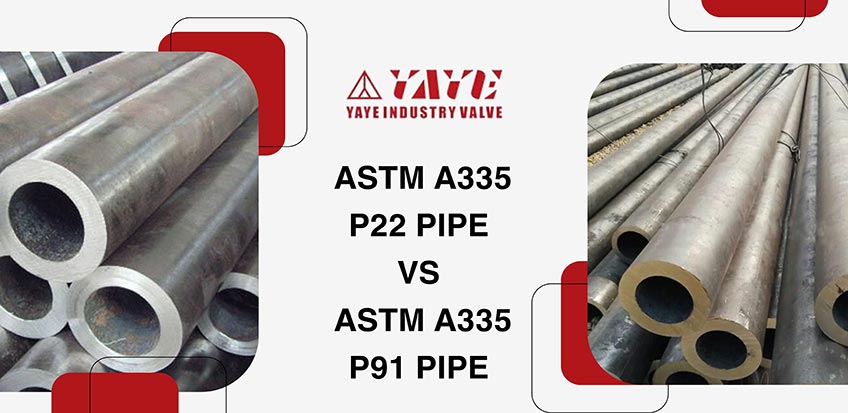

Difference Between ASTM A335 P22 Pipe and ASTM A335 P91

Difference ASTM A335 P22 Pipe and ASTM A335 P91

ASTM A335 P11 Pipe VS ASTM A335 P22

ASTM A335 P22 ASTM A335 P91
Uses Used in the oil and gas, energy, food processing, and marine industries Used in power plants, chemical plants, and other high-temperature environments
Chromium content Contains 2.5% chromium Contains 9% chromium
Properties carbon steel with added chromium, molybdenum, and vanadium chrome-moly alloy metal that is resistant to heat, corrosion, oxidation, and erosion



How Can Yaye Industrial Wenzhou Ensure Precision In Astm A335 P22 Pipe Production ?

  • Manufacturers Strictly Adhere to the Astm A335 Standard
  • Includes Rigorous Quality Checks Throughout the Manufacturing Process
  • Precise Chemical Composition Control
  • Stringent Mechanical Testing (Tensile Strength, Yield Strength, Hardness)
  • Hydrostatic Pressure Testing
