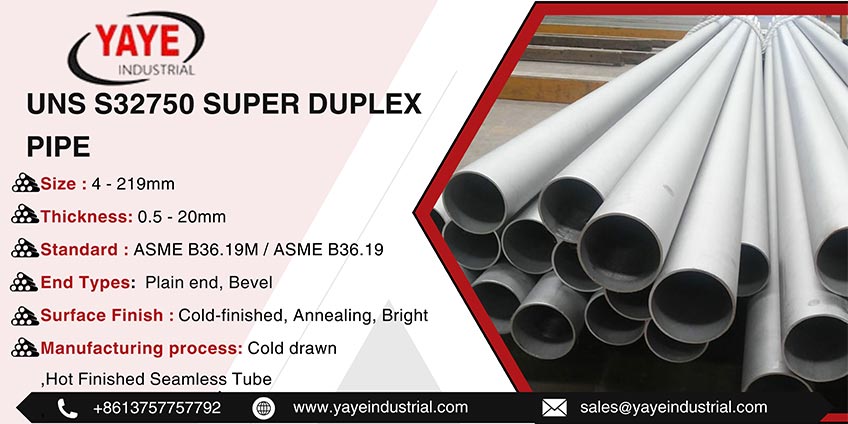

UNS S32750 Super Duplex Pipe

Home|UNS S32750 Super Duplex Pipe

AS 9100D Certified Supplier of Super Duplex 2507 Pipe in China

Monel 400 Pipe

Get Super Duplex 2507 Seamless Pipe & Alloy 2507 Stainless Steel Pipe With high mechanical strength, check pressure rating, schedule and weight chart

UNS S32750 Super Duplex Pipe Specification

Origins

Super Duplex 2507 Pipe Origins

  • Korean, China
  • European , Indian
  • Janpanese
pipe Types

Types of Alloy 2507 Stainless Steel Pipes

  • Rectangle
  • Square
  • Round
pipe size icon

Super Duplex 2507 Seamless Pipe Sizes

  • 4 - 219mm
  • Thickness : 0.5 - 20mm
welded pipe size icon

ASTM a789 uns s32750 Welded Pipe Sizes

  • 5.0 - 1219.2 mm
  • Thickness : 0.5 - 20mm
pipe manufacturing process

SA 789 uns s32750 tube Manufacturing Process

  • Cold Finished Seamless Tubes
  • Hot Finished Seamless Tube
Pipe Surface Finish

ASME SA 789 uns s32750 welded tubing Surface Finish

  • Precleaned, Cleaned
  • Pickled
  • Passivated
Pipe Testing

A789 UNS s32750 seamless Pipe Testing

  • PMI
  • Flange test
  • Flaring test
  • Tension test
Standards

ASTM a789 UNS s32750 welded tube EFW Pipe Standards

  • ASME B36.19
  • ASME B36.19
  • EN 10217-7
  • EN 10216 – 2
Applications

ASTM a790 UNS s31803 seamless pipe Applications

  • Fluid and gas transport , Fluid Pipe
  • Sea water, Heat Exchangers
  • Superheaters
Documentation

Super Duplex 2507 Pipe Documentation

  • QC/ Inspection reports
  • Labeling verification
  • Verify quantity
Packaging

Super Duplex 2507 Seamless Pipe Packaging

  • Ply Wooden Boxes
  • Standard seaworthy export packing
  • Steel Strips Bundled
Advantages

Alloy 2507 Stainless Steel Pipe Advantages

  • Excellent resistance
  • stress corrosion
Measurement

Measurement of ASTM a789 UNS s32750 pipe

  • Thickness, Length
  • Outer diameter
  • Inner diameter
Disadvantages

SA 789 UNS s32750 tube Disadvantages

  • Lower heat resistance
  • Machinability
End Types

ASME sa 789 uns s32750 Pipe End Types

  • Bevel end
  • Plain end
Features

Features of A789 UNS s32750 seamless Pipe

  • Flexibility , Durability
  • Great strength
  • Great weldability

Types of SA 789 UNS S32750 seamless tubing


UNS S32750 Super Duplex Pipe Supplier in China Provides a Wide Range of Regularly Used Pipe Types.


Super Duplex 2507 Seamless Pipes

Super Duplex 2507 Seamless Pipes

Alloy 2507 Stainless Steel Welded Pipe

Alloy 2507 Stainless Steel Welded Pipe

ASTM a789 uns s32750 pipe

ASTM a789 uns s32750 pipe

SA 789 uns S32750 tube ERW Pipe

SA 789 uns S32750 tube ERW Pipe

ASME sa 789 uns s32750 Rectangular Pipe

ASME sa 789 uns s32750 Rectangular Pipe

A789 uns s32750 seamless pipe Round Pipe

A789 uns s32750 seamless pipe Round Pipe

UNS S31803 welded Square Pipe

UNS S31803 welded Square Pipe

SA 789 UNS s32750 seamless tubing EFW pipe

SA 789 UNS s32750 seamless tubing EFW pipe

SA789 UNS s32750 welded pipe

SA789 UNS s32750 welded pipe

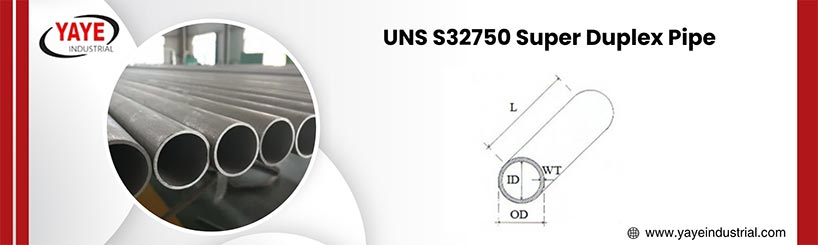

UNS S32750 Super Duplex Pipe Sizes

UNS S32750 Super Duplex Pipe Manufacturer in China offers a wide Variety of Diameters to Satisfy Customer Needs.

UNS S32750 Super Duplex Pipe Sizes

Length(m)/pcs Pressure(Mpa) Size Length
1500 70 φ10mm×1.2mm
500 100 φ10mm×2mm
500 80 φ12mm×1.5mm
3200 80 1/8″×0.025″
3200 100 1/8″×0.035″
2000 100 1/4″×0.035″
2000 100 1/4″×0.049″
1800 80 φ8mm×1mm
1800 100 φ8mm×1.2mm
1500 70 φ10mm×1mm
1500 80 3/8″×0.035″
1500 100 3/8″×0.049″
1000 80 1/2″×0.049″
1000 100 1/2″×0.065″
3200 80 φ3mm×0.7mm
3200 100 φ3mm×0.9mm
3000 100 φ4mm×0.9mm
3000 100 φ4mm×1.1mm
2000 100 φ6mm×0.9mm
2000 100 φ6mm×1.1mm

Weight Chart of Super Duplex 2507 Pipe

Pipe OD
mm		 Pipe WT
mm		 Weight, kg/m Nominal size
406.4 4.78 48.07 16" 10S
457.2 4.78 54.151 18" 10S
508.0 5.54 69.702 20" 10S
610.0 6.35 95.919 *24" 10S
21.34 2.11 1.02 1/2" 10S
21.34 2.77 1.29 1/2" 40S
26.67 2.11 1.30 3/4" 10S
26.67 2.87 1.71 3/4" 40S
33.40 1.65 1.31 1" 5S
33.40 2.77 2.13 1" 10S
33.40 3.38 2.54 1" 40S
42.16 1.65 1.67 1 1/4" 5S
42.16 2.77 2.73 1 1/4" 10S
42.16 3.56 3.44 1 1/4" 40s
60.33 1.65 2.42 2" 5S
60.33 2.77 3.99 2" 10S
60.33 3.91 5.52 2" 40S
73 3.05 5.35 2 1/2" 10s
73 5.16 8.77 2 1/2" 40S
88.90 2.11 4.58 3" 5S
88.90 3.05 6.56 3" 10S
88.90 5.49 11.47 3" 40S
101.60 3.05 7.53 3 1/2" 10s
114.30 2.11 5.93 4" 5S
114.30 3.05 8.50 4" 10S
114.30 6.02 16.32 4" 40S
141.3 3.4 11.74 5" 10S
141.3 6.55 22.1 5" 40S
168.3 2.77 11.48 6" 5S
168.3 3.4 14.04 6" 10S
168.3 7.11 28.69 6" 40S
273 4.19 28.2 10" 10S
273 9.27 61.22 10" 40S
323.9 3.96 31.72 12" 5S
323.9 4.57 36.54 12" 10S
323.9 9.53 75.02 12" 40S
355.6 4.78 41.99 14" 10S
355.6 9.53 82.583 14" STD
219.1 2.77 15.0 8" 5S
219.1 3.76 20.27 8" 10S
219.1 8.18 43.2 8" 40S
273 3.40 22.95 10" 5S
48.26 1.65 1.92 1 1/2" 5S
48.26 2.77 3.16 1 1/2" 10S
48.26 3.68 5.49 1 1/2" 40S
406.4 9.53 94.706 16" STD

Super Duplex 2507 Seamless Pipe Pressure Rating Chart

Pipe Grade ASTM/ UNS 100°F
40°C		 200°F
90°C		 300°F
150°C		 400°F
200°C		 500°F
260°C		 600°F
320°C		 700°F
370°C
2RK65™*9 N08904 20.3 16.7 15.1 13.8 12.7 11.9 11.4
254 SMO 28 Pipe *10 N08028 20.7 18.9 17.7 16.5 15.4 14.4 13.6
254 SMO Pipe*11 S31254 26.9 26.9 21.4 19.8 18.6 17.9 17.4
LDX 2304 Pipe*1 S32304 29.0 27.9 26.1 24.7 22.9 19.2 -
Duplex 2507 Pipe*3 S32750 38.7 36.3 34.8 34.0 33.9 33.9 -
Duplex 2205 Pipe*2 S31803 30.0 30.0 28.9 27.8 27.2 26.9 -

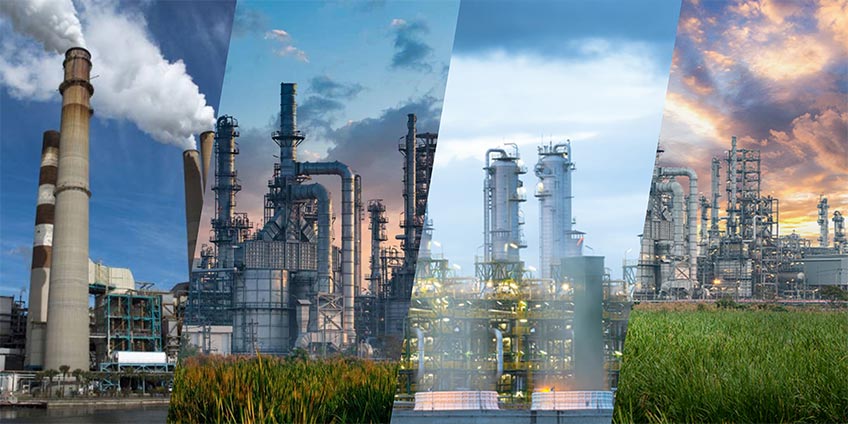

Applications Of Alloy 2507 Stainless Steel Pipe

Applications Of Alloy 2507 Stainless Steel Pipe

Applications

  • Heat Exchangers
  • Fluid and gas transport
  • Sea water
  • Superheaters
  • Boilers




Chemical Composition of ASTM a789 uns s32750 pipe

Chromium

24.0-26.0

Carbon

0.030 max

Silicon

0.80

Manganese

1.20 max

Phosphorus

0.035

Nickel

6.00 - 8.00

SA789 UNS s32750 welded pipe Mechanical Properties

Yield Strength

MPA 550

Tensile Strength

MPA 795

Hardness

310


Elongation

15-25%



Equivalent Grades Of Super Duplex 2507 Pipe

UNS

S32750

EN

14410


Physical Properties of A789 UNS s32750 seamless pipe

UNS S32750 Super Duplex Pipe Manufacturer in China Provides Best Quality Pipes With Superior Physical Qualities.


Unit 200°C 300°C 20°C 100°C
Modulus of Elasticity 194 186 200 180
29
Thermal Conductivity 16 17 15 18
Electric Resistivity 0.85 0.9 0.8 1
Thermal Capacity 530 560 500 590
Linear expansion (RT ➞ T)°C 13 13.5 - 14
Btu/h ft°F
Density 7.8
0.28
Poissons Ratio

UNS S32750 Super Duplex Pipe HS Code

Grade ASTM A790 UNS S31803 Duplex Pipe
HS Code 7304
