Inconel Pipe Manufacturer in China

Home|Inconel Pipe

Genuine Supplier of Alloy 625 Tube in China, With Mill Test Certificate

Inconel Pipe

Get Inconel Alloy Seamless Pipe & Inconel Exhaust Pipe With Custom OD and Wall Thickness, Refer Specification & Dimension Chart

Inconel Pipe Specification

pipe manufacturing process

Inconel 718 ERW Pipe Manufacturing Process

  • Cold Formed
  • Hot Formed
  • Precision Rolled
Pipe Surface Finish

Inconel Exhaust Tubing Finish

  • Bright
  • Annealing
  • Polished
pipe size icon

Inconel Seamless Pipe Sizes

  • Length: cut to size / custom
  • Wall Thickness:.028 - .065 inches
  • OD: .250 - 1.500 inches
welded pipe size icon

Alloy 625 Welded Pipe Size

  • Wall Thickness: 0.8 - 12.7 mm
  • Length:up to 26 m
  • OD: 6.35 - 114.3 mm
Pipe Testing

Inconel Gas Tube Testing

  • Mechanical
  • PMI
  • Chemical
  • Ultrasonic
Standards

Inconel Pipe Standards

  • UNS : N06600 | N06625 |N07718
  • Grades : 600 | 625 | 718
  • Grades : 600 | 625 | 718
Applications

SCH40 Inconel Alloy Pipe Applications

  • Corrosion Resistance
  • High-Pressure Applications
  • Radiation Shielding
  • High-Temperature Resistance
Documentation

Alloy 718 Cold Finished Pipe Documentation

  • Mill Test Certificates
  • Visual Inspection
  • PMI Test Reports
Packaging

Inconel 625 Hollow Pipe Packaging

  • Wooden Box
  • Bubble Wraps
  • Bundled
Advantages

Inconel 625 Pipe Advantages

  • High tensile strength
  • High resistance
  • freedom from local attack
Origins

Inconel Alloy Pipe Origins

  • Russia
  • Janpanese
  • China
  • American
pipe Types

Types of Inconel 625 Seamless

  • Hex
  • Rectangle
  • Round
  • Square
End Types

Inconel Straight Gas Tube End

  • Beveled
  • Plain
Features

Features of Alloy 600 Pipe

  • good strength
  • high-temperature performance
  • Corrosion resistance
Measurement

Measurement of SCH40 Inconel Alloy

  • Outer diameter
  • Inner diameter
  • Thickness, Length
  • Straightness, Ovality
Disadvantages

Inconel 625 Pipe Disadvantages

  • Heavy
  • Expensive
  • Needs Specific Equipment
  • Hard to cut

Types of Inconel Pipe


Inconel Pipe Supplier in China Provides a Broad Range of Commonly used Pipe Types..


Inconel Alloy Seamless Pipe

Inconel Alloy Seamless Pipe

Stainless Steel Welded Pipe

Inconel 625 Welded Pipe

Inconel Flexible Pipe

Inconel Flexible Pipe

Inconel Alloy Square Pipe

Inconel Alloy Square Pipe

Alloy 625 cold Rolled Rectangular Pipe

Alloy 625 cold Rolled Rectangular Pipe

Inconel 600 Round Pipe

Inconel 600 Round Pipe

Alloy 718 ERW Pipe

Alloy 718 ERW Pipe

Inconel Pipe

Inconel Pipe

Hot Rolled Inconel Alloy Pipe

Hot Rolled Inconel Alloy Pipe


Inconel Pipe Size Chart

Inconel Pipe Manufacturer in China Offers a Wide Range of Size

Inconel Pipe Size Chart

OD
mm		 Kg/m in. Pipe WT
mm		 Sch
141.30 22.10 5 6.55 40S
141.30 22.10 5 6.55 40S
114.30 8.50 4 3.05 10S
219.08 112.97 8 23.012 160
168.28 14.04 6 3.4 10S
101.60 7.53 3½ 3.05 10S
48.26 3.16 1½ 2.77 10S
42.16 2.73 1¼ 2.77 10S
33.40 2.13 1 2.77 10S
26.67 1.30 3/4 2.11 10S
21.34 1.02 1/2 2.11 10S
17.15 0.64 3/8 1.65 10S
88.90 6.56 3 3.05 10S
73.03 5.35 2½ 3.05 10S
60.33 3.99 2 2.77 10S
13.72 0.50 1/4 1.65 10S

Weight Chart of Inconel 600 ERW Pipe

NPS Outside Diameter Weight Wall Thickness Weight
in mm kg/Mtr in mm Sched Lb/ft
3/4″ 1.050 27 1.684 0.113 2.870 40 STD 1.131
12″ 12.750 324 37.570 0.188 4.775 25.222
1″ 1.315 33 2.501 0.133 3.378 40 STD 1.679
18″ 18.000 457 61.948 0.219 5.563 41.588
1/2″ 0.840 21 1.268 0.109 2.769 40 STD 0.851
10″ 10.750 273 31.588 0.188 4.775 21.207
20″ 20.000 508 78.547 0.250 6.350 52.733
1 1/4″ 1.660 42 3.385 0.140 3.556 40 STD 2.273
14″ 14.000 356 41.308 0.188 4.775 27.732
24″ 24.000 610 94.456 0.250 6.350 63.413
3″ 3.500 89 11.284 0.216 5.486 40 STD 7.576
2 1/2″ 2.875 73 8.629 0.203 5.516 40 STD 5.793
4″ 4.500 114 16.073 0.237 6.020 10.790
1 1/2″ 1.900 48 4.048 0.145 3.683 40 STD 2.718
16” 16.000 406 47.290 0.188 4.775 21.748
2″ 2.375 60 5.441 0.154 3.912 40 STD 3.653
30″ 30.000 762 118.318 0.250 6.350 79.433
6″ 6.625 168 19.252 0.188 4.775 12.924
42″ 42.000 1067 206.914 0.312 7.925 138.911
8″ 8.625 219 25.233 0.188 4.775 16.940
48″ 48.000 1219 284.112 0.375 9.525 STD 190.738
36″ 36.000 914 142.180 0.250 6.350 95.453

Inconel Pipe Exhaust Schedule Chart

Pipe Size (inches) Schedule 80 Schedule 160 Schedule XXS Schedule 60
6" 6.625 6.625 6.625 6.625
1/4" 0.540 0.540 0.540 0.540
14" 14.000 14.000 14.000 14.000
16" 16.000 16.000 16.000 16.000
3" 3.500 3.500 3.500 3.500
1/8" 0.405 0.405 0.405 0.405
1/2" 0.840 0.840 0.840 0.840
4" 4.500 4.500 4.500 4.500
3/4" 1.050 1.050 1.050 1.050
12" 12.750 12.750 12.750 12.750
5" 5.563 5.563 5.563 5.563
1 1/2" 1.900 1.900 1.900 1.900
10" 10.750 10.750 10.750 10.750
2" 2.375 2.375 2.375 2.375
1" 1.315 1.315 1.315 1.315
8" 8.625 8.625 8.625 8.625
1 1/4" 1.660 1.660 1.660 1.660
3 1/2" 4.000 4.000 4.000 4.000
2 1/2" 2.875 2.875 2.875 2.875


Applications Of Inconel 718 Pipe

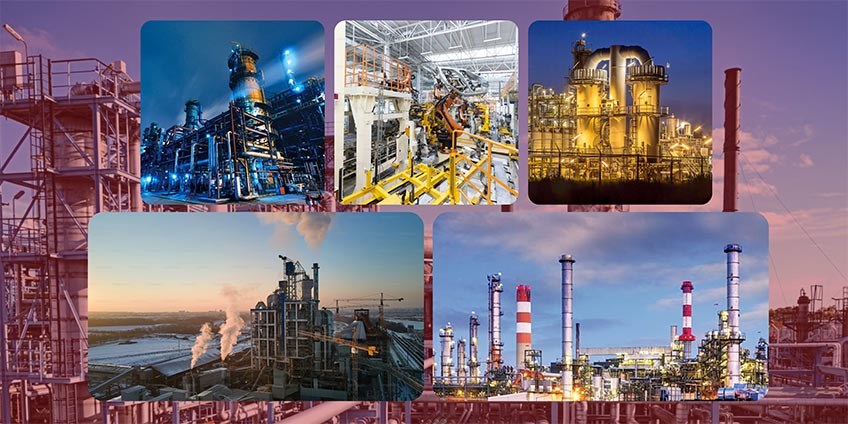

Applications Of Inconel Pipe

Applications

  • Petrochemicals
  • Chemical Equipment
  • Power Generation
  • Pharmaceuticals
  • Specialty Chemical
  • Pharmaceuticals
  • Off-shore Oil Drilling Companies
  • Gas Processing




Pressure Rating Chart of Alloy 718 Hot Finished Tube

Size mm Maximum internal pressure, ksi
200°F 100°F 400°F 600°F 300°F 500°F 700°F
6 x1 940 940 921 888 930 907 869
10x1 534 534 524 505 529 516 494
16x1 324 324 318 307 321 313 300
12x1 440 440 431 415 435 424 407
8x2 1476 1476 1447 1395 1462 1425 1366

Stainless Steel Pipes Tolerance Chart

OD 38 to 60mm 4 to 35mm 35 to 38mm 60 and above
Tolerance +/- 0.20mm +/- 0.08mm +/- 0.15mm +/- 0.25mm

Inconel Clad Pipe Chemical Composition

Grades
Chromium
Manganese
 Nickel Molybdenum Iron Carbon Phosphorus niobium Aluminium Silicon Sulfur
600 14.0–17.0 1.0 72.0 6.0–10.0 0.15
625 20.0–23.0 0.5 58.0 8.0–10.0 5.0 0.1 0.015 3.15–4.15 0.4 0.5
718 17.0–21.0 0.35 50.0–55.0 2.8–3.3 Balance 0.08 0.015 4.75–5.5 0.65–1.15 0.35 0.015

SCH 60 Inconel Alloy Pipe Equivalent Chart

Grade UNS No Euronorm Old British GOST Japanese JIS
No AFNOR BS En
600 N06600 2.4816 NC15FE11M NA 13 NiCr15Fe МНЖМц 28-2,5-1,5 NCF 600
625 N06625 2.4856 NC22DNB4M NA 21 NiCr22Mo9Nb ХН75МБТЮ NCF 625
718 N07718 2.4668 - - - - NCF 718

Inconel Welded Tubing Pipe Mechanical Properties

GRADE Tensile Strength Melting Point Elongation Yield Strength (0.2%Offset)
Inconel 600 Psi 95,000 , MPa 655 1413 °C (2580 °F) 40 % Psi 45,000 , MPa 310
Inconel 625 Psi 1,35,000 , MPa 930 1350 °C (2460 °F) 42.5 % Psi 75,000 , MPa 517
Inconel 718 Psi 1,35,000 , MPa 930 1350 °C (2460 °F) 45 % Psi 75,000 , MPa 482

Inconel 625 Tubing Pipe Hs Code

Product HS Code
Inconel Pipe 75071200

Inconel 718 ERW Pipe Difference Between

inconel pipe Difference
Inconel 625 Pipe Inconel 600 Pipe
Surpassed Inconel Higher Chromium
Corrosion Resistance Good Corrosion Resistance Excellent
Temperature Range up to 1093°C (2000°F) Temperature Range up to 982°C (1800°F)


How does Yaye Industrial prevent leaks in its inconel pipes?

  • Using the proper pipe bedding techniques
  • Assessment of the soil conditions prior to installation
