Cupro Nickel 90/10 Pipe

Home|Cupro Nickel 90/10 Pipe

Excellent Supplier of C70600 Copper Nickel Pipe in China, With Custom Sizes at Affordable Price

Cupro Nickel 90/10 Pipe

Get Cu Ni 90 10 Tube & ASME SB122 Copper Nickel 90/10 Pipe With PMI testing, Refer Specification & Chemical Composition.

C70600 Copper Nickel Pipe Specification

Origins

Cu Ni 90 10 Tube Origins

  • American
  • Russia, Janpanese
  • China ,
pipe Types

Types of Copper nickel 90/10 pipe

  • Round
  • Square
  • Rectangle
pipe size icon

Cu-ni 90/10 Pipe Sizes

  • 1/2" to 6" in OD & NB
welded pipe size icon

Cu ni 90 10 Welded Pipe Sizes

  • Size: 5.0 to 1219.2 mm
pipe manufacturing process

90-10 Copper Nickel Pipe Manufacturing Process

  • Cold drawn , Precision Rolled
  • Hot formed , Cold Formed
Pipe Surface Finish

90/10 Copper Nickel Tube Surface Finish

  • Annealing , Mirror
  • Bright, Annealing
  • Polished
Pipe Testing

90/10 copper nickel pipe Testing

  • Geometric accuracy
  • Ultrasonic gaging
  • Liquid penetrant examination
Standards

Cupro nickel 90/10 Pipe Standards

  • ASTM / ASME
Applications

UNS C70600 seamless pipe Applications

  • Heat Exchangers
  • Petrochemical Industry
  • Chemical Processing
  • Marine Piping Systems
Documentation

WNR 2.0872 welded pipe Documentation

  • Country of origin certificate
  • Bill of Lading
  • Copy of Invoice
Packaging

Copper nickel 90/10 Packaging

  • Wooden Boxes ,Bundles (hexagonal)
  • Wooden Boxes,PE Fabric Bundles
  • Custom
Advantages

CU Ni 90 10 Tube Advantages

  • Exceptional Corrosion Resistance
  • Low Maintenance
  • Environmental Friendliness
Measurement

Measurement of Copper nickel 90/10 Pipe

  • Outer diameter
  • Thickness, Length
Disadvantages

Cu-ni 90/10 Pipe Disadvantages

  • Risk of galvanic corrosion
  • High cost
  • Poor machinability
End Types

Cu ni 90 10 tube End Types

  • Cut groove,Bevel end
  • Plain end,Threaded
Features

Features of 90-10 Copper Nickel Pipe

  • Formability
  • Corrosion Resistance
  • Weldability

Types of Copper Nickel Pipe


Cupro Nickel 90/10 Pipe Supplier in China Provides a Wide Range of Regularly Used Pipe Types.


Cu Ni 90 10 Seamless Pipe

Cu Ni 90 10 Seamless Pipe

Copper nickel 90/10 Welded Pipe

Copper nickel 90/10 Welded Pipe

Copper nickel C70600 Pipe

Copper nickel C70600 Pipe

CU-ni 90/10 pipe ERW Pipe

CU-ni 90/10 pipe ERW Pipe

90-10 Copper Nickel Rectangular Pipe

90-10 Copper Nickel Rectangular Pipe

C70600 Copper Nickel Round Pipe

C70600 Copper Nickel Round Pipe

90/10 Copper Nickel Square Pipe

90/10 Copper Nickel Square Pipe

Cupro Nickel 90/10 pipe EFW pipe

Cupro Nickel 90/10 pipe EFW pipe

UNS C70600 Welded tube

UNS C70600 Welded tube


C70600 Copper Nickel Pipe Sizes

C70600 Copper Nickel Pipe Manufacturer in China offers a wide Variety of Diameters to Satisfy Customer Needs.

C70600 Copper Nickel Pipe Sizes

Outside diameter of pipe DIN86019
10 bar 14 bar
ØD Wall Theoretical Wall Theoretical
thickness weight thickness weight
nominal actual actual actual
inch ND mm mm Kg/m mm Kg/m
0.38 10 16 1 0.42 1 0.42
0.5 15 20 1 0.53 1 0.53
0.75 20 25 1.5 0.99 1.5 0.99
0.125 10 1 0.26 1 0.26
0.25 12 1 0.31 1 0.31
1 25 30 1.5 1.2 1.5 1.2
1.25 32 38 1.5 1.54 1.5 1.54
1.5 40 44.5 1.5 1.81 1.5 1.81
2.5 65 76.1 2 4.16 2 4.16
2 50 57 1.5 2.34 1.5 2.34
3 80 88.9 2 4.88 2.5 6.07
4 100 108 2.5 7.41 2.5 7.41
5 125 133 2.5 9.16 3 10.95
6 150 159 2.5 10.99 3 13.14
7 175 193.7 2.5 13.43 3.5 18.7
8 200 219.1 3 18.21 3.5 21.19
10 250 267 3 22.24 4 29.55
12 300 323.9 4 35.94 5 44.78
14 350 368 4 40.89 5.5 56
16 400 419.1 4 46.62 6 69.6
18 450 457.2 4 50.91 6 76.03
20 500 508 4.5 63.63 6.5 91.55
24 600 610 5 84.96 8 135.26
28 700 711 6 118.8 9 177.45
32 800 813 6 135.99 10 225.53
36 900 914 8 203.57 11 278.98

Weight Chart of C70600 Copper Nickel Pipe

NPS Outside Diameter Wall Thickness Weight Weight
in mm in mm Sched kg/Mtr Lb/ft
1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
0.179 4.547 80 STD 3.325 2.172
1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
0.147 3.734 80 STD 1.621 1.088
1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
0.200 5.080 80 STD 5.409 3.361
1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
0.191 4.851 80 STD 4.464 2.997
2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
0.218 5.537 80 STD 7.480 5.022
2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
0.276 7.010 80 STD 11.411 7.661
3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
0.300 7.620 80 STD 15.272 10.253
3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
0.154 3.912 80 STD 2.195 1.474
4″ 4.500 114 0.237 6.020 16.073 10.790
0.337 8.560 22.318 14.983
6″ 6.625 168 0.188 4.775 19.252 12.924
0.203 5.516 20.739 13.923
0.219 5.563 22.318 14.983
0.250 6.350 25.354 17.021
0.280 7.112 40 STD 58.263 18.974
0.312 7.925 31.334 21.036
0.375 9.525 37.285 25.031
0.432 10.973 80 XHY 42.561 28.573
0.500 12.700 48.719 32.708
8″ 8.625 219 0.188 4.775 25.233 16.940
0.277 7.036 30 36.786 24.696
0.322 8.179 40 42.352 28.554
0.375 9.525 49.216 33.041
0.406 10.312 60 53.085 35.638
0.203 5.156 27.198 18.259
0.219 5.563 29.286 19.661
0.250 6.350 20 33.308 22.361
0.500 12.700 80 XHY 64.627 43.388
10″ 10.750 273 0.188 4.775 31.588 21.207
0.219 5.563 36.689 24.631
0.250 6.350 20 41.759 28.035
0.307 7.798 30 51.002 34.240
0.344 8.738 56.946 38.231
0.365 9.271 40 STD 63.301 40.483
0.438 11.125 71.852 48.238
0.500 12.700 60 XHY 81.530 54.735
0.594 15.088 80 95.969 64.429
12″ 12.750 324 0.188 4.775 37.570 25.222
0.219 5.563 43.657 29.309
0.250 6.350 49.713 33.375
0.281 7.137 55.739 37.420
0.312 7.925 61.735 41.445
0.375 9.525 73.824 49.562
0.406 10.312 79.727 53.525
0.500 12.700 97.438 65.415
0.562 14.275 108.966 73.154
14″ 14.000 356 0.188 4.775 41.308 27.732
0.219 5.563 48.012 32.233
0.250 6.350 20 54.685 36.713
0.281 7.137 61.327 41.172
0.312 7.925 67.939 45.611
0.375 9.525 STD 81.281 54.568
0.438 11.125 40 94.498 63.441
0.500 12.700 XHY 107.381 72.090
0.625 15.875 132.983 89.278
16” 16.000 406 0.188 4.775 47.290 21.748
0.219 5.563 54.980 36.910
0.250 6.350 10 62.639 42.053
0.281 7.137 70.268 47.174
0.312 7.925 20 77.866 52.275
0.344 8.738 85.677 57.519
0.375 9.525 30

STD

 93.213 62.578
0.438 11.125 108.433 72.797
0.500 12.700 40
XHY		 123.289 82.770
18″ 18.000 457 0.219 5.563 61.948 41.588
0.250 6.350 70.593 47.393
0.281 7.137 79.208 53.176
0.312 7.925 20 87.792 58.939
0.375 9.525 STD 105.144 70.588
0.438 11.125 30 122.369 82.152
0.500 12.700 XHY 139.198 93.450
0.562 14.275 40 155.904 104.666
0.625 15.875 172.754 115.978
20″ 20.000 508 0.250 6.350 78.547 52.733
0.282 7.163 88.458 59.386
0.312 7.925 97.719 65.604
0.375 9.525 20 STD 117.075 78.598
0.438 11.125 136.305 91.508
0.500 12.700 30 XHY 155.106 104.130
0.594 15.088 40 183.378 123.110
0.625 15.875 192.640 129.328
0.688 17.475 211.368 141.901
24″ 24.000 610 0.250 6.350 94.456 63.413
0.281 7.137 106.029 71.183
0.312 7.925 117.573 18.932
0.688 17.475 40 255.148 171.293
0.375 9.525 20 STD 140.938 64.618
0.438 11.125 164.176 110.219
0.500 12.700 XHY 186.923 125.490
0.625 15.875 232.410 156.028
0.750 19.050 277.401 186.233
30″ 30.000 762 0.250 6.350 118.318 79.433
0.281 7.137 132.851 89.189
0.312 7.925 10 147.353 98.925
0.375 9.525 STD 176.731 118.648
0.438 11.125 205.983 138.286
0.500 12.700 20 XHY 234.647 157.530
0.625 15.875 30 292.066 196.078
0.688 17.475 320.817 215.380
0.750 19.050 348.988 234.293
36″ 36.000 914 0.250 6.350 142.180 95.453
0.438 11.125 247.790 166.353
0.500 12.700 20 XHY 282.372 198.570
0.625 15.875 351.723 236.128
0.688 17.475 386.487 259.467
0.281 7.137 159.672 107.196
0.312 7.925 10 177.133 118.918
0.375 9.525 STD 215.525 142.678
0.750 19.050 420.576 282.353
42″ 42.000 1067 0.312 7.925 206.914 138.911
0.375 9.525 STD 248.319 166.708
0.500 12.700 XHY 33.097 221.610
0.750 19.050 492.163 330.413
48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
0.438 11.125 331.404 222.487
0.500 12.700 XHY 377.822 253.650
0.750 19.050 563.750 378.473
0.875 22.225 655.969 440.383

Copper nickel 90/10 Pipe Pressure Rating Chart

Size Value Size Value Size Value
7/16 x 0.049 10,080 1-1/4 x 0.120 8,640 7/8 x 0.065 6,685
1/4 x 0.049 17,640 1-1/8 x 0.083 6,640 3/4 x 0.035 4,200
5/16 x 0.035 10,080 1-1/8 x 0.95 7,600 3/4 x 0.049 5,880
5/16 x 0.049 14,110 1-1/8 x 0.109 8,720 3/4 x 0.065 7,800
3/8 x 0.035 8,400 1-1/4 x 0.065 4,680 3/4 x 0.083 9,960
1/4 x 0.035 12,600 1-1/8 x 0.065 5,200 5/8 x 0.083 11,950
3/8 x 0.049 11,760 1-1/4 x 0.083 5,975 3/4 x 0.095 11,400
3/8 x 0.065 15,600 1-1/4 x 0.095 6,840 3/4 x 0.109 13,080
1/2 x 0.065 11,700 1-1/2 x 0.120 7,200 1 x 0.065 5,850
5/8 x 0.035 5,040 2 x 0.134 6,030 1 x 0.083 7,470
7/16 x 0.065 13,370 1-1/2 x 0.083 4,980 7/8 x 0.083 8,535
1/2 x 0.035 6,300 1-1/2 x 0.095 5,700 7/8 x 0.095 9,770
7/16 x 0.035 7,200 1-1/4 x 0.109 7,848 7/8 x 0.049 5,040

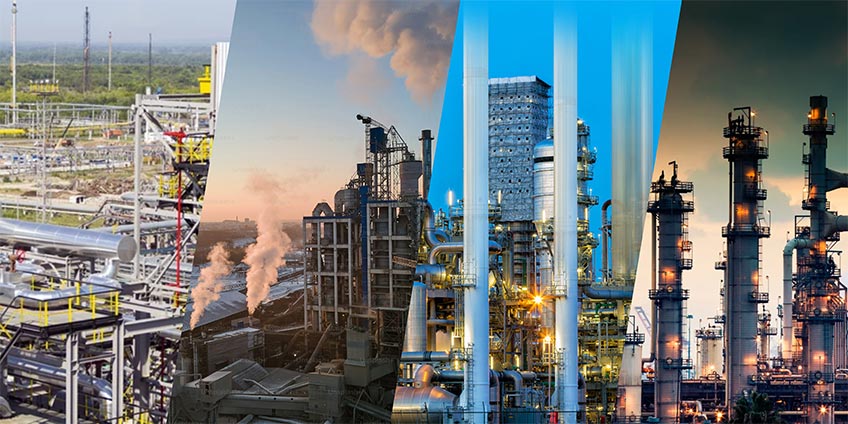

Applications Of Cu-ni 90/10 pipe

Applications Of Cu-ni 90/10 pipe

Applications

  • Heat Exchangers
  • Marine Piping Systems
  • Chemical Processing
  • Petrochemical Industry
  • Gasoline and fresh water tanks
  • Desalination Plants




Chemical Composition of UNS C70600 seamless pipe

Pb

05 max

Ni

9-11 max

Mn

1.0 max

Fe

1.8 max

Cu

88.6 min

Zn

1 max

WRN 2.0872 welded pipe Mechanical Properties

Yield Strength

MPa 110-393

Tensile Strength

MPa 303-414

Elongation

42%



Equivalent Grades Of Copper nickel 90/10 Pipe

UNS

C70600

WNR

2.0872

ASTM

B122

DIN

2.0872


Physical Properties of Cu Ni 90 10 Pipe

Cupro Nickel 90/10 Pipe Manufacturer in China Provides Best Quality Pipes With Superior Physical Qualities.


Melting Range Modulus of Rigidity Thermal Conductivity Density Specific Heat Modulus of Elasticity Electrical Resistivity Coeff. of Linear Expansion 10-300°C
°C GPa W/m°K kg/dm³ J/kg °K GPa microhm. cm 10-6/°K
1100-1145 50 40 8.9 377 135 19 17

Cu-ni 90/10 Pipe HS Code

Grade Cupro Nickel 90/10 Pipe
HS Code 74112200

Are Yaye Industrial pipessuitable for both residential and industrial use?

  • Yes, to handle both hot and cold water
  • Long-lasting durability
  • Chemical resistance
