Hastelloy C276 Pipe

Home|Hastelloy C276 Pipe

Superior Quality Supplier of Alloy C276 Seamless Pipe in China

Hastelloy C276 Pipe

Maintain Ready Stock Of UNS N10276 Pipe & High Quality Hastelloy Tube in Square, Round Rectangular Types in Wenzhou

Hastelloy C276 Pipe Specification

pipe manufacturing process

High Quality Hastelloy Tube Manufacturing Process

  • Cold drawn , Precision Rolled
  • Hot formed , Cold Formed
Pipe Surface Finish

Hastelloy c276 pipe Surface Finish

  • Polished
  • Annealing
  • Bright
pipe size icon

Alloy C276 Seamless Pipe Sizes

  • Wall Thickness:0.5 to 30 mm
  • OD: 3 to 600 mm
  • Length: Cut Length, Double Random & Single
welded pipe size icon

UNS N10276 Welded Pipe Sizes

  • Length: Cut Length, Double Random & Single
  • Wall Thickness: 0.35 to 6 mm
  • Length:0.5 to 12 m
Pipe Testing

Alloy c276 Pipe Testing

  • PMI
  • Chemical
  • Mechanical
  • Ultrasonic
Standards

Hastelloy c276 seamless pipe Standards

  • N06022 | 2.4602
  • ASME SB622 | ASTM B622
  • UNS,DIN, API, EN
Applications

UNS n10276 pipe Applications

  • Energy industries
  • Chemical processing equipment
  • Textile Machinery
  • Dairy and Food Processing
Documentation

Hastelloy c276 pipe Documentation

  • PMI Test Reports
  • Mill Test Certificates
  • Visual Inspection
Origins

Hastelloy c276 pipe Origins

  • Russia, Janpanese
  • China
  • European
  • American
pipe Types

Types of Hastelloy c276 pipe

  • Rectangle
  • Square
  • Hex
  • Round
Packaging

Hastelloy c276 pipe Packaging

  • Bundled
  • Wooden Box
  • Bubble Wraps
Advantages

C276 Pipe Advantages

  • excellent corrosion resistance
  • high temperatures
Measurement

Measurement of Hastelloy C276 Pipe

  • Thickness, Length
  • Outer diameter
  • Inner diameter
Disadvantages

Hastelloy C276 Pipe Disadvantages

  • Difficult Workability
  • Limited Compatibility with Other Materials
  • Susceptibility to Stress Cracking
End Types

Alloy C276 Pipe End Types

  • Plain end
  • Beveled end
Features

Features of B622 N10276 Pipe

  • Strong Export Reputation
  • Eco-Friendly Manufacturing
  • Wide Range of Sizes and Grades

Types of Hastelloy C276


Hastelloy C276 Pipe Supplier in China Provides a Wide Range of Regularly Used Pipe Types.


Hastelloy c276 Seamless Pipe

Hastelloy c276 Seamless Pipe

Alloy C276 Seamless Pipe

Alloy C276 Seamless Pipe

UNS N10276 Welded Pipe

UNS N10276 Welded Pipe

UNS N10276 Seamless ERW Pipe

UNS N10276 Seamless ERW Pipe

High Quality Hastelloy Rectangular Pipe

High Quality Hastelloy Rectangular Pipe

Hastelloy c276 Round Pipe

Hastelloy c276 Round Pipe

Alloy c276 Square Pipe

Alloy c276 Square Pipe

Hastelloy c276 seamless pipe EFW pipe

Hastelloy c276 seamless pipe EFW pipe

C276 pipe Welded Pipe

C276 pipe Welded Pipe

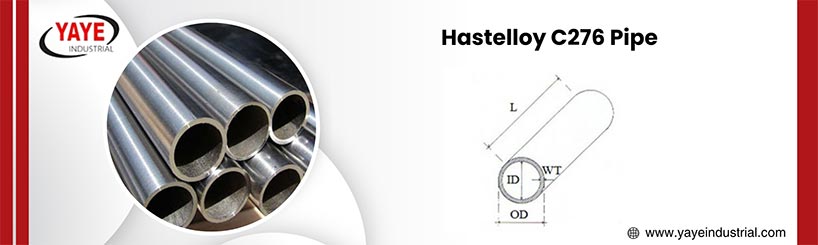

Hastelloy C276 Pipe Sizes

Hastelloy C276 Pipe Manufacturer in China offers a wide Variety of Diameters to Satisfy Customer Needs.

Hastelloy C276 Pipe Sizes

ASTM B622 Hastelloy Alloy Pipe OD
mm		 Pipe WT
mm		 in. Sch Kg/m
88.90 5.49 3 40S 11.47
141.30 9.53 5 80S 31.44
114.30 6.02 4 40S 16.32
13.72 2.24 1/4 40S 0.64
33.40 3.38 1 40S 2.54
17.15 2.31 3/8 40S 0.86
60.33 5.54 2 80S 7.60
48.26 2.77 1½ 10S 3.16
219.08 12.7 8 80S 65.63
73.03 5.16 2½ 40S 8.77
21.34 2.77 1/2 40S 1.29
101.60 5.74 3½ 40S 13.78
26.67 2.87 3/4 40S 1.71
168.28 7.11 6 40S 28.69
42.16 3.56 1¼ 40S 3.44

Weight Chart of Alloy C276 Seamless Pipe

NPS Outside Diameter Wall Thickness Weight Weight
inch milimeter inch milimeter Lb/ft kg/Mtr
36″ 36.0000 914 0.0250 6.0350 95.0453 142.0180
4″ 4.0500 114 0.0237 6.0020 10.0790 16.0073
8″ 8.0625 219 0.0188 4.0775 16.0940 25.0233
30″ 30.0000 762 0.0250 6.0350 79.0433 118.0318
14″ 14.0000 356 0.0188 4.0775 27.0732 41.0308
1/2″ 0.0840 21 0.0109 2.0769 0.0851 1.0268
24″ 24.0000 610 0.0250 6.0350 63.0413 94.0456
12″ 12.0750 324 0.0188 4.0775 25.0222 37.0570
1 1/4″ 1.0660 42 0.0140 3.0556 2.0273 3.0385
3/4″ 1.0050 27 0.0113 2.0870 1.0131 1.0684
1 1/2″ 1.0900 48 0.0145 3.0683 2.0718 4.0048
1″ 1.0315 33 0.0133 3.0378 1.0679 2.0501
16” 16.0000 406 0.0188 4.0775 21.0748 47.0290
10″ 10.0750 273 0.0188 4.0775 21.0207 31.0588
48″ 48.0000 1219 0.0375 9.0525 190.0738 284.0112
18″ 18.0000 457 0.0219 5.0563 41.0588 61.0948
2″ 2.0375 60 0.0154 3.0912 3.0653 5.0441
20″ 20.0000 508 0.0250 6.0350 52.0733 78.0547
3″ 3.0500 89 0.0216 5.0486 7.0576 11.0284
6″ 6.0625 168 0.0188 4.0775 12.0924 19.0252
42″ 42.0000 1067 0.0312 7.0925 138.0911 206.0914
2 1/2″ 2.0875 73 0.0203 5.0516 5.0793 8.0629

UNS N10276 Pipe Pressure Rating Chart

Pipe O.D.
(in.)		 Wall Thickness of Pipe (inches)
Working Pressure (psig)
.065 .028 .049 .035 .095 .083 .120 .109
1/4 9500 3700 7000 4800
1/2 4400   3200 2300
1/8   7900   10100
1 2200       3400 2900 4300 3900
3/4 3000   2200   4600 4000
3/8 6100   4400 3100
5/16 7300   5400 3700

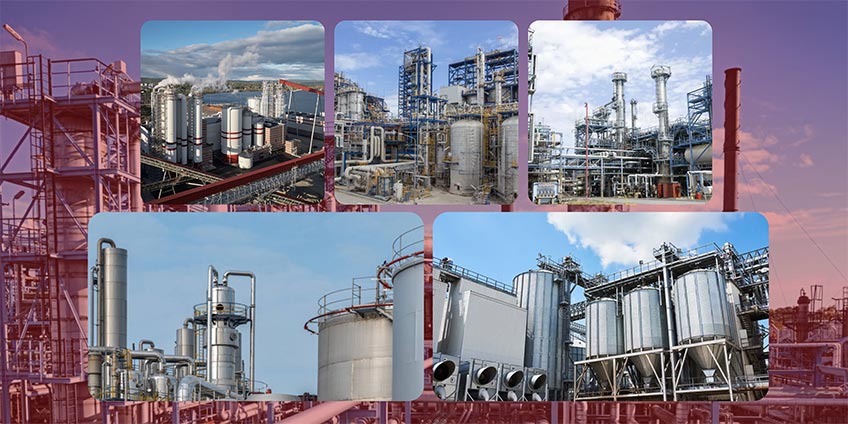

Applications Of Alloy C276 Pipe

Applications Of SS 304 Welded Pipe and 304L Stainless Steel Round Pipe

Applications

  • Chemicals
  • Water treatment facilities
  • Construction
  • Energy industries
  • Pharmaceuticals
  • Dairy and Food Processing
  • Oil and Gas Processing




UNS n10276 pipe Chemical Composition

Cr

14.50 – 16.50

Co

2.5 Max

Mn

1.00 Max

C

0.010 Max

Mo

15.00 – 17.00

Si

0.08 Max

Hastelloy C276 Seamless Pipe Mechanical Properties

Elongation

40 %


Yield Strength

Psi 52,000 , MPa 355

Tensile Strength

Psi 1,15,000 , MPa 790

Melting Point

1370 °C (2500 °F)



Hastelloy C276 Pipe Equivalent Chart

GOST

ХН65МВУ

WERKSTOFF NR

2.4819

UNS

N10276

EN

NiMo16Cr15W

JIS

NW 0276



Physical Properties of Hastelloy Pipe

Hastelloy C276 Pipe Manufacturer in China Provides Best Quality Pipes With Superior Physical Qualities.


Physical Property Temp., °C Temp., °F Metric Units British Units
Electrical Resistivity -73 -100 8.6 W/m•K 60 Btu-in./ft.2 hr.-°F
Thermal Conductivity 24 75 1.30 microhm-m 51 microhm-in.
-168 -270 7.2 W/m•K 50 Btu-in./ft.2 hr.-°F
-18 0 9.4 W/m•K 65 Btu-in./ft.2 hr.-°F
93 200 11.1 W/m•K 77 Btu-in./ft.2 hr.-°F
38 100 10.2 W/m•K 71 Btu-in./ft.2 hr.-°F
316 600 15.0 W/m•K 104 Btu-in./ft.2 hr.-°F
204 400 13.0 W/m•K 90 Btu-in./ft.2 hr.-°F
538 1000 19.0 W/m•K 132 Btu-in./ft.2 hr.-°F
427 800 16.9 W/m•K 117 Btu-in./ft.2 hr.-°F
Mean Coefficient of
Thermal Expansion		 24-93 75-200 11.2 x 10-6 m/m•K 6.2 microinches/in.-°F
24-538 75-1000 13.4 x 10-6 m/m•K 7.4 microinches/in.-°F
24-204 75-400 12.0 x 10-6 m/m•K 6.7 microinches/in.-°F
24-427 75-800 13.2 x 10-6 m/m•K 7.3 microinches/in.-°F
24-316 75-600 12.8 x 10-6 m/m•K 7.1 microinches/in.-°F
Specific Heat
 Room Room 427 J/kg•K 0.102 Btu/lb.-°F

UNS n10276 pipe HS Code

Grade Hastelloy C276 Pipe
HS Code 75071200

Does How Yaye Industrial offerinstallation support for its Hastelloy C276 pipes?

  • Brackets: Attach pipes to walls or other vertical surfaces
  • Stands: Provide support from the ground for horizontal pipes.
  • Hangers: Suspend pipes from ceilings or overhead structures.
