Monel Alloy Pipe & UNS N04400 Tubing With Superior Resistance, Check Specifications and Dimensions Chart

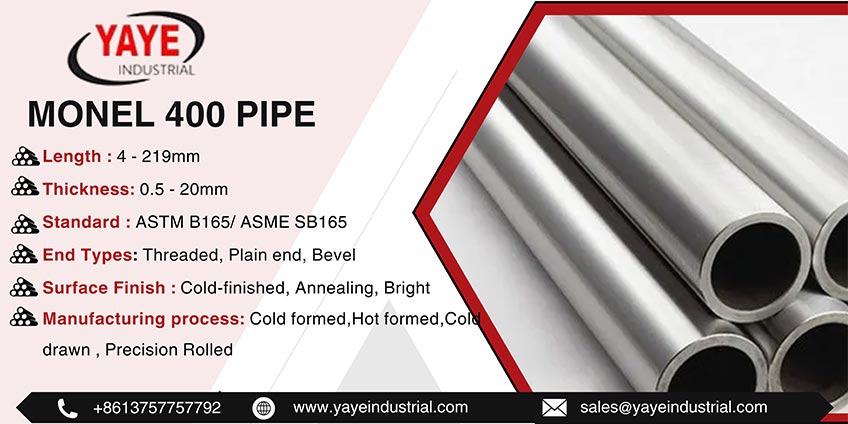

Monel 400 Pipe Specification

Monel Alloy pipe Origins

Russia, Janpanese
China ,
American

Types of UNS N04400 Pipe

Rectangle
Square
Round

ASTM B165 UNS N04400 Seamless Pipe Sizes

Size: 4 - 219mm
Thickness : 0.5 - 20mm
Length: Single, Double Random & Cut Length

Monel Alloy Welded Pipe Sizes

Size: 5.0 - 1219.2 mm
Thickness : 0.5 - 20mm
Length: Single, Double Random & Cut Length

ASTM B165 UNS N04400 Manufacturing Process

Hot formed , Cold Formed
Cold drawn , Precision Rolled

ASME SB 165 UNS N04400 Surface Finish

Annealing
Bright, Mirror
Polished

Monel 400 Pipe Testing

PMI
Mechanical
Third party inspection test
Chemical

Monel 400 EFW Pipe Standards

MIL-T-1368C
ASTM B165/ ASME SB165

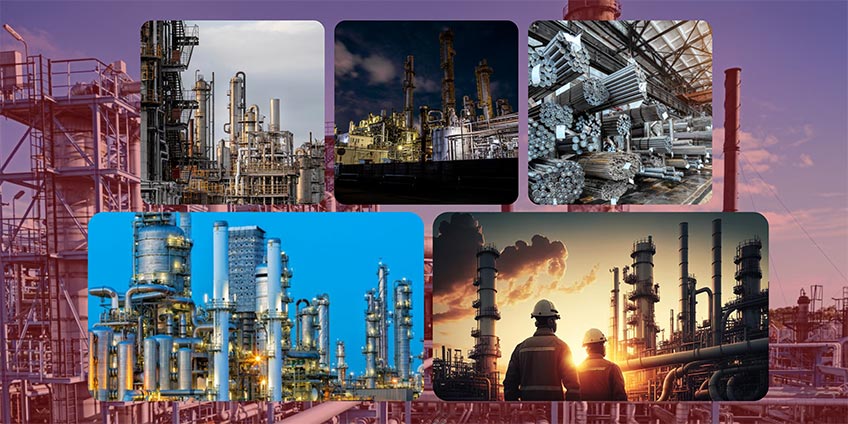

Alloy 400 Pipe Applications

Valves and pumps
Chemical processing equipment
Crude petroleum stills
Pump and propeller shafts

ASTM B165 UNS N04400 Pipe Documentation

Copy of Invoice
Bill of Lading
Country of origin certificate

ASTM B165 UNS N04400 Packaging

PE Fabric Bundles ,Standard seaworthy export packing
Ply Wooden Boxes
Steel Strips Bundled

ASME SB 165 UNS N04400 Advantages

Resistant to Corrosion
High Resistant

Measurement of Monel 400 Pipe

Outer diameter
Thickness, Length

Monel 400 Seamless Pipe Disadvantages

Risk of galvanic corrosion
High cost
Poor machinability

monel welded pipe End Types

Plain end, Roll groove
Cut groove, Threaded
Bevel end

Features of Monel Alloy Pipe

Good Machinability
Corrosion resistance
Good Heat Resistance

Types of Monel 400 Pipe

ASTM A312 TP 304 Pipe Supplier in China Provides a Wide Range of Regularly Used Pipe Types.

ASTM B165 UNS N04400 Seamless Pipe

Monel Alloy Pipe Welded Pipe

ASTM B165 UNS N04400 Pipe

UNS N04400 ERW Pipe

Monel seamless Rectangular Pipe

Monel welded Round Pipe

Monel 400 Square Pipe

ASTM B165 UNS N04400 EFW pipe

Monel 400 Welded tube

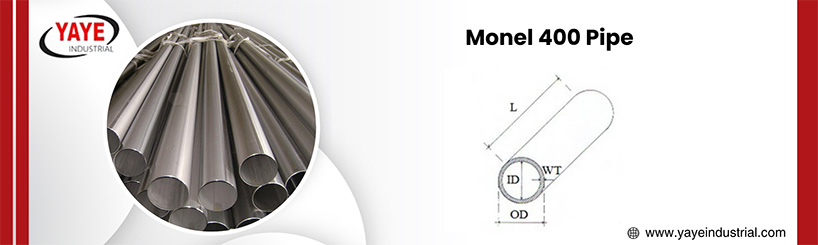

Monel 400 Pipe Sizes

Monel 400 Pipe Manufacturer in China offers a wide Variety of Diameters to Satisfy Customer Needs.

Thickness	Pipe Size	Schedule	Manufacture Method	Specification
1/2	0.5	40	SEAMLESS & DRAWN	ASTM B165 ASME SB165
1/2	0.5	40	SEAMLESS & DRAWN	ASTM B165 ASME SB165
3/4	0.75	40	SEAMLESS & DRAWN	ASTM B165 ASME SB165
1.00	1	80	SEAMLESS & DRAWN	ASTM 8165 ASME SB165
3/4	0.75	80	SEAMLESS & DRAWN	ASTM B165 ASME SB165
3/4	0.75	80	SEAMLESS & DRAWN	ASTM B165 ASME SB165
3/4	0.75	40	SEAMLESS & DRAWN	ASTM 8165 ASME SB165
1/2	0.5	80	SEAMLESS & DRAWN	ASTM B165 ASME SB165
1/2	0.5	80	SEAMLESS & DRAWN	ASTM B165 ASME SB165

Weight Chart of ASTM B165 UNS N04400 Seamless Pipe

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.688	17.475	40	255.148	171.293
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

ASTM B165 UNS N04400 Pipe Pressure Rating Chart

Alloy 400 Pipe O.D. (in.)	Wall Thickness of Pipe (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1/8	7900	10100
1				2200	2900	3400	3900	4300
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
