ASTM A234 WP11 Fittings | SA 234 WP11 Elbow Manufacturer

ISO Approved Manufacturer of SA 234 WP11 Elbow in China , as per ASME B16.9

Table of Content

ASTM A234 WP11 Fittings Specification
Types of ASTM A234 WP11 Fittings
Weight Chart Of SA 234 WP11 Buttweld Fittings
SA 234 WP11 Buttweld Fittings Wall Thickness Chart
Dimensions Chart Of SA 234 WP11 Buttweld Fittings
Tolerance Chart of A234 WP11 Reducer
Pressure Ratings ASTM A234 Gr WP11 Seamless Fittings
Chemical Composition of A234 Grade WP11 End Cap
Mechanical Properties SA 234 WP11 Cl1 Bend
Mechanical Properties A234 WP11 CL3 Reducer
ASTM A234 WP11 CL3 Buttweld Fittings Mechanical Qualities

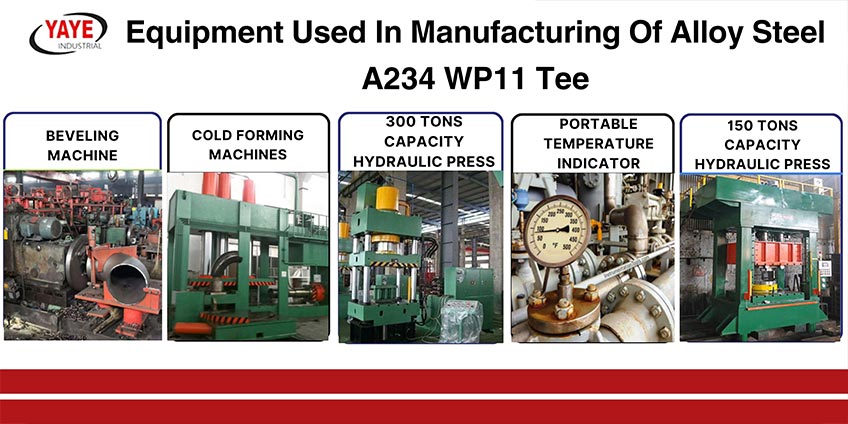

Equipment Used In Manufacturing Of Alloy Steel A234 WP11 Tee
Equivalent Standards Of A234 WP11 Elbow
HS Code of ASTM A234 WP11 Alloy Steel Fittings
Heat Treatment of SA 234 WP11 Buttweld Fittings
What Industries Benefit From Yaye Industrial ASTM A234 WP11 Fittings?

Get A234 Gr WP11 buttweld elbow & Alloy Steel WP11 Class 1 Welded Tee With Plain End, Check Specification & Various Types.

ASTM A234 WP11 Fittings Specification

SA 234 WP11 Fittings Sizes

Buttweld Size: ½" NB - 48" NB
Welded Size :½" NB - 120" NB
Seamless Size : 1/2″ To 24″

SA 234 Gr WP11 CL1 Reducer Common Thickness

Schedule : XS To 180
Schedule 20 & 40
Schedule : 80 To 160

A234 Gr WP11 buttweld elbow Standards

ASME B16.9
ASME B16.28
ANSI B16.25

ASTM A234 WP11 Fittings Testing

HIC Test
Hyrdrostatic test
PMI Test
Chemical Analysis

Elbow A234 WP11 Density

7.86 g/cm³

Alloy Steel A234 WP11 Tee Melting Point

600 °C

ASTM A234 Gr WP11 Seamless Fittings life

8 years

SA 234 WP11 Buttweld Fittings Hardness

217 HBW

A234 WP11 Elbow Types Of Coating

Anti rust
PE/ PTFE/ FBE coating
Back painting
Zinc coatings

Types of A234 Grade WP11 End Cap

Pipe bend
Reducer,End cap
Elbow, Tee, Stub end
Pipe cross

ASTM A234 Gr WP11 Concentric Reducer Manufacturing Process

Casting
Forged
Welding
Pushing

SA 234 WP11 Bend Origins

Germany
Qatar
China
Indonesia, India

A234 WP11 Reducer Documentation

100% Radiography Test Report
Fumigation certificates
Material traceability records

A234 Grade WP11 Welded Fittings Applications

Off-Shore
Petrochemicals
Pharmaceuticals
Suagr Industry

A234 Grade WP11 End Cap Advantages

Leakage Proof
Weldable
Strength
Long life Span

ASTM A234 Gr WP11 Concentric Reducer Bending

Inner diameter
Outer diameter
Thickness, Length
Straightness, Ovality

Methods of Alloy Steel A234 WP11 Tee

Buttweld
Seamless
Welded

ASTM A234 Gr WP11 Seamless Fittings Process

Plain End (PE)
Threaded End (TE)
Bevelled End (BE)

A234 WP11 Elbow Packaging

Carton
Wooden Box
Bubble Wraps
Bundled

SA 234 WP11 Buttweld Fittings Disadvantages

Sizing
Corrosions
Machining
Require Coatings

Types of ASTM A234 WP11 Fittings

ASTM A234 WP11 Fittings Supplier in China offers different types of commonly used fittings

SA 234 WP11 Bend

A234 WP11 Reducer

A234 Grade WP11 Welded Fittings

Alloy Steel A234 WP11 Tee

ASTM A234 Gr WP11 Seamless Fittings

SA 234 WP11 Buttweld Fittings

A234 WP11 Elbow

A234 Grade WP11 End Cap

ASTM A234 Gr WP11 Concentric Reducer

Weight Chart Of SA 234 WP11 Buttweld Fittings

ASTM A234 WP11 Fittings Manufacturer In china Offers superior Weight Chart Of fitting

DN			Schedule 805		Schedule 10S		Schedule 405
	90	90	45	Equal	45'	Equal	45	Equal	90"
	Elbow	Elbow	Elbow	tee	Elbow	tee	Elbow	tee	Elbow
100	2.10	4.47	2.81	7.71	1.08	3.46	2.09	5.27	6.18
20	0.07	0.08	0.05	0.20	0,03	0.13	0.04	0.17	0.11
8	0.02	0.03	0.03	0.07	0.01	0.03	0.02	0.06	0.04
10	0.03	0.03	0.04	0.09	0.02	0.05	0.02	0.03	0.06
15	0.06	0.08	0.05	0.14	0,03	0.09	0.04	0.10	0.10
25	0.14	0.15	0.14	0.38	0.08	0.28	0.11	0.29	0.22
40	0.30	0.40	0.29	1.02	0.17	0.68	0.23	0.86	0.51
32	0.23	0.26	0.23	0.68	0.11	0.49	0.17	0.59	0.40
50	0.50	0.70	0.59	1.59	0.25	0.85	0.40	1.28	0.91
80	1.25	2.20	1.50	4.45	0.63	1.77	1.08	3.31	2.97
65	0.85	1.40	0.99	3.13	0.48	1.41	0.77	2.19	1.81
90	1.70	2.83	2.00	5.44	0.75	2.67	1.42	4.08	4.00

SA 234 WP11 Buttweld Fittings Wall Thickness Chart

NPS	Schedule No	Wall Thickness inch mm	OD In inch mm	Weight lb/ft kg/m
1/8 6	5S	...	0.405 10.3	...
3/8 10	80S	0.126 3.20	0.675 17.1	0.74 1.10
6 150	5S	0.109 2.77	6.625 168.3	7.59 11.31
1-1/2 40	5S	0.065 1.65	1.900 48.3	1.28 1.90
1/4 8	10S	0.065 1.65	0.540 13.7	0.33 0.49
3/8 10	5S	...	0.675 17.1	...
1/2 15	5S	0.065 1.65	0.840 21.3	0.54 0.80
1-1/4 32	5S	0.065 1.65	1.660 42.2	1.11 1.65
2 50	5S	0.065 1.65	2.375 60.3	1.61 2.39
3 80	5S	0.083 2.11	3.500 88.9	3.03 4.52
2-1/2 65	5S	0.083 2.11	2.875 73	2.48 3.69
4 100	5S	0.083 2.11	4.500 114.3	3.92 5.84
3-1/2 90	5S	0.083 2.11	4.000 101.6	3.48 5.18
3/4 20	80S	0.154 3.91	1.050 26.7	1.48 2.20
1/2 15	80S	0.147 3.73	0.840 21.3	1.09 1.62
1 25	5S	0.065 1.65	1.315 33.4	0.68 1.02
5 125	5S	0.109 2.77	5.563 141.3	6.36 9.46

Dimensions Chart Of SA 234 WP11 Buttweld Fittings

NPS	OD		END TO END
Inch	D	P	H
1 1/4 x 3/4	42.02	26.07	51
3/4 x 1/2	26.07	21.03	38
3/4 x 3/8	26.07	17.01	38
1 1/2 x 1 1/2	48.03	42.02	64
1 1/2 x 1	48.03	33.04	64
2 x 1 1/2	60.03	48.02	76
1 x 3/4	33.04	26.07	51
1 x 1/2	33.04	21.03	51
2 x 1	60.03	33.04	76
2 x 3/4	60.03	26.07	76
1 1/4 x 1	42.02	33.04	51
2 1/2 x 1 1/4	73	42.02	89
1 1/4 x 1/2	42.02	21.03	51
1 1/2 x 3/4	48.03	26.07	64
1 1/2 x 1/2	48.03	21.03	64
2 1/2 x 1	73	33.04	89
3 x 2 1/2	88.09	73	89
3 x 2	88.09	60.03	89
3 x 1 1/2	88.09	48.03	89
3 x 1 1/4	88.09	42.02	89
3 1/2 x 3	101.06	88.09	102
2 x 1 1/4	60.03	42.02	76
2 1/2 x 2	73	60.03	89
2 1/2 x 1 1/2	73	48.03	89
3 1/2 x 2	101.06	60.03	102
4 x 3 1/2	114.03	101.06	102
4 x 3	114.03	88.09	102
3 1/2 x 1 1/4	101.06	42.02	102
4 x 2 1/2	114.03	73	102
3 1/2 x 1 1/2	101.06	48.03	102
3 1/2 x 21/2	101.06	73	102
4 x 2	114.03	60.03	102
5 x 3	141.03	88.09	127
5 x 2 1/2	141.03	73	127
4 x 1 1/2	114.03	48.03	102
5 x 4	141.03	114.03	127
5 x 3 1/2	141.03	101.06	127
12 x 5	323.09	141.03	203
6 x 5	168.03	141.03	140
6 x 4	168.03	114.03	140
14 x 12	355.06	323.09	330
5 x 2	141.03	60.03	127
10 x 4	273.01	114.03	178
12 x 10	323.09	273.01	203
6 x 3 1/2	168.03	101.06	140
8 x 3 1/2	219.01	101.06	152
10 x 8	273.01	219.01	178
10 x 6	273.01	168.01	178
16 x 12	406.04	323.09	356
6 x 3	168.03	88.09	140
6 x 2 1/2	168.03	73	140
8 x 6	219.01	168.03	152
16 x 10	406.04	273.01	356
10 x 5	273.01	141.03	178
14 x 10	355.06	273.01	330
14 x 8	355.06	219.01	330
12 x 8	323.09	219.01	203
8 x 5	219.01	141.03	152
8 x 4	219.01	114.03	152
12 x 6	323.09	168.03	203
14 x 6	355.06	168.03	330
16 x 14	406.04	355.06	356
16 x 8	406.04	219.01	356
18 x 14	457	355.06	381
24 x 18	610	457	508
18 x 12	457	323.09	381
16 x 6	406.04	168.03	356
24 x 20	610	508	508
24 x 10	559	273.01	508
24 x 10	610	273.01	508
18 x 16	457	406.04	381
18 x 10	457	273.01	381
18 x 8	457	219.01	381
20 x 8	508	219.01	508
22 x 20	559	508	508
22 x 18	559	457	508
20 x 18	508	457	508
20 x 16	508	406.04	508
22 x 16	559	406.04	508
22 x 14	559	355.06	508
22 x 12	559	323.09	508
24 x 22	610	559	508

Tolerance Chart of A234 WP11 Reducer

Normal Pipe Size	Center-to-End Dimensions	Over-all Len F	Over-all Len H	I. D. at End	O. D. at Bevel
1/2 to 2-1/2	+/- 0.06	+/- 0.12	+/- 0.06		+0.06
					-0.03
3 to 3-1/2	+/- 0.06	+/- 0.12	+/- 0.06	+/- 0.06	+/- 0.06
20 to 24	+/- 0.09	+/- 0.25	+/- 0.09	+/- 0.19	+0.25
					-0.12
4	+/- 0.06	+/- 0.12	+/- 0.06	+/- 0.06	+/- 0.06
					-0.19
32 to 48	+/- 0.19	+/- 0.38	+/- 0.19	+/- 0.19	+0.25
					-0.19
26 to 30	+/- 0.12	+/- 0.38	+/- 0.19	+/- 0.19	+0.25
5 to 8	+/- 0.06	+/- 0.25	+/- 0.06	+/- 0.06	+/- 0.06
10 to 18	+/- 0.09	+/- 0.25	+/- 0.09	+/- 0.12	+0.16
					-0.19

Pressure Ratings ASTM A234 Gr WP11 Seamless Fittings

Pressure ratings
Temperature Ratings		Classes
		150	300
			1/4 – 1 Inches	2 1/2 – 3 Inches	1 1/4 – 2 Inches
(oC)	(oF)		1/4 – 1 Inches	2 1/2 – 3 Inches	1 1/4 – 2 Inches
121	250	225	1575	825	1200
93	200	265	1785	910	1350
177	350	150	1150	650	900
149	300	185	1360	735	1050
204	400	–	935	560	750
260	500	–	510	385	450
232	450	–	725	475	600
-29 to 66	-20 to 150	300	2000	1000	1500
288	550	–	300	300	300

Chemical Composition of A234 Grade WP11 End Cap

A234 WP11	class1	class3	class 2
Cr	1.00–1.50	1.00–1.50	1.00–1.50
S	0.03	0.04	0.04
Mo	0.44–0.65	0.44–0.65	0.44–0.65
Si	0.50–1.00	0.50–1.00	0.50–1.00
P	0.03	0.04	0.04
Mn	0.30–0.60	0.30–0.80	0.30–0.80
C	0.05–0.15	0.05–0.20	0.05–0.20
