ASTM A234 WP9 Fittings

Home|ASTM A234 WP9 Fittings

Verified Manufacturer of Alloy Steel WP9 Buttweld Pipe Elbow in China, Provides Good Weldability

ASTM A234 WP9 Fittings

Table of Content

pipe-fitting-table-of-content

Get SA 234 Gr WP9 CL1 Elbow & A234 WP9 Alloy Steel Buttweld Fittings With Exhibit High Strength at the Higher Temperature, Check Specification

ASTM A234 WP9 Fittings Specification

Fitting size icon

Alloy Steel WP9 Pipe Fittings Sizes

  • Buttweld Size: ½" NB - 120" NB
  • Seamless Size : 1/2″ To 24″
  • Welded Size :½" NB - 120" NB
fitting thickness icon

SA 234 Gr WP9 CL1 Reducer Common Thickness

  • Schedule 20 & 40
  • Schedule : 80 To 160
  • Schedule : XS To 180
Standards

A234 WP9 Alloy Steel Welded Fittings Standards

  • ASME B16.9
  • ASME B16.28
  • ANSI B16.11
Pipe Testing

Alloy Steel WP9 Tee Testing

  • HIC Test
  • PMI Test
  • Chemical Analysis
  • Hyrdrostatic test
Density

Chrome Moly WP9 Seamless Fittings Density

  • 7.85 g/cm³
Melting Point

A234 WP9 Seamless Pipe Fittings Melting Point

  • 595°C - 690°C
life

Alloy Steel WP9 BW Fittings life

  • 8 years
Hardness

Alloy Steel WP9 Weld Fittings Hardness

  • 217 HB
coating icon

A234 WP9 Alloy Steel Reducer Types Of Coating

  • Anti rust
  • Zinc coatings
  • Back painting
  • PE/ PTFE/ FBE coating
fittings type

Types of Alloy Steel WP9 Weld Fittings

  • Pipe bend
  • Pipe cross
  • Elbow, Tee, Stub end
  • Reducer,End cap
pipe manufacturing process

Alloy Steel WP9 Tee Manufacturing Process

  • Casting
  • Pushing
  • Welding
  • Forged
Origins

SA 234 Gr WP9 CL1 Tee Origins

  • Qatar
  • Germany
  • Indonesia, India
  • China
Documentation

Alloy Steel WP9 Concentric Reducer Documentation

  • 100% Radiography Test Report
  • Fumigation certificates
  • Material traceability records
  • Raw material test reports
Applications

Chrome Moly WP9 End Cap Applications

  • Off-Shore
  • Petrochemicals
  • Heat Exchangers
  • Condensers
Methods

Methods of Alloy Steel WP9 Concentric Reducer

  • Welded
  • Seamless
  • Buttweld
Process icon

Alloy Steel WP9 Tee Process

  • Threaded End (TE)
  • Plain End (PE)
  • Bevelled End (BE)
Packaging

A234 WP9 Elbow Packaging

  • Carton
  • Bundled
  • Bubble Wraps
  • Wooden Box
Disadvantages

Chrome Moly WP9 Seamless Fittings Disadvantages

  • Temperature
  • May Corrode
  • Difficult Machining
  • Require Coatings
Advantages

Alloy Steel WP9 Concentric Reducer Advantages

  • Leak Proof
  • Weldable
  • Smooth Surface
  • Durability
pipe bending

Grade WP9 pipe Bending

  • Inner diameter
  • Straightness, Ovality
  • Thickness, Length
  • Outer diameter

Types of ASTM A234 WP9 Fittings


ASTM A234 WP9 Fittings Supplier in China offers multiple types of generally used fittings


Alloy Steel WP9 Bend

Alloy Steel WP9 Bend

SA 234 Gr WP9 CL1 Reducer

SA 234 Gr WP9 CL1 Reducer

A234 WP9 Alloy Steel Welded Fittings

A234 WP9 Alloy Steel Welded Fittings

Alloy Steel WP9 Tee

Alloy Steel WP9 Tee

Chrome Moly WP9 Seamless Fittings

Chrome Moly WP9 Seamless Fittings

ASME SA234 Chrome Moly Buttweld Fittings

ASME SA234 Chrome Moly Buttweld Fittings

A234 WP9 Elbow

A234 WP9 Elbow

ANSI B16.9 Alloy Steel WP9 End Cap

ANSI B16.9 Alloy Steel WP9 End Cap

Alloy Steel WP9 Concentric Reducer

Alloy Steel WP9 Concentric Reducer


Weight Chart SA 234 Gr WP9 Welded Fittings

ASTM A234 WP9 Fittings Manufacturer In china Offers excellent Weight Chart Of fitting

DN   Schedule 805 Schedule 10S Schedule 405
90 90 45 Equal 45' Equal 45 Equal 90"
Elbow Elbow Elbow tee Elbow tee Elbow tee Elbow
100 2.10 4.47 2.81 7.71 1.08 3.46 2.09 5.27 6.18
20 0.07 0.08 0.05 0.20 0,03 0.13 0.04 0.17 0.11
8 0.02 0.03 0.03 0.07 0.01 0.03 0.02 0.06 0.04
10 0.03 0.03 0.04 0.09 0.02 0.05 0.02 0.03 0.06
15 0.06 0.08 0.05 0.14 0,03 0.09 0.04 0.10 0.10
25 0.14 0.15 0.14 0.38 0.08 0.28 0.11 0.29 0.22
40 0.30 0.40 0.29 1.02 0.17 0.68 0.23 0.86 0.51
32 0.23 0.26 0.23 0.68 0.11 0.49 0.17 0.59 0.40
50 0.50 0.70 0.59 1.59 0.25 0.85 0.40 1.28 0.91
80 1.25 2.20 1.50 4.45 0.63 1.77 1.08 3.31 2.97
65 0.85 1.40 0.99 3.13 0.48 1.41 0.77 2.19 1.81
90 1.70 2.83 2.00 5.44 0.75 2.67 1.42 4.08 4.00

A234 WP9 Alloy Steel Welded Fittings Wall Thickness

NPS Weight In Kg (Small) Thick Inner Dia (Small)OD (Large) OD (Large)ID (Large) Thickness Length
14 x 8 68.6 0.322 7.976 8.62 14 13.124 0.438 13
24 x 18 285 0.562 16.876 18 24 22.624 0.688 20
16 x 10 96.5 0.365 10.02 10.75 16 15 0.5 14
16 x 8 96.5 0.322 7.976 8.62 16 15 0.5 14
20 x 12 205 0.406 11.938 12.75 20 18.812 0.594 20
20 x 18 205 0.562 16.876 18 20 18.812 0.594 20
24 x 20 285 0.594 18.812 24 22.624 0.688
16 x 6 96.5 0.28 6.06 6.62 16 15 0.5 14
12 x 6 35.8 0.28 6.06 6.62 12.75 11.938 0.406 8
14 x 12 68.6 0.406 11.938 12.75 14 13.124 0.438 13
20 x 8 205 0.322 7.976 8.62 20 18.812 0.594 20
12 x 10 35.8 0.365 10.02 10.75 12.75 11.938 0.406 8
20 x 16 205 0.5 15 16 20 18.812 0.594 20
18 x 8 131 0.322 7.976 8.62 18 16.876 0.562 15
24 x 10 285 0.365 10.02 10.75 24 22.624 0.688 20
16 x 12 96.5 0.406 11.938 12.75 16 15 0.5 14
16 x 14 96.5 0.438 13.124 14 16 15 0.5 14
20 x 10 205 0.365 10.02 10.75 20 18.812 0.594 20
12 x 8 35.8 0.322 7.976 8.62 12.75 11.938 0.406 8
14 x 10 68.6 0.365 10.02 10.75 14 13.124 0.438 13
12 x 4 35.8 0.237 4.026 4.5 12.75 11.938 0.406 8
24 x 14 285 0.438 13.124 14 24 22.624 0.688 20
12 x 5 35.8 0.258 5.044 5.56 12.75 11.938 0.406 8
14 x 6 68.6 0.28 6.06 6.62 14 13.124 0.438 13
20 x 14 205 0.438 13.124 14 20 18.812 0.594 20
18 x 10 131 0.365 10.02 10.75 18 16.876 0.562 15
18 x 14 131 0.438 13.124 14 18 16.876 0.562 15
24 x 16 285 0.5 15 16 24 22.624 0.688 20
18 x 16 131 0.5 15 16 18 16.876 0.562 15
18 x 12 131 0.406 11.938 12.75 18 16.876 0.562 15

Dimensions Chart Of SA234 Gr WP5 Fittings

Pipe Size O.D. (Outside Daimeter) Return Elbow 180 Deg Elbow 45 Deg Elbow 90 Deg
(inch) Long Radius Long Radius Long Radius Short Radius
( MM) (inch) Center - Center
(inch)		 Back - face
(inch)		 Center - Face
(inch)		 Radius
(inch)		 Center - Face
(inch)		 Center - Face
(inch)
4 114.3 4.500 12 8 1/4 2 1/2 8 6 4
10 273.1 10.750 30 20 3/8 6 1/4 15 15 10
3 1/2 101.6 4.000 10 1/2 7 1/4 2 1/4 7 5 1/4 3 1/2
6 168.3 6.625 18 12 5/16 3 3/4 12 9 6
1 1/4 42.2 1.660 3 3/4 2 3/4 1 1 7/8 1 1/4
8 219.1 8.625 24 16 5/16 5 12 12 8
2 60.3 2.375 6 4 3/16 1 3/8 4 3 2
3/4 26.7 1.050 2 1/4 1 11/16 7/16 1 1/8 –
2 1/2 73.0 2.875 7 1/2 5 3/16 1 3/4 5 3 3/4 2 1/2
5 141.3 5.563 15 10 5/16 3 1/8 10 7 1/2 5
1 33.4 1.315 3 2 3/16 7/8 1 1/2 1
1 1/2 48.3 1.900 4 1/2 3 1/4 1 1/8 3 2 1/4 1 1/2
3 88.9 3.500 9 6 1/4 2 6 4 1/2 3
1/2 21.3 0.840 2 1 7/8 5/8 1 1/2 –
12 323.9 12.750 36 24 3/8 7 1/2 18 18 12

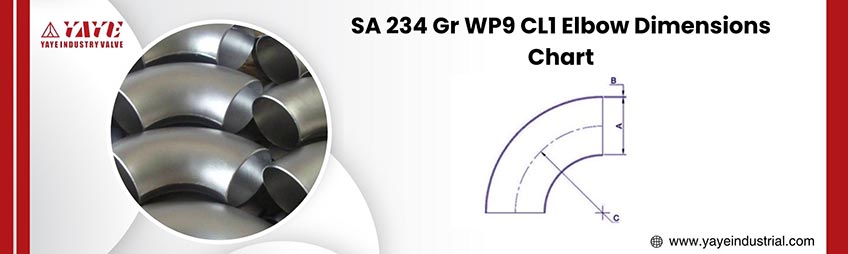

SA 234 Gr WP9 CL1 Elbow Dimensions Chart

Dimensions Chart Of SA234 Gr WP5 Fittings

NPS OD (B) (A)
3/4 26.7 24 57
44 1118.0 1389 3353
1-1/4 42.2 39 95
5 141.3 157 381
40 1016.0 1264 3048
6 168.3 189 457
42 1067.0 1326 3200
1-1/2 48.3 47 114
2 60.3 63 152
20 508.0 632 1524
22 559.0 694 1676
2-1/2 73.0 79 190
3 88.9 95 229
3-1/2 101.6 111 267
4 114.3 127 305
26 660.0 821 1981
1 33.4 31 76
8 219.1 252 610
10 273.0 316 762
36 914.0 1135 2743
28 711.0 883 2134
18 457.0 568 1372
34 864.0 1073 2591
38 965.0 1200 2896
30 762.0 964 2286
12 323.8 378 914
14 355.6 441 1067
24 610.0 757 1829
32 813.0 1010 2438
16 406.4 505 1219

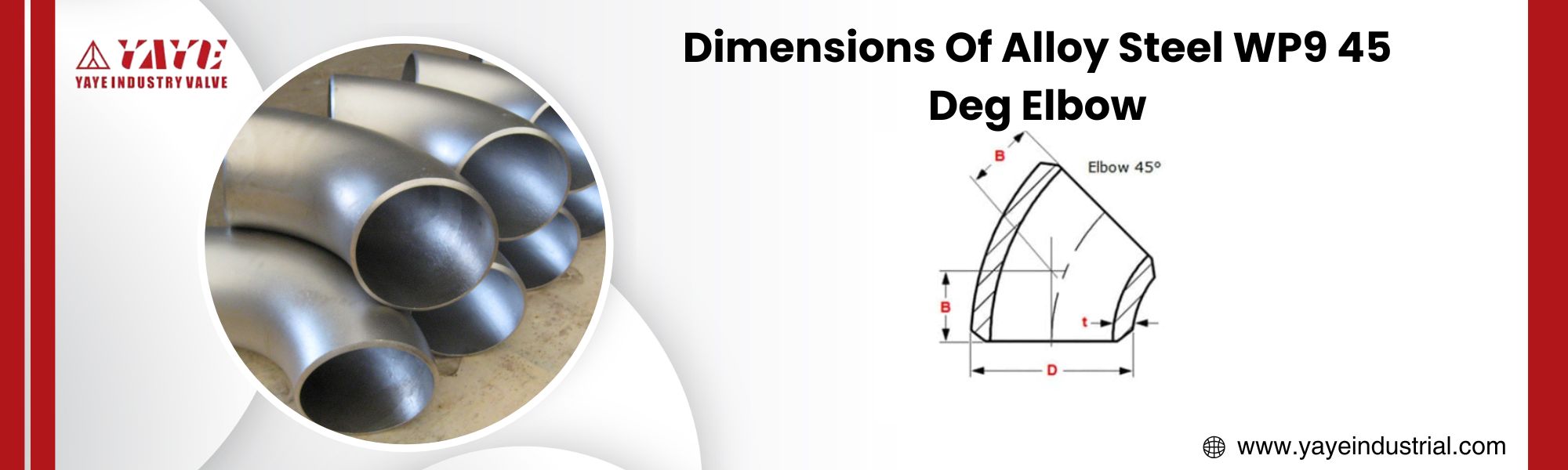

Dimensions Of Alloy Steel WP9 45 Deg Elbow

Dimensions Of Alloy Steel WP9 45 Deg Elbow

NPS OD (D) Center-End (B) Center-End (A) Center-End (A) Center-End (B)
1 33.4 31 76 38 22
1¼ 42.2 39 95 48 25
1/2 21.3 – – 38 16
3/4 26.7 24 57 38 19
2½ 73 79 190 95 44
6 168.3 189 457 229 95
3½ 101.6 111 267 133 57
4 114.3 127 305 152 64
3 88.9 95 229 114 51
5 141.3 157 381 190 79
22 559 694 1676 838 343
8 219.1 252 610 305 127
14 355.6 441 1067 533 222
16 406.4 505 1219 610 254
10 273 316 762 381 159
26 660 821 1981 991 406
12 323.8 378 914 457 190
18 457 568 1372 686 286
24 610 757 1829 914 381
1½ 48.3 47 114 57 29
2 60.3 63 152 76 35
28 711 883 2134 1067 438
34 864 1073 2591 1295 533
20 508 632 1524 762 318
30 762 964 2286 1143 470
32 813 1010 2438 1219 502
44 1118 1389 3353 1676 695
36 914 1135 2743 1372 565
42 1067 1326 3200 1600 660
38 965 1200 2896 1448 600
40 1016 1264 3048 1524 632
46 1168 1453 3505 1753 727
48 1219 1516 3658 1829 759

Pressure Ratings Chrome Moly WP9 Buttweld Fittings

Pressure ratings
Temperature Ratings Classes
150 300
1/4 – 1 Inches 2 1/2 – 3 Inches 1 1/4 – 2 Inches
(oC) (oF)
121 250 225 1575 825 1200
93 200 265 1785 910 1350
177 350 150 1150 650 900
149 300 185 1360 735 1050
204 400 – 935 560 750
260 500 – 510 385 450
232 450 – 725 475 600
-29 to 66 -20 to 150 300 2000 1000 1500
288 550 – 300 300 300

Tolerance Chart of ANSI B16.9 Alloy Steel WP9 Seamless Fittings

Normal Pipe Size Center-to-End Dimensions I. D. at End O. D. at Bevel Over-all Len F Over-all Len H
1/2 to 2-1/2 +/- 0.06 +0.06 +/- 0.12 +/- 0.06
-0.03
3 to 3-1/2 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.12 +/- 0.06
5 to 8 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.25 +/- 0.06
10 to 18 +/- 0.09 +/- 0.12 +0.16 +/- 0.25 +/- 0.09
-0.12
4 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.12 +/- 0.06
20 to 24 +/- 0.09 +/- 0.19 +0.25 +/- 0.25 +/- 0.09
-0.19
-0.19
32 to 48 +/- 0.19 +/- 0.19 +0.25 +/- 0.38 +/- 0.19
26 to 30 +/- 0.12 +/- 0.19 +0.25 +/- 0.38 +/- 0.19
-0.19

Chemical Composition of Alloy Steel WP9 Bend

ASTM A234 WP9 Fittings Manufacturer in China Provides accurate chemical qualities of fittings

Silicon(Si)

1

Carbon (C)

0.15

Sulphur(S)

0.03

Manganese(Mn)

0.6

Phosphorus (P)

0.03

Chromium(Cr)

8 - 10

Mechanical Properties ASME SA234 Chrome Moly Buttweld Fittings

Elongation

30 %

Yield Strength

585 MPa

Tensile Strength

380 MPa


Equivalent Standards Of A234 WP9 Elbow


DIN.

2605-2/1

GOST

17375


JIS

2605-2/1



HS Code of ASTM A234 WP9 Alloy Steel Fittings

Product HS Code
ASTM A234 WP9 Fittings 73072900

What Sizes of ASTM A234 WP9 Fittings Does Yaye Industrial Offer?

  • Welded Size :½" NB - 120" NB
  • Buttweld Size: ½" NB - 120" NB
  • Seamless Size : 1/2″ To 24″
