ASTM B366 UNS N10276 Fittings | Alloy C276 Elbow Manufacturer

Certified Manufacturer of Alloy C276 Elbow in China, Most Versatile Corrosion Resistant

Table of Content

ASTM B366 UNS N10276 Fittings Specification
Types of C276 Welded Buttweld Fittings
Hastelloy DIN 2.4819 Dimensions Chart
Weight chart of Alloy C276 Elbow
Hastelloy C276 Pipe Buttweld Fittings Welded Fittings
Schedule & Standards of Nickel C276 Weld Fittings
Hastelloy C-276 Fittings Equivalent
Chemical Composition of Hastelloy C-276 Pipe Fittings
Astm B366 Uns N10276 Fittings Mechanical Properties
Resistance Chart of C276 Welded Buttweld Fittings
How does Yaye Industrial handle large-scale orders?

Hastelloy C276 Pipe Buttweld Fittings & Nickel C276 Weld Fittings Available in Various Finishes and Schedule, Refer Specification

ASTM B366 UNS N10276 Fittings Specification

Alloy C276 Elbow Sizes

Welded Size : 24 – 96″ (BW)
Buttweld Size: 1/8" NB to 48" NB
Seamless Size : 1/2″ – 24″ (BW)

Hastelloy C276 Pipe Buttweld Fittings Common Thickness

Schedule : 80 To 160
Schedule STD , XH , XXH

Nickel C276 Weld Fittings Testing

Ultrasonic test
HIC tested
PMI Test
Magnetic Particle Examination

Hastelloy C-276 Fittings Standards

ASME B16.28
EN/ DIN 2.4819

Hastelloy C-276 Pipe Fittings Melting Point

1370°C (2500°F)

Astm B366 Uns N10276 Density

8.89 g/cm3

Hastelloy 10d Pipe Bend Hardness

250 to 280 HV

ANSI B16.9 Hastelloy C276 Welded Buttweld Fittings life

For many years

C276 Hastelloy End Cap Manufacturing Process

Hot forming
Mandrel

Hastelloy C276 Pipe Elbow Types Of Coating

PE/ PTFE/ FBE coating
Anti rust
Back painting/li>
Zinc coatings

Hastelloy DIN 2.4819 Origins

Qatar
Germany
China
Indonesia, India

Types of Hastelloy UNS N10276 Seamless Pipe Fittings

Reducer,End cap
Pipe bend
Pipe cross
Elbow, Tee, Stub end

UNS N10276 Fittings Applications

Pulp and Paper Industry
Pharmaceutical Manufacturing
Desalination Plants
Power Generation

Alloy C276 Elbow Documentation

Material traceability records
Raw material test reports
Heat treatment charts
Fumigation certificates

Hastelloy C276 Pipe Buttweld Fittings Bending

Hot Induction Bending
Roll Bending
Mandrel Bending
Ram-Type Bending

Nickel C276 Weld Fittings Disadvantages

Hot nitric acid

Hastelloy C-276 Fittings Packaging

Carton Box
Wooden Pallet
Wooden Cases

Hastelloy C-276 Pipe Fittings Advantages

Heat-resistant
Resistant to corrosion
Durable

Astm B366 Uns N10276 Process

Bevelled End (BE)
Threaded End (TE)
Plain End (PE)

Methods of ANSI B16.9 Hastelloy

Welded
Buttweld
Seamless

Types of C276 Welded Buttweld Fittings

ASTM B366 UNS N10276 Fittings Supplier in China offers a variety of the most popular types.

Alloy C276 Elbow Buttweld Fittings

Hastelloy C276 Welded Fittings

Nickel C276 Seamless Fittings

Alloy C276 Buttweld Elbow

Hastelloy C-276 Tee

ANSI B16.9 Hastelloy Reducer

C276 Welded Buttweld Fittings Concentric Reducer

C276 Hastelloy End Cap

Hastelloy C276 Bend

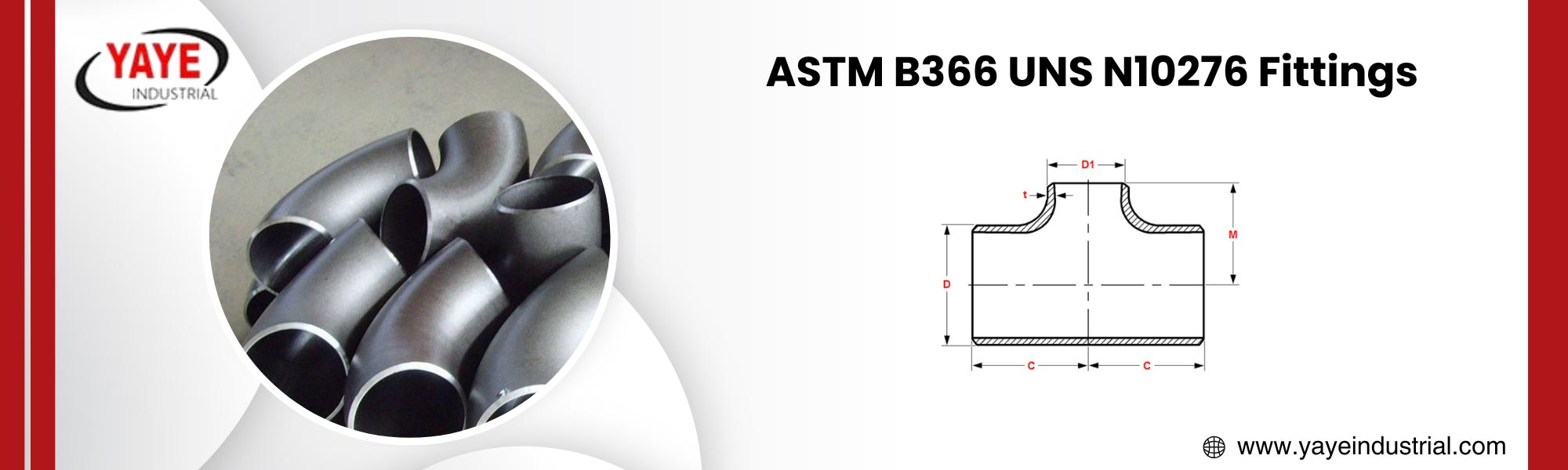

Hastelloy DIN 2.4819 Dimensions Chart

ASTM B366 UNS N10276 Fittings Manufacturer in China offers a wide Range of Dimensions

NPS (Normal Pipe Size)	O.D. (Outside Daimeter)		Elbow 90 Deg		Elbow 45 Deg		Return Elbow 180 Deg
(inch)			Long Radius Elbow	Short Radius	Long Radius Elbow		Long Radius Elbow
	(millimeter/ MM)	(inch./ Inches)	Center to Face (Inches)	Center to Face (Inches)	Center to Face (Inches)	Radius (Inches)	Center to Center (Inches)	Back to face (Inches)
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4

Weight chart of Alloy C276 Elbow

Nominal Pipe Size	DN	Weight I(Kg)	(Weight In Lbs)
3/4	DN20	0.09	0.19
4	DN100	4.08	9
1	DN25	0.18	0.4
3	DN80	2.27	5
1/2	DN15	0.08	0.18
1.1/2	DN40	0.41	0.9
2	DN50	0.73	1.6
12	DN300	56.7	125
8	DN200	22.68	50
6	DN150	11.11	24.5
10	DN250	39.92	88

Hastelloy C276 Pipe Buttweld Fittings Welded Fittings

Maximum Allowable Stress In KSI	Temperature In °F
22.3	1000
24.0	700
9.8	1200
27.3	200
22.6	900
23.1	800
25.2	600
27.3	400
15.0	1100
27.3	-20~100

Schedule & Standards of Nickel C276 Weld Fittings

Alloy C276 stub end standard	Type of C276 alloy stub end	C276 Hastelloy stub end schedule
MSS SP-43	Type A	Schedule 10S Schedule 5S
ASME B16.9	butt weld	Schedule XS Schedule STD
MSS SP-43	Type B	Schedule 10S Schedule 5S

Hastelloy C-276 Fittings Equivalent

UNS

N10276

WERKSTOFF NR.

2.4819

NiMo16Cr15W

JIS

NW 0276

ЭП760

GOST

ХН65МВУ

Chemical Composition of Hastelloy C-276 Pipe Fittings

Carbon

0.01 max

Phosphorus

0.04 max

Sulfur

0.03 max

Silicon

0.08 max

Manganese

1.0 max

Molybdenum

15 – 17

Chromium

14.5 – 16.5

Nickel

Balance

Astm B366 Uns N10276 Fittings Mechanical Properties

ASTM B366 UNS N10276 Fittings Manufacturer in China offers Excellent Mechanical Properties

Elongation

40%

Yield Strength

Psi – 52,000 , MPa – 355

Tensile Strength

Psi – 1,15,000 , MPa – 790

Melting Point

1370°C (2500°F)

Resistance Chart of C276 Welded Buttweld Fittings

Media	Mean Corrosion rate		Content Weight %	Temperature
Media	Hastelloy C276	Hastelloy C22	Content Weight %	Temperature. In ºF	Temperature. In ºC
Ferric Chloride	2	1	10	boiling	Boiling
Formic Acid	2	Below 1	88	boiling	Boiling
Hydrochloric acid	10	3	1	boiling	Boiling
Sulfuric Acid	4	1	50	150ºF	66 ºC
Nitric Acid + 6% HF	207	67	5	140 ºF	60 ºC
Acetic Acid	Below 1	None	99	boiling	Boiling

How does Yaye Industrial prevent leaks in its ASTM B366 UNS N10276 Fittings?

Using the proper bedding techniques
Assessment of the soil conditions prior to installation
