ASTM A403 WP317 Fittings Specification
Types of SS UNS S31700 Pipe Fittings
Dimensions Chart Of Stainless Steel 317 End Cap
Weight chart of ASTM A403 WP317 Buttweld Fittings
Stainless Steel 317 Concentric Reducer Dimensions Chart
How Are ASTM A403 Wp317 Fittings Made ?
SS UNS S31700 Pipe Fittings Equivalent Grades
Chemical Composition of Stainless Steel 317 Concentric Reducer
SS UNS S31700 Welded Pipe Fittings Mechanical Properties
Applications Of ASTM A403 WP317 Fittings
Difference Between ASTM A403 WP317 Fittings VS ASTM A234 WP5 Fittings
How Does Yaye International Wenzhou Satisfy Industry Standards For Producing ASTM A403 Wp317 Fittings ?

Get ASTM A403 WP317 Elbow Used in a Wide Range of Applications and Industries & Refer Stainless Steel 317 Reducer Specification.

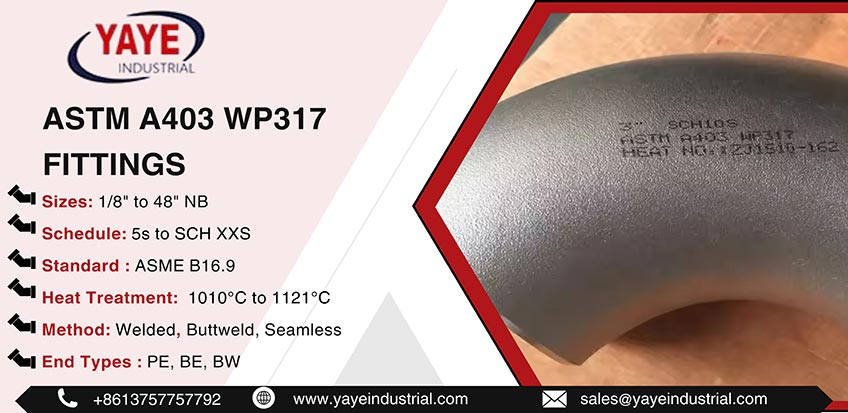

ASTM A403 WP317 Fittings Specification

ASTM A403 WP317 Buttweld Fittings Sizes

Welded Size : 1/2″ – 48″ (BW)
Buttweld Size: 1/2″ To 10″
Seamless Size : 1/2" - 10"

ASTM A403 WP317 Seamless Fittings Common Thickness

Schedule : XS, STD, XXS
Schedule : 10 To 160
Schedule : 5s To 80s

ASTM A403 WP317 Seamless Fittings Process

Threaded End (TE)
Plain End (PE)
Bevelled End (BE)

Methods of ASTM A403 WP317 Buttweld Fittings

Seamless
Buttweld
Welded

AStainless Steel 317 End Cap Testing

Hardness Test
Chemical Analysis
PMI Test
Mechanical Testing

SS UNS S31700 Pipe Fittings Standards

ASME/ANSI B16.9
ASME B16.28
MSS-SP-43

Stainless Steel 317 End Cap Method Of Pipe Bending

Inner diameter
Thickness, Length
Straightness, Ovality
Outer diameter

ASTM A403 WP317 Fittings Disadvantages

Visual defects
Weight
High Cost
Non-compliance

Stainless Steel 317 Elbow Melting Point

1400 °C (2550 °F)

Stainless Steel 317 End Cap Density

7.9 g/cm3

ASTM A403 WP317 Seamless Fittings Origins

Kuwait
Malaysia
China
Vietnam, India

Types of ANSI B16.9 Stainless Steel 317 Bend

Reducer,End cap
Elbow, Tee, Stub end
Pipe cross
Pipe bend

SS UNS S31700 Pipe Fittings Hardness

85 HRB (Max.)

Stainless Steel 317 End Cap life

Many years

ASTM A403 WP317 Seamless Fittings end Packaging

Bundled
Bubble Wraps
Wooden Box

ASTM A403 WP317 Fittings Advantages

Tensile strength
Aesthetic appeal
Durable
Corrosion resistance

Stainless Steel 317 Elbow Manufacturing Process

Pushing
Casting
Forged
Welding

SS UNS S31700 Pipe Fittings Types Of Coating

PE/ PTFE/ FBE coating
Zinc coatings
Anti rust
Back painting

Stainless Steel 317 End Cap Applications

Chemical industry
Paper industry
Textile industry
Aerospace industry

SS UNS S31700 Welded Pipe Fittings Documentation

Raw material test reports
Material traceability records
Heat treatment charts
Fumigation certificates

Types of SS UNS S31700 Pipe Fittings

ASTM A403 WP317 Fittings Supplier in China Provides A Selection Of The Most Popular Varieties.

ASTM A403 WP317 Fittings

Stainless Steel 317 Concentric Reducer

SS UNS S31700 Welded Pipe Fittings

ASTM A403 WP317 Buttweld Fittings

Stainless Steel 317 End Cap

ANSI B16.9 Stainless Steel 317 Bend

ASTM A403 WP317 Seamless Fittings

SS UNS S31700 Pipe Fittings

Stainless Steel 317 Elbow

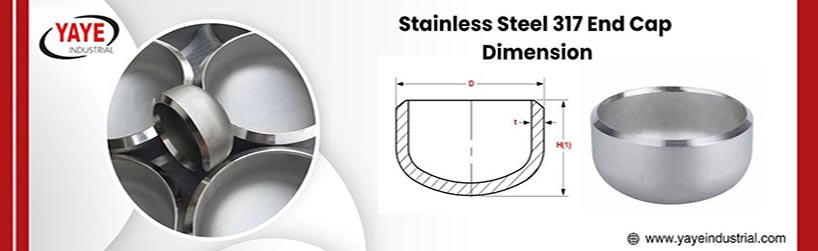

Dimensions Chart Of Stainless Steel 317 End Cap

ASTM A403 WP317 Fittings Manufacturer in China Provides A Wide Range Of Dimensions.

NOMINAL PIPE SIZE	180° RETURNS		45° ELBOWS		90° ELBOWS		OUTSIDE DIAMETER
(IN)	LONG RADIUS		LONG RADIUS		Short Radius	LONG RADIUS
	BACK TO FACE (IN)	CENTER TO CENTER (IN)	RADIUS (IN)	CENTER TO FACE (IN)	CENTER TO FACE (IN)	CENTER TO FACE (IN)	(IN)	(MM)
12	24 3/8	36	18	7 1/2	12	18	12.750	323.9
3	6 1/4	9	6	2	3	4 1/2	3.500	88.9
1/2	1 7/8	2		5/8	–	1 1/2	0.840	21.3
10	20 3/8	30	15	6 1/4	10	15	10.750	273.1
3/4	1 11/16	2 1/4		7/16	–	1 1/8	1.050	26.7
2	4 3/16	6	4	1 3/8	2	3	2.375	60.3
8	16 5/16	24	12	5	8	12	8.625	219.1
2 1/2	5 3/16	7 1/2	5	1 3/4	2 1/2	3 3/4	2.875	73.0
1	2 3/16	3		7/8	1	1 1/2	1.315	33.4
6	12 5/16	18	12	3 3/4	6	9	6.625	168.3
3 1/2	7 1/4	10 1/2	7	2 1/4	3 1/2	5 1/4	4.000	101.6
1 1/4	2 3/4	3 3/4		1	1 1/4	1 7/8	1.660	42.2
5	10 5/16	15	10	3 1/8	5	7 1/2	5.563	141.3
1 1/2	3 1/4	4 1/2	3	1 1/8	1 1/2	2 1/4	1.900	48.3
4	8 1/4	12	8	2 1/2	4	6	4.500	114.3

Weight chart of ASTM A403 WP317 Buttweld Fittings

PRODUCT RANGE & THEORETICAL WEIGHTS (KG)
DN	SCHEDULE 80S			SCHEDULE 40S			SCHEDULE 10S
DN	EQUAL TEE	45° ELBOW	90° ELBOW	EQUAL TEE	45° ELBOW	90° ELBOW	EQUAL TEE	45° ELBOW	90° ELBOW
65	3.13	0.99	1.81	2.19	0.77	1.40	1.41	0.48	0.85
300	83.91	39.69	79.38	62.14	29.71	59.42	39.46	13.62	25.80
8	0.07	0.03	0.04	0.06	0.02	0.03	0.03	0.01	0.02
250	49.90	25.86	51.71	35.38	19.27	38.56	26.46	9.75	18.15
50	1.59	0.59	0.91	1.28	0.4	0.70	0.85	0.25	0.50
10	0.09	0.04	0.06	0.03	0.02	0.03	0.05	0.02	0.03
80	4.45	1.50	2.97	3.31	1.08	2.20	1.77	0.63	1.25
200	28.12	16.56	33.11	20.91	10.77	21.54	15.65	5.33	10.20
15	0.14	0.05	0.10	0.10	0.04	0.08	0.09	0.03	0.06
40	1.02	0.29	0.51	0.86	0.23	0.40	0.68	0.17	0.30
150	13.61	8.16	16.32	10.99	5.44	10.89	8.07	2.72	5.45
20	0.20	0.05	0.11	0.17	0.04	0.08	0.13	0.03	0.07
100	7.71	2.81	6.18	5.27	2.09	4.47	3.46	1.08	2.10
25	0.38	0.14	0.22	0.29	0.11	0.15	0.28	0.08	0.14
90	5.44	2.00	4.00	4.08	1.42	2.83	2.67	0.75	1.70
32	0.68	0.23	0.40	0.59	0.17	0.26	0.49	0.11	0.23

Stainless Steel 317 Concentric Reducer Dimensions Chart

NOMINAL PIPE SIZE	OUTSIDE DIAMETER		REDUCERS
REDUCED FROM (INCHES)	(IN)	(MM)	CONCENTRIC & ECCENTRIC LENGTH (IN)	REDUCED TO (IN)
12	12.750	323.9	8	6
			8	10
			8	8
			8	5
1	1.315	33.4	2	3/4
			2	1/2
			2	3/8
8	8.625	219.1	6	4
			6	5
			6	3 1/2
			6	6
			6	3
1/2	0.840	21.3	1 1/2	3/8
1/2	0.840	21.3	1 1/2	1/4
3	3.500	88.9	3 1/2	2
			3 1/2	1 1/2
			3 1/2	1
			3 1/2	2 1/2
6	6.625	168.3	5 1/2	3 1/2
			5 1/2	5
			5 1/2	3
			5 1/2	4
			5 1/2	2 1/2
3/4	1.050	26.7	2	1/2
3/4	1.050	26.7	2	3/8
5	5.563	141.3	5	4
			5	2
			5	3 1/2
			5	3
			5	2 1/2
1 1/4	1.660	42.2	2	1
			2	3/4
			2	1/2
10	10.750	273.1	7	5
			7	8
			7	6
			7	4
1 1/2	1.900	48.3	2 1/2	1 1/4
			2 1/2	1/2
			2 1/2	1
			2 1/2	3/4
4	4.500	114.3	4	3 1/2
			4	2 1/2
			4	1 1/2
			4	3
			4	2
2	2.375	60.3	3	1 1/2
			3	3/4
			3	1 1/4
			3	1
3 1/2	4.000	101.6	4	3
			4	1 1/4
			4	2 1/2
			4	2
			4	1 1/2
2 1/2	2.875	73.0	3 1/2	2
			3 1/2	1
			3 1/2	1 1/2
			3 1/2	1 1/4

How Are ASTM A403 Wp317 Fittings Made ?

They Undergo Heat-treatment
Made By Hammering, Pressing, Piercing, Extruding, Upsetting, Rolling, Bending, And Machining
Chemical And Product Analyses Are Performed To Ensure They Conform To The Required Chemical Composition

SS UNS S31700 Pipe Fittings Equivalent Grades

WERKSTOFF NR.

1.4449

JIS

SUS 317

UNS

S31700

Chemical Composition of Stainless Steel 317 Concentric Reducer

Sulfur

0.030 max

Phosphorus

0.045 max

Carbon

0.08 Max

Silicon

1.0 Max

Manganese

2.0 Max

Nickel

11.00 – 15.00

Chromium

18.00 – 20.00

Iron

57.845 min

SS UNS S31700 Welded Pipe Fittings Mechanical Properties

ASTM A403 WP317 Fittings Manufacturer in China Provides Excellent Mechanical Properties.

Elongation

35 %

Yield Strength

Psi – 30000 , MPa – 205

Tensile Strength

Psi – 75000 , MPa – 515

Melting Point

1400 °C (2550 °F)

Applications Of ASTM A403 WP317 Fittings

Testing Plans and Inspection

Textile Industry
Chemical Equipment Manufacturing
Paper Pulping
Aerospace Industry
Refining Industry
Oil and gas

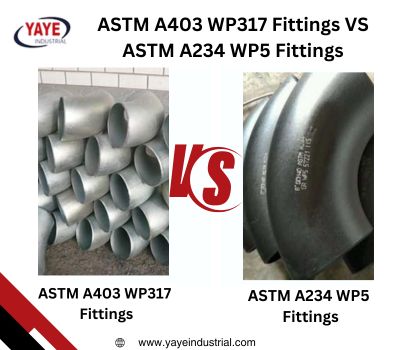

Difference Between ASTM A403 WP317 Fittings VS ASTM A234 WP5 Fittings

	ASTM A403 WP317 Fittings	ASTM A234 WP5 Fittings
Material	Stainless steel	Alloy steel
Applications	Pressure piping	Chemical equipment, boilers, mining, refineries
Composition	Stainless steel forgings, bars, plates, or seamless or welded tubular products	forgings, bars, plates, seamless or fusion-welded tubular products with filler metal added

Difference ASTM A403 WP317 Fittings VS ASTM A234 WP5 Fittings

How Does Yaye International Wenzhou Satisfy Industry Standards For Producing ASTM A403 Wp317 Fittings ?

Manufacturer Must Ensure That The Fittings Are Made From The Correct Stainless Steel Alloy
Adhere To The Specified Chemical Composition
Undergo Proper Forming And Heat Treatment Processes
Imensional Checks And Non-destructive Testing
