ASTM B366 UNS N04400 Fittings

Home|ASTM B366 UNS N04400 Fittings

Tested Manufacturer of Alloy 400 Buttweld Pipe Elbow in China, at factory price

ASTM B366 UNS N04400 Fittings

Table of Content

pipe-fitting-table-of-content

Genuine Supplier of Monel 400 Buttweld Fittings in Zhejiang & Refer ASTM B366 Monel Tee Specification & Composition

ASTM B366 UNS N04400 Fittings Specification

Fitting size icon

Alloy 400 Buttweld Pipe Elbow Sizes

  • Welded Size : 1/2″ – 48″
  • Buttweld Size: 1/2″ To 72″
  • Seamless Size : 1/2″ – 10″
fitting thickness icon

Monel 400 pipe Cap Common Thickness

  • Schedule 25s - XXS
Pipe Testing

Monel 400 buttweld fittings Testing

  • Flattening Test
  • Hardness Test
  • Chemical Analysis
  • Mechanical Testing
Standards

ASTM B366 Monel 400 Buttweld Fittings Standards

  • ASME B16.28
  • MSS-SP-43
  • ASME/ANSI B16.9
Melting Point

Monel 400 Alloy Buttweld Fittings Melting Point

  • 1350 °C (2460 °F)
Density

Monel Alloy Buttweld Tees Density

  • 8.8 g/cm3
Hardness

Monel 400 Buttweld Fittings Hardness

  • 60-80 HBW
life

ASTM B366 Monel 400 Buttweld Pipe Fittings life

  • > 30 years
pipe manufacturing process

Monel 400 Butt weld Fittings Manufacturing Process

  • Pushing
  • Casting
  • Welding
  • Forged
coating icon

ASTM B366 Monel 400 Elbow Types Of Coating

  • PE/ PTFE/ FBE coating
  • Zinc coatings
  • Back painting/li>
  • Anti rust
Origins

ASTM B366 Fittings Origins

  • China
  • Qatar
  • Germany
  • Indonesia, India
fittings type

Types of ASTM B366 UNS N04400 Fittings

  • Pipe cross
  • Pipe bend
  • Reducer,End cap
  • Elbow, Tee, Stub end
Applications

Alloy 400 Buttweld Pipe Elbow Applications

  • Pharmaceuticals
  • Heat Exchangers
  • Sea Water Equipment
  • Gas Processing
Documentation

Monel 400 Buttweld Fittings Documentation

  • Heat treatment charts
  • Material traceability records
  • Fumigation certificates
  • Raw material test reports
pipe bending

ASTM B366 Monel Tee Bending

  • Straightness, Ovality
  • Thickness, Length
  • Inner diameter
  • Outer diameter
Disadvantages

Monel 400 buttweld fittings Disadvantages

  • Magnetic properties
  • Oxidizing acid salts
  • Hardening/li>
Packaging

Monel 400 tee Packaging

  • Wooden Box
  • Bubble Wraps
  • Bundled
Advantages

ASTM B366 Monel 400 Buttweld Fittings Advantages

  • Good weldability
  • Corrosion resistance
  • High strength
Process icon

Monel 400 Alloy Buttweld Fittings Process

  • Bevelled End (BE)
  • Threaded End (TE)
  • Plain End (PE)
Methods

Methods of ASTM B366 Monel Buttweld Pipe

  • Buttweld
  • Seamless
  • Welded

Types of Alloy 400 Buttweld Pipe Elbow


ASTM B366 UNS N04400 Fittings Supplier in China, Available in Multiple froms


Monel 400 Buttweld Fittings

Monel 400 Buttweld Fittings

ASTM B3666 UNS N04400 Welded Fittings

ASTM B3666 UNS N04400 Welded Fittings

UNS N04400 Seamless Fittings

UNS N04400 Seamless Fittings

ASTM B366 Monel 400 Elbow

ASTM B366 Monel 400 Elbow

Monel 400 Alloy Buttweld Fittings Tee

Monel 400 Alloy Buttweld Fittings Tee

Monel UNS N04400 Butt Weld Reducer

Monel UNS N04400 Butt Weld Reducer

Alloy 400 Buttweld Concentric Reducer

Alloy 400 Buttweld Concentric Reducer

ASTM B366 Monel Tee End Cap

ASTM B366 Monel Tee End Cap

Monel 400 tee Bend

Monel 400 tee Bend

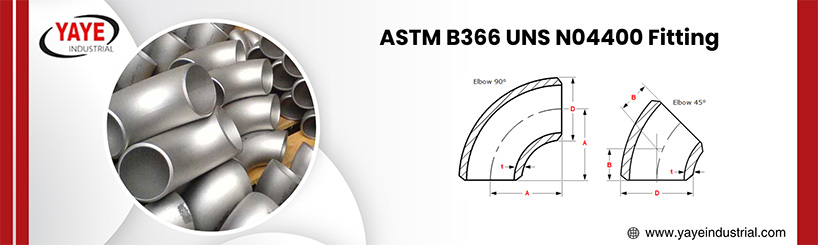

ASTM B366 Elbow Dimensions Chart

ASTM B366 UNS N04400 Fittings Manufacturer in China offers a wide Range of Dimensions

ASTM B366 Elbow Dimensions Chart

NPS (Normal Pipe Size) O.D. (Outside Daimeter) Elbow 90 Deg Elbow 45 Deg Return Elbow 180 Deg
(inch) Long Radius Elbow Short Radius Long Radius Elbow Long Radius Elbow
(millimeter/ MM) (inch./ Inches) Center to Face
(Inches)		 Center to Face
(Inches)		 Center to Face
(Inches)		 Radius
(Inches)		 Center to Center
(Inches)		 Back to face
(Inches)
6 168.3 6.625 9 6 3 3/4 12 18 12 5/16
8 219.1 8.625 12 8 5 12 24 16 5/16
10 273.1 10.750 15 10 6 1/4 15 30 20 3/8
12 323.9 12.750 18 12 7 1/2 18 36 24 3/8
1/2 21.3 0.840 1 1/2 – 5/8 2 1 7/8
1 1/4 42.2 1.660 1 7/8 1 1/4 1 3 3/4 2 3/4
1 1/2 48.3 1.900 2 1/4 1 1/2 1 1/8 3 4 1/2 3 1/4
4 114.3 4.500 6 4 2 1/2 8 12 8 1/4
5 141.3 5.563 7 1/2 5 3 1/8 10 15 10 5/16
2 60.3 2.375 3 2 1 3/8 4 6 4 3/16
2 1/2 73.0 2.875 3 3/4 2 1/2 1 3/4 5 7 1/2 5 3/16
3 88.9 3.500 4 1/2 3 2 6 9 6 1/4
3/4 26.7 1.050 1 1/8 – 7/16 2 1/4 1 11/16
1 33.4 1.315 1 1/2 1 7/8 3 2 3/16
3 1/2 101.6 4.000 5 1/4 3 1/2 2 1/4 7 10 1/2 7 1/4

Weight chart of UNS N04400 Fittings

DN 40 65 8 15 25 200 300 80 100
Schedule 10S 450 Elbow .17 .48 .01 .03 .08 5.33 13.62 .63 1.08
900 Elbow .3 .85 .02 .06 .14 1 .2 25.8 1.25 2.1
Equal tee .68 1.41 .03 .09 .28 15.65 39.46 1.77 3.46
Schedule 40S 450 Elbow .23 .77 .02 .04 .11 1 .77 29.71 1.08 2.09
900 Elbow .4 1.4 .03 .08 .15 21.54 59.42 2.2 4.47
Equal tee .86 2.19 .06 .1 .29 2 .91 62.14 3.31 5.27
Schedule 80S 450 Elbow .29 .99 .03 .05 .14 16.56 39.69 1.5 2.81
900 Elbow .51 1.81 .04 .1 .22 33.11 79.38 2.97 6.18
Equal tee 1.02 3.13 .07 .14 .38 28.12 83.91 4.45 7.71

Alloy 400 Buttweld Pipe Elbow Tolerance Chart

Monel Pipe Fittings Tolerance 90 Deg And 45 Deg
Elbows And Pipe Tee		 Pipe End Caps Reducer (Concentric/ Eccentric)
& Lap Joint
Stub End (Long / Short)
Normal Pipe Size Of ASME B16.9 I. (Inside)
D.(Daimeter)
at End		 O. (Outside)
D. (Daimeter)
at Bevel		 Wall Thickness Of T Center-to-End
Dimension
A ,C ,B		 Over-all
Length Of F		 Over-all
Length Of H
1/2 to 2-1/2 +0.06 Not less than 87.5%
of nominal thickness		 +/- 0.06 +/- 0.12 +/- 0.06
-0.03
3 to 3-1/2 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.12 +/- 0.06
4 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.12 +/- 0.06
5 to 8 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.25 +/- 0.06
10 to 18 +/- 0.12 +0.16 +/- 0.09 +/- 0.25 +/- 0.09
-0.12
20 to 24 +/- 0.19 +0.25 +/- 0.09 +/- 0.25 +/- 0.09
-0.19
26 to 30 +/- 0.19 +0.25 +/- 0.12 +/- 0.38 +/- 0.19
-0.19
32 to 48 +/- 0.19 +0.25 +/- 0.19 +/- 0.38 +/- 0.19


ASTM B366 Monel Tee Equivalent

UNS

N04400

WERKSTOFF NR.

2.4360

AFNOR

NU-30M

EN

NiCu30Fe

JIS

NW 4400

GOST

МНЖМц 28-2,5-1,5

Chemical Composition of ASTM B366 Monel 400 Buttweld Fittings

Aluminium

0.50 max

Nickel

63.0 min

Sulfur

0.02 max

Silicon

0.5 max

Manganese

2.0 max

Carbon

0.3 max

Chromium

28.0 – 34.0


Monel 400 Alloy Buttweld Fittings Mechanical Properties

ASTM B366 UNS N04400 Fittings Manufacturer in China, With Excellent mechanical properties are provided by a Chinese manufacturer.

Yield Strength

Psi – 35,000 , MPa – 240

Melting Point

1350 °C (2460 °F)


Tensile Strength

4Psi – 80,000 , MPa – 550

Elongation

40 % min

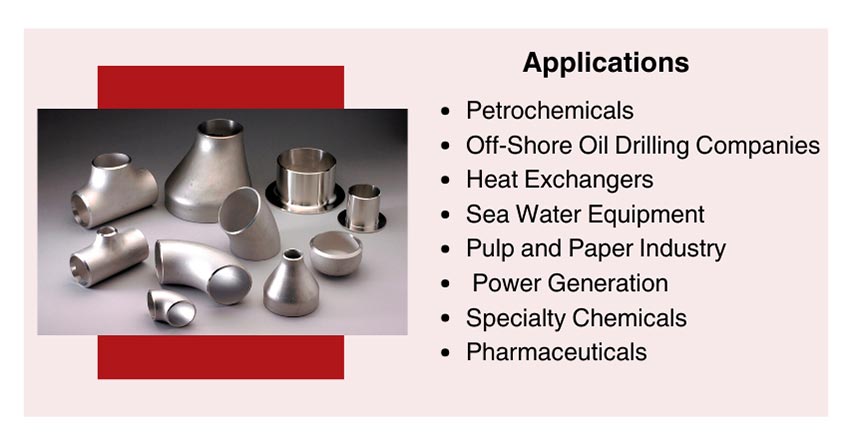

Applications of Monel 400 Butt weld Fittings

Applications of Monel 400 Butt weld Fittings

Does Yaye Industrial provide warranties for its pipes Fittings?

  • Implied Warranty
  • Express Warranty
  • Consumer Protection
