ASTM B366 UNS N06625 Fittings

Home|ASTM B366 UNS N06625 Fittings

Manufacturer of Alloy 625 Elbow in China, for High-quality Material with MTC

ASTM B366 UNS N06625 Fittings

Table of Content

pipe-fitting-table-of-content

Inconel 625 Pipe Fittings & 625 Nickel Alloy Welded Pipe Fittings Available With Excellent Chemical Composition and Specifications.

ASTM B366 UNS N06625 Fittings Specification

Fitting size icon

Alloy 625 Elbow Fitting Sizes

  • Welded Size : 24 – 96″ (BW)
  • Seamless Size : 1/2″ – 24″ (BW)
fitting thickness icon

Inconel 625 Pipe Fittings Common Thickness

  • 0.35–30 mm
Pipe Testing

625 Nickel Alloy Welded Pipe Fittings Testing

  • Magnetic Particle Examination
  • Ultrasonic test
  • HIC tested
  • PMI Test
Standards

Alloy 625 Buttweld Elbow Standards

  • ASME B16.49
  • ASME B16.9
Melting Point

Nickel alloy 625 elbow Melting Point

  • 1290-1350 °C
Density

Alloy 625 elbow Density

  • 8.44 g/cm³
Hardness

Inconel Alloy 625 Welded End Cap Hardness

  • 145–220
life

Alloy Inconel 625 life

  • For many years
pipe manufacturing process

625 Inconel Forged Fittings Manufacturing Process

  • Mandrel
  • Hot forming
coating icon

Inconel Alloy 625 Steel Fittings Types Of Coating

  • Back painting/li>
  • PE/ PTFE/ FBE coating
  • Anti rust
  • Zinc coatings
Origins

Inconel 625 Fittings Origins

  • China
  • Russia
  • Germany
  • Indonesia, India
fittings type

Types of ASME B16.9 Inconel 625 Fittings

  • Pipe bend
  • Pipe cross
  • Reducer,End cap
  • Elbow, Tee, Stub end
Applications

Alloy 625 fittings Applications

  • Marine Engineering
  • Heat Exchangers
  • High-Temperature Valves
  • Chemical Processing
Documentation

Alloy 625 Buttweld Elbow Documentation

  • Heat treatment charts
  • Material traceability records
  • Raw material test reports
  • Fumigation certificates
pipe bending

ASTM B366 Inconel 625 Buttweld Fitting Bending

  • Mandrel Bending
  • Hot Induction Bending
  • Ram-Type Bending
  • Roll Bending
Disadvantages

UNS N06625 Tee Disadvantages

  • Hard to machine
  • Expensive
Packaging

Inconel 625 tube fittings Packaging

  • Carton Box
  • Wooden Cases
  • Wooden Pallet
Advantages

Din 2.4856 Welded Buttweld Fittings Advantages

  • Excellent fabricability
  • Corrosion resistance
  • High strength
Process icon

Inconel 625 Buttweld Fittings Process

  • Plain End (PE)
  • Threaded End (TE)
  • Bevelled End (BE)
Methods

Methods of UNS N06625

  • Buttweld
  • Welded
  • Seamless

Types of ASTM B366 UNS N06625 Fittings


ASTM B366 UNS N06625 Fittings Supplier in China offers a variety of the most popular types.


Alloy 625 Elbow Buttweld Fittings

Alloy 625 Elbow Buttweld Fittings

Inconel 625 Pipe Welded Fittings

Inconel 625 Pipe Welded Fittings

625 Nickel Alloy Welded Seamless Fittings

625 Nickel Alloy Welded Seamless Fittings

Alloy 625 Buttweld Elbow

Alloy 625 Buttweld Elbow

Nickel alloy 625 Tee

Nickel alloy 625 Tee

Alloy 625 Reducer

Alloy 625 Reducer

ASME B16.9 Inconel Concentric Reducer

ASME B16.9 Inconel Concentric Reducer

Alloy 625 Buttweld End Cap

Alloy 625 Buttweld End Cap

UNS N06625 Bend

UNS N06625 Bend

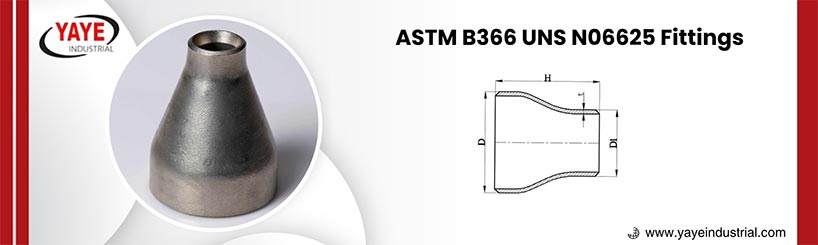

Alloy 625 Reducer Dimensions Chart

ASTM B366 UNS N06625 Fittings Manufacturer in China offers a wide Range of Dimensions

ASTM A234 WPB Elbow Dimensions Chart

Nominal Pipe Size
(Inches)		 Outside diameterof barrel Length (F) Diameter (G) Radii (R)
Minimum Maximum LongPattern ShortPattern
18 456.0 462.0 305 152 533 13
20 507.0 514.0 305 152 584 13
22 558.0 565.0 305 152 641 13
24 609.0 616.0 305 152 692 13
1/2 20.5 22.8 76 51 35 3
3/4 25.9 28.1 76 51 43 3
1 32.6 35.0 102 51 51 3
1 1/4 41.4 43.6 102 51 64 5
1 1/2 47.5 49.9 102 51 74 6
2 59.5 62.4 152 64 92 8
3 88.1 91.3 152 64 127 10
3 1/2 100.8 104.0 152 76 140 10
4 113.5 116.7 152 76 157 11
14 354.8 359.9 305 152 413 13
16 405.6 411.0 305 152 470 13
5 140.5 144.3 203 76 186 11
6 167.5 171.3 203 89 216 13
8 218.3 222.1 203 102 270 13
10 272.3 277.2 254 127 324 13
2 1/2 72.2 75.3 152 64 105 8
12 323.1 328.0 254 152 381 13

Weight chart of Inconel 625 Pipe Fittings

DN (Normal Pipe Size) For ASME B16.9

Schedule 10S

Schedule 40S

Schedule 80S

Elbow 90 Deg

 Elbow 45 Deg B16.9 Equal Tee

Elbow 90 Deg

 Elbow 45 Deg

B16.9 Equal Tee

 Elbow 90 Deg Elbow 45 Deg

B16.9 Equal Tee

150

5.45

2.72

8.07

10.89

5.44

10.99

16.32

8.16

13.61

200

10.20

5.33

15.65

21.54

10.77

20.91

33.11

16.56

28.12

250

18.15

9.75

26.46

38.56

19.27

35.38

51.71

25.86

49.90

300

25.80

13.62

39.46

59.42

29.71

62.14

79.38

39.69

83.91

8

0.02

0.01

0.03

0.03

0.02

0.06

0.04

0.03

0.07

15

0.06

0.03

0.09

0.08

0.04

0.10

0.10

0.05

0.14

20

0.07

0.03

0.13

0.08

0.04

0.17

0.11

0.05

0.20

90

1.70

0.75

2.67

2.83

1.42

4.08

4.00

2.00

5.44

100

2.10

1.08

3.46

4.47

2.09

5.27

6.18

2.81

7.71

25

0.14

0.08

0.28

0.15

0.11

0.29

0.22

0.14

0.38

32

0.23

0.11

0.49

0.26

0.17

0.59

0.40

0.23

0.68

40

0.30

0.17

0.68

0.40

0.23

0.86

0.51

0.29

1.02

50

0.50

0.25

0.85

0.70

0.4

1.28

0.91

0.59

1.59

65

0.85

0.48

1.41

1.40

0.77

2.19

1.81

0.99

3.13

10

0.03

0.02

0.05

0.03

0.02

0.03

0.06

0.04

0.09

80

1.25

0.63

1.77

2.20

1.08

3.31

2.97

1.50

4.45


Alloy C625 Heat Treatment

Type Condition Time Cooling Temperature Stress Relieve Annealed 0.5 – 1hr Air
  • 500 – 700°F
  • 260 – 370°C


Nickel alloy 625 elbow Equivalent

UNS

N06625

WNR.

2.4856

BN

NA 21

AFNOR

NC22DNB4M

JIS

NCF 625

GOST

ХН75МБТЮ



Chemical Composition of Alloy 625 elbow

Carbon

0.10 max

Aluminium

0.40 max

Sulfur

0.015 max

Silicon

0.50 max

Manganese

0.50 max

Iron

5.0 max

Chromium

20.0 – 23.0

Nickel

58.0 min

Inconel Alloy 625 Welded End Cap Mechanical Properties

ASTM B366 UNS N06625 Fittings Manufacturer in China offers Excellent Mechanical Properties

Elongation

42.5%

Yield Strength

Psi – 75,000 , MPa – 517

Tensile Strength

Psi – 75,000 , MPa – 517



Resistance Chart of ASME B16.9 Inconel 625 Fittings

Grade Corrosion Rate In mpy Corrosion Rate In mm/a
Nickel 625 6.8-7.8 0.170-0.19
