ASTM A358 Stainless Steel EFW Pipe

Home|ASTM A358 Stainless Steel EFW Pipe

Trusted Supplier of SS ASTM A358 CL2 EFW Pipe in China, for High-Temperature Applications

ASTM A358 Stainless Steel EFW Pipe

Get Stainless Steel EFW Pipes & Stainless Steel ASTM A358 EFW Pipes With 6NB to 1200NB OD , Refer Specification & Application

ASTM A358 Stainless Steel EFW Pipe Specification

pipe size icon

ASTM A358 Seamless Steel Pipes Sizes

  • OD: 1/8 – 8” NB to 72” NB
  • Length: Single/ Double & custom cut lengths
  • Wall Thickness: 3mm to 20mm
welded pipe size icon

ASTM A358 TP304l Stainless Steel Round Pipe Sizes

  • OD: 6NB to 1200NB
  • Length: Upto 6 meters Single/ Double
  • Wall Thickness:  SCH.5 to XX
End Types

ASTM A358 TP304 Cl1 Pipe End Types

  • Plain end, Roll groove
  • Cut groove, Threaded
  • Coupled, Bevel end
Features

Features of ASTM A358 Stainless Steel EFW Pipe

  • Good Temperature resistance
  • Good Flexibility
  • Corrosion resistance
  • Variety of uses
Origins

ASTM A358 TP304 Cl1 Pipe Origins

  • Singapore
  • Bahrain, India
  • Saudi Arabia
  • Mexico
pipe Types

Types of SS ASTM A358 Round Pipe

  • Hex
  • Square
  • Rectangle
  • Round
pipe manufacturing process

ASTM A358 TP304 Cl1 Pipe Manufacturing Process

  • Precision Rolled
  • Cold Formed
  • Hot Formed
Pipe Surface Finish

ASTM A358 UNS S31254 Welded Tube Surface Finish

  • Bright, Mirror
  • Polished
  • Annealing
Packaging

ASTM A358 UNS S31254 Welded Tube Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
Advantages

ASTM A358 Stainless Steel EFW Pipe Advantages

  • Easy installation
  • Durability
  • Seamless joints
  • Cost-effective
Pipe Testing

ASTM A358 TP304l Stainless Steel EFW Pipes Testing

  • Chemical
  • Ultrasonic
  • Mechanical
  • PMI
Standards

ASTM A358 SS EFW Pipe Standards

  • ASTM A358 / A358M
  • DIN, API, EN, UNS
  • GB, SUS, AISI,ASME
Measurement

Measurement of SS ASTM A358 Round Pipe

  • Outer diameter
  • Thickness, Length
  • Straightness, Ovality
  • Inner diameter
Disadvantages

ASTM A358 Stainless Steel EFW Pipe Disadvantages

  • Heat-affected zone
  • Weld seam
  • Joining dissimilar metals
  • Residual stress
Applications

ASTM A358 Class 1 EFW Pipes Applications

  • Food & Beverage Industry
  • Mechanical Jobs
  • Geothermal Plants
  • Thermal & Power Plants
Documentation

ASTM A358 EFW Pipe Documentation

  • Mill Test Certificates
  • Visual Inspection
  • PMI Test Reports

Types of SS ASTM A358 Round Pipe


ASTM A358 Stainless Steel EFW Pipe Supplier in ChinaOffers A Wide Variety Of Commonly Used Pipe Types.


ASTM A358 Stainless Steel EFW Pipe

ASTM A358 Stainless Steel EFW Pipe

ASTM A358 CL2 EFW Pipe

ASTM A358 CL2 EFW Pipe

ASTM A358 TP304 Cl1 Pipe

ASTM A358 TP304 Cl1 Pipe

ASTM A358 EFW Pipe

ASTM A358 EFW Pipe

SS ASTM A358 Round Pipe

SS ASTM A358 Round Pipe

ASTM A358 TP304l Stainless Steel EFW Pipes

ASTM A358 TP304l Stainless Steel EFW Pipes

ASTM A358 EFW Welded Pipes

ASTM A358 EFW Welded Pipes

ASTM A358 Class 1 EFW Pipes

ASTM A358 Class 1 EFW Pipes

ASTM A358 UNS S31254 Welded Tube

ASTM A358 UNS S31254 Welded Tube


Schedule Chart Of ASTM A358 Class 1 EFW Pipes

ASTM A358 Stainless Steel EFW Pipe Manufacturer in China Offers A Wide Range Of Diameters To Meet Customer Needs.

NB Size SCH 40 SCH 160 SCH 5 SCH 80 SCH 10
1 1/2″ ✓ ✓ ✓ ✓ ✓
6″ ✓   ✓ ✓ ✓
1/8″ ✓   ✓ ✓ ✓
5″ ✓   ✓ ✓ ✓
1/4″ ✓   ✓ ✓ ✓
4″ ✓ ✓ ✓ ✓ ✓
1 1/4″ ✓ ✓ ✓ ✓ ✓
3/8″ ✓   ✓ ✓ ✓
1″ ✓ ✓ ✓ ✓ ✓
3″ ✓ ✓ ✓ ✓ ✓
1/2″ ✓ ✓ ✓ ✓ ✓
2″ ✓ ✓ ✓ ✓ ✓
2 1/2″ ✓ ✓ ✓ ✓ ✓
3/4″ ✓ ✓ ✓ ✓ ✓

Weight Chart of ASTM A358 TP304l Stainless Steel Welded Pipe

Nominal Outside Nominal Wall Thickness (mm)
DIA DIA ASME B36.10M ASME B36.19M
(MM) NPS SCH10 XS SCH5 STD SCH20 SCH80S SCH5S SCH40S SCH10S
762 30 7.92 12.7 6.35 9.53 12.7 - 6.35 - 7.92
13.72 1/4 1.65 3.02 - 2.24 - 3.02 - 2.24 1.65
711.2 28 7.92 12.7 - 9.53 12.7 - - - -
17.15 3/8 1.65 3.2 - 2.31 - 3.2 - 2.31 1.65
660.4 26 7.92 12.7 - 9.53 12.7 - - - -
21.34 1/2 2.11 3.73 1.65 2.77 - 3.73 1.65 2.77 2.11
609.6 24 6.35 12.7 5.54 9.53 9.53 12.7 5.54 9.53 6.35
26.67 3/4 2.11 3.91 1.65 2.87 - 3.91 1.65 2.87 2.11
558.8 22 6.35 12.7 4.78 9.53 9.53 - 4.78 - 5.54
33.4 1 2.77 4.55 1.65 3.38 - 4.55 1.65 3.38 2.77
508 20 6.35 12.7 4.78 9.53 9.53 12.7 4.78 9.53 5.54
42.16 1 1/4 2.77 4.85 1.65 3.56 - 4.85 1.65 3.56 2.77
168.28 6 3.4 10.97 2.77 7.11 - 10.97 2.77 7.11 3.4
457.2 18 6.35 12.7 4.19 9.53 7.92 12.7 4.19 9.53 4.78
48.26 1 1/2 2.77 5.08 1.65 3.68 - 5.08 1.65 3.68 2.77
141.3 5 3.4 9.53 2.77 6.55 - 9.53 2.77 6.55 3.4
406.4 16 6.35 12.7 4.19 9.53 7.92 12.7 4.19 9.53 4.78
60.33 2 2.77 5.54 1.65 3.91 - 5.54 1.65 3.91 2.77
355.6 14 6.35 12.7 3.96 9.53 7.92 12.7 3.96 9.53 4.78
73.03 2 1/2 3.05 7.01 2.11 5.16 - 7.01 2.11 5.16 3.05
323.85 12 4.57 12.7 3.96 9.53 6.35 12.7 3.96 9.53 4.57
88.9 3 3.05 7.62 2.11 5.49 - 7.62 2.11 5.49 3.05
273.05 10 4.19 12.7 3.4 9.27 6.35 12.7 3.4 9.27 4.19
101.6 3 1/2 3.05 8.08 2.11 5.74 - 8.08 2.11 5.74 3.05
219.08 8 3.76 12.7 2.77 8.18 6.35 12.7 2.77 8.18 3.76
114.3 4 3.05 8.56 2.11 6.02 - 8.56 2.11 6.02 3.05

SS ASTM A358 Round Pipe Pressure Rating

OD IN THEORETICAL BURST PRESSURE * (PSI) COLLAPSE PRESSURE *** (PSI) AVE. WALL INCHES THEORETICAL YIELD POINT ** (PSI) MIN YIELD STRENGTH (PSI) WORKING PRESSURE (PSI) 25% OF BURST MIN TENSILE STRENGTH (PSI)
1.250 6,380 2,260 0.049 2,552 30,000 1,595 75,000
2.000 14,820 4,542 0.165 5,928 30,000 3,705 75,000
1.750 3,864 1,434 0.049 1,546 30,000 966 75,000
1.000 4,449 1,633 0.028 1,780 30,000 1,112 75,000
0.250 14,286 4,416 0.020 5,714 30,000 3,571 75,000
2.000 13,028 4,111 0.148 5,211 30,000 3,257 75,000
0.250 21,649 5,967 0.028 8,660 30,000 5,412 75,000
2.000 11,605 3,751 0.134 4,642 30,000 2,901 75,000
0.375 8,955 3,029 0.020 3,582 30,000 2,239 75,000
2.000 5,214 1,887 0.065 2,086 30,000 1,303 75,000
0.375 13,166 4,145 0.028 5,266 30,000 3,292 75,000
2.000 3,864 1,434 0.049 1,546 30,000 966 75,000
0.375 17,213 5,077 0.035 6,885 30,000 4,303 75,000
2.000 2,720 1,032 0.035 1,088 30,000 680 75,000
0.500 6,522 2,304 0.020 2,609 30,000 1,630 75,000
1.750 17,430 5,124 0.165 6,972 30,000 4,357 75,000
0.500 9,459 3,172 0.028 3,784 30,000 2,365 75,000
1.750 13,563 4,242 0.134 5,425 30,000 3,391 75,000
0.500 12,209 3,906 0.035 4,884 30,000 3,052 75,000
1.750 15,268 4,645 0.148 6,107 30,000 3,817 75,000
0.625 5,128 1,859 0.020 2,051 30,000 1,282 75,000
0.750 7,721 2,669 0.035 3,088 30,000 1,930 75,000
1.750 11,921 3,832 0.120 4,768 30,000 2,980 75,000
0.625 7,381 2,568 0.028 2,953 30,000 1,845 75,000
1.750 10,672 3,504 0.109 4,554 30,000 2,668 75,000
0.875 5,128 1,859 0.028 2,051 30,000 1,282 75,000
0.625 32,759 7,734 0.095 13,103 30,000 8,190 75,000
1.750 3,125 1,176 0.035 1,250 30,000 781 75,000
0.625 40,172 8,639 0.109 16,069 30,000 10,043 75,000
0.875 3,593 1,340 0.020 1,437 30,000 898 75,000
0.750 6,052 2,156 0.028 2,421 30,000 1,513 75,000
1.500 14,286 4,416 0.120 5,714 30,000 3,571 75,000
1.000 27,459 6,963 0.134 10,984 30,000 6,865 75,000
1.250 4,449 1,633 0.035 1,780 30,000 1,112 75,000
1.500 16,315 4,881 0.134 6,526 30,000 4,079 75,000
1.000 5,645 2,027 0.035 2,258 30,000 1,411 75,000
1.500 18,439 5,336 0.148 7,375 30,000 4,610 75,000


Tolerance Chart Of ASTM A358 TP304l Stainless Steel EFW Pipes

NPS DESIGNATOR PERMISSIBLE VARIATIONS IN OUTSIDE DIAMETER
UNDER IN. OVER IN.
Over 8 to 18, incl 1/32 (0.031) 3/23 (0.093)
1/8 to 1-1/2, incl 1/32 (0.031) 1/64 (0.015)
Over 4 to 8, incl 1/32 (0.031) 1/16 (0.062)
Over 1-1/2 to 4, incl 1/32 (0.031) 1/32 (0.031)

Nominal Wall Thickness Chart Of ASTM A358 TP304 Cl1 Pipe

NPS DESIGNATOR SCHEDULE 10S IN. SCHEDULE 80S IN. OUTSIDE DIAMETER IN. SCHEDULE 40S IN. SCHEDULE 5S IN.
2 0.109 0.218 2.375 0.154 0.065
1 1/2 0.109 0.200 1.900 0.145 0.065
3 1/2 0.120 0.318 4.000 0.226 0.083
12 0.180 0.500 12.750 0.375 0.156
1/4 0.065 0.119 0.540 0.088
10 0.165 0.500 10.750 0.365 0.134
3/8 0.065 0.126 0.675 0.091
8 0.148 0.500 8.625 0.322 0.109
1/2 0.083 0.147 0.840 0.109 0.065
6 0.134 0.432 6.625 0.280 0.109
3/4 0.083 0.154 1.050 0.113 0.065
5 0.134 0.375 5.563 0.258 0.109
1.0 0.109 0.179 1.315 0.133 0.065
4 0.120 0.337 4.500 0.237 0.083
1 1/4 0.109 0.191 1.660 0.140 0.065
3 0.120 0.300 3.500 0.216 0.083
2 1/2 0.120 0.276 2.875 0.203 0.083

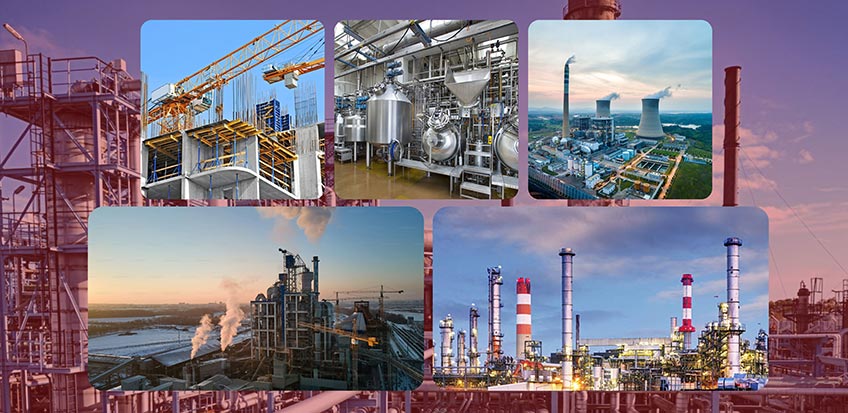

Applications Of ASTM A358 Stainless Steel EFW Pipe

Applications Of ASTM A358 Stainless Steel EFW Pipe

Applications

  • Food & Beverage Industry
  • Nuclear
  • Thermal & Power Plants
  • Construction Industry
  • Cement Industry
  • Heat Exchangers
  • Geothermal Plants
  • Petrochemical, Boilers




ASTM A358 TP304 Cl1 Pipe Chemical Composition

Grades % MAX ASTM A358 CHEMICAL COMPOSITION
Ti C Nb Cr Mn N B P Mo S Ni Si
A358 TP316L … 0.035 … 16.0-18.0 2.00 … 0.045 2.00-3.00 0.030 10.0-14.0 1.00
A358 TP304 … 0.08 … 18.0-20.0 2.00 … 0.045 … 0.030 8.0-11.0 1.00
A358 TP316 … 0.08 … 16.0-18.0 2.00 … 0.045 2.00-3.00 0.030 11.0-14.0 1.00
A358 TP304L … 0.035 D … 18.0-20.0 2.00 … 0.045 … 0.030 8.0-13.0 1.00

Seamless 304 Stainless Steel Pipe Mechanical Properties

MATERIAL YIELD STRENGTH TEMP ELONGATION %, MIN TENSILE STRENGTH
Ksi (MPA), MIN. MIN. Ksi (MPA), MIN.
º F(º C)
ASTM A358 TP316L 25(170) 1900(1040) 35 70(485)
ASTM A358 TP304 30(205) 1900 (1040) 35 75(515)
ASTM A358 TP316 30(205) 1900(1040) 35 75(515)
ASTM A358 TP304L 25(170) 1900 (1040) 35 70(485)

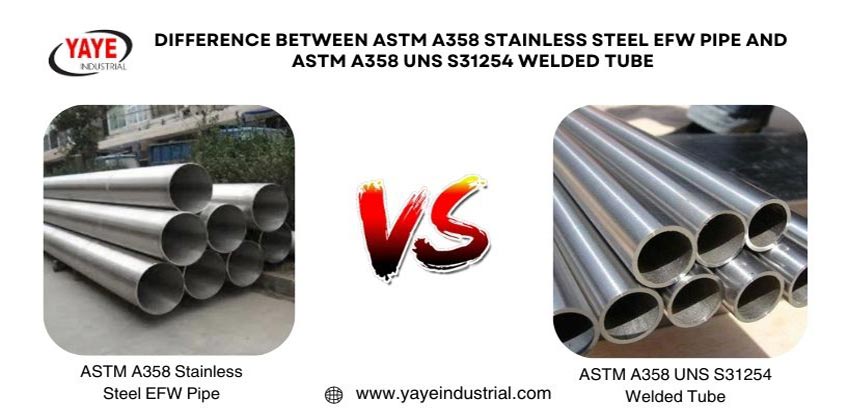

Difference Between ASTM A358 Stainless Steel EFW Pipe And ASTM A358 UNS S31254 Welded Tube

Difference Between ASTM A358 Stainless Steel EFW Pipe VS ASTM A358 UNS S31254 Welded Tube

ASTM A358 Stainless Steel EFW Pipe Vs ASTM A358 UNS S31254 Welded Tube

  ASTM A358 Stainless Steel EFW Pipe ASTM A358 UNS S31254 Welded Tube
Uses Used in manufacturing boilers, pressure vessels, and heat exchangers for chemical plants, petroleum refineries, and power generation plants Used in industries such as oil & gas, power generation, and chemical processing
Properties Resistant to adverse climate conditions, corrosion, and high temperatures Designed for high-pressure and corrosive environments
Classes EFW pipes come in five classes welded tubes come in schedules.



What Is Yaye Industrial Wenzhou's Production Capacity For Astm A358 Stainless Steel Efw Pipe?

  • 2,000 and 6,000 metric tons per year
  • Based On A Standard Setup With Equipment Like Jco Forming Presses
  • Helical/spiral Mills
  • Heat Treatment Furnaces
