ASTM A351 CF8 Valve | A351 CF3 Check Valve Manufacturer in China

A351 CF3 Check Valve Manufacturer in China, With Good Ductility and Strength

Table of Content

A351 CF3 Check Valve Specification
Types of UNS J92600 Swing Check Valves
Dimension Chart of ASME B16.34 A351 CF8 Globe Valve
Pressure Rating Chart of SA 351 Grade CF8 Ball Valve
Equivalent Grades of ASTM A217 Grade WC9 Relief & safety Valves
Chemical Composition of UNS J21890 Butterfly Valve
Mechanical Properties of ASTM A217 WC9 Valve

Get SA 351 Grade CF8 Ball Valve With Size Ranging From 1/4 to 24 inch , Check Specification

A351 CF3 Check Valve Specification

ASTM A351 CF8 Valve Sizes

2" to 120"

Aço Inox ASTM A351 Gr CF8 Valve Standards

ASME B16.34

UNS J92600 Swing Check Valves End Connection

Butt weld
Socket weld
Flanged
Threaded

ASTM A351 CF8 Valve Pressure Rating

150 Lb to 250 Lb

300 Lb to 400 Lb

600 Lb to 900 Lb

1500 Lb to 2500 Lb

Aço Inox ASTM A351 Gr CF8 Valve Temperature

-46°C to 200°C

Types of ASME B16.34 A351 CF8 Globe Valve

Ball valves, Gate valves
Check valves, Needle valves
Plug valves, Diaphragm valves
Globe valves, Butterfly valves

ASME B16.34 A351 CF8 Globe Valve Threads

UNF
NPT
BSPT
BSPP

Seal Types of A351 CF3 Check Valve

FKM
EPDM
PTFE
NBR

ASTM A351 CF8 Valve Testing Methods

Fugitive Emissions Testing
Pressure Testing
Shell Testing
Cryogenic Testing

UNS J92600 Swing Check Valves Media

Gas
Water
Seawater
Oil

Types of UNS J92600 Swing Check Valves

ASTM A351 Gr. CF8 Ball Valve

Stainless Steel SA 351 grade CF8 Valves

ASTM A351 Gr. CF8 Globe Valve

ASME B16.34 A351 CF8 Diaphragm Valves

ASTM A351 Aci Grade CF8 Cryogenic Valves

CF8 Stainless Steel Ball Valves

ASTM A351 Aci Grade CF8 Gate Valves

ASTM A351 Aci Grade CF8 API 600 Globe Valve

ASME B16.34 A351 CF8 Pressure Seal Gate Valve

Leading Supplier of UNS J92600 Swing Check Valves With Multiple Dimentions, Check Size Chart

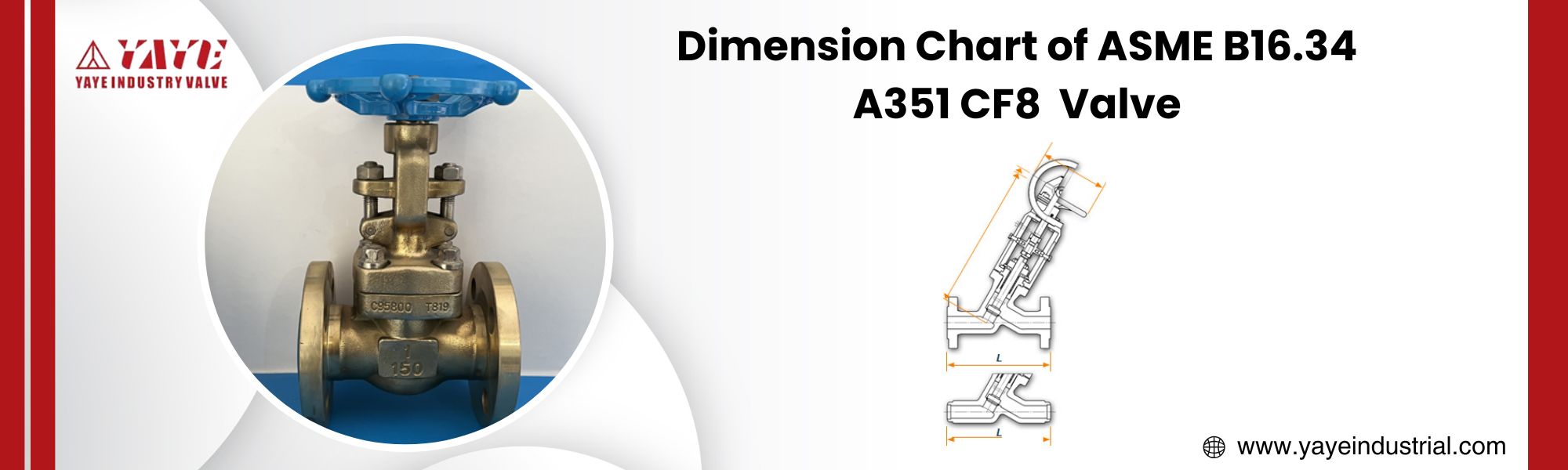

Dimension Chart of ASME B16.34 A351 CF8 Globe Valve

Dimension of ASME B16.34 A351 CF8 Globe Valve

RATING Ò	600#			300#			150#
SIZE Ô	D	H	L	D	H	L	D	H	L
12“ DN300	Ø800	1878	813	Ø800	1800	711	Ø500	1570	775
1“ DN025	Ø160	360	133	Ø160	360	203	Ø160	360	160
6“ DN150	Ø630	1420	457	Ø400	1135	444	Ø315	1015	470
10“ DN250	Ø800	1655	711	Ø630	1480	622	Ø400	1187	673
4“ DN100	Ø400	900	305	Ø315	850	356	Ø315	850	368
1½“ DN040	Ø280	440	152	Ø225	440	229	Ø225	440	203
8“ DN200	Ø800	1535	584	Ø500	1280	559	Ø400	1137	597
2“ DN050	Ø360	580	178	Ø280	530	267	Ø280	530	229

Find Aço Inox ASTM A351 Gr CF8 Valve With 150Lb to 2500Lb Pressure Rating Check Properties

Pressure Rating Chart of SA 351 Grade CF8 Ball Valve

Temp ºF	2500	600	150	900	1500	300
800	4,230	1,015	80	1,525	2,540	510
1050	1,430	345	20(1)	515	855	170
700	4,730	1,135	110	1,705	2,840	570
900	3,745	900	50	1,350	2,245	450
1200	430	105	20(1)	155	255	50
200	6,250	1,500	260	2,250	3,750	750
1150	630	150	20(1)	225	375	75
650	4,905	1,175	125	1,765	2,940	590
300	6,070	1,455	230	2,185	3,640	730
950	3,145	755	35	1,130	1,885	375
750	4,430	1,065	95	1,595	2,660	530
400	5,880	1,410	200	2,115	3,530	705
1000	2,115	505	20	760	1,270	255
500	5,540	1,330	170	1,995	3,325	665
850	4,060	975	65	1,460	2,435	485
1100	945	225	20(1)	340	565	115
600	5,040	1,210	140	1,815	3,025	605
-20 to 100	6,250	1,500	290	2,250	3,750	750

Equivalent Grades Of ASME A351 CF8C Gate Valve

ASME

SA351

DIN

1.4408

ASTM

A351

UNS

J92600

Chemical Composition of UNS J21890 Butterfly Valve

Sulfur

0.040 max

Phosphorus

0.040 max

Carbon

0.08 max

Molybdenum

max 0.50

Manganese

1.50 max

Silicon

2.0 max

Nickel

8.0-11.0

Chromium

18.0-21.0

Mechanical Properties of ASTM A217 WC9 Valve

Yield Strength

min 30ksi (205Mpa)

Reduction of Area

min 35.0%

Tensile Strength

min 70ksi(485Mpa)
