ASTM A182 F347 Valve | A182 F347H Stainless Steel Valve

A182 F347H Stainless Steel Valve Manufacturer in China, Accordance to ASTM A182

Table of Content

ASTM A182 F347 Valve Sizes

1/8" to 96"

A182 F347H Stainless Steel Valve Standards

ASME B16.34

Grade 347 Stainless Steel Valves Features

A182 F347H Globe Valve Benefits

ASTM A182 F347 Swing Check Valve Testing Methods

Media of Grade 347 Butterfly Valve

ASTM A182 F347 Gate Valve End Connection

A182 F347H Ball Valve Pressure Rating

class 150 to 2500

ASTM A182 F347 Gate Valve Temperature

up to around 1100°F (593°C)

Types ofASTM A182 F347 Valve

ASTM A182 F347 Valve

A182 F347H Stainless Steel Valve

A182 F347H Check Valve

Grade 347 Butterfly Valve

A182 F347H Ball Valve

ASTM A182 F347 Swing Check Valve

A182 F347H Globe Valve

ASTM A182 F347 Gate Valve

Grade 347 Stainless Steel Valves

Grade	WERKSTOFF NR.	JIS	UNS
SS 347	1.4550	B2220	S34700
SS 347H	X6CrNiNb18-12	-	S34709

Grade	Cr	S	C	Ni	Mn	Si	P
SS 347	17.00 - 20.00	0.030 max	0.08 max	9.00 - 13.00	2.00 max	1.00 max	0.045 max
SS 347H	17.00 - 20.00	0.030 max	0.04 - 0.10	9.00 - 13.00	2.00 max	1.00 max	0.045 max

GRADES	Yield Strength, min, ksi [MPa]	Elongation in 2 in. [50mm] or 4D, min, %	Reduction or Area, min, %	Tensile Strength, min, ksi [MPa]
SS 347	31 [215]	35	-	71 [490]
SS 347H	30 [205]	30	50	75 [515]

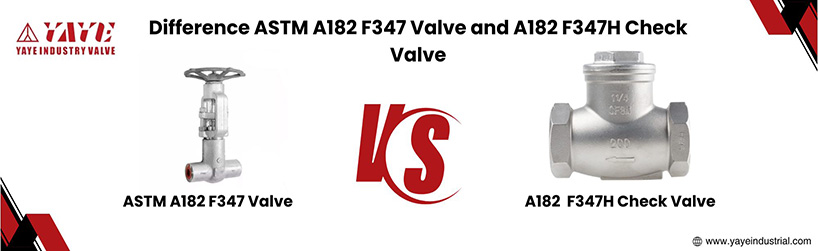

ASTM A182 F347 Valve	A182 F347H Check Valve
A Stabilized, Austenitic Stainless Steel	A Niobium-stabilized Austenitic Stainless Steel
Used to Make Bare Forgings or Machined Products for High Temperature Applications	Used to Make Flanges for Piping Systems That Need to Withstand High Pressure and High Temperatures
