Cast Iron Valve Manufacturer in China

BS5152 Cast Iron Globe Valve Manufacturer in China, At Factory Price

Table of Content

BS5152 Cast Iron Globe Valve Sizes

1/2" to 72"

ASTM A126 Class B Cast Iron Check Valve Valve Standards

ASME B16.10

ASME B16.34

Cast Iron Plug valve Features

Cast Iron Wafer Check Valves End Connection

Cast Iron Globe Valve Temperature

-20 to 150 ºF

Cast Iron Butterfly Valve Media

ASTM A126 Class B Cast Iron Check Valve Pressure Rating

class 150 - 2500

Types of Cast Iron Valve

Connection of BS5152 Cast Iron Butterfly Valve

ASTM A126 Class B Cast Iron Foot Valve Operation

BS5152 Cast Iron Globe Valve

ASTM A126 Class B Cast Iron Check Valve

BS5152 Cast Iron Fire Safe Design Ball Valve

ASTM A126 Class B Cast Iron Flap Valve

Cast Iron Wafer Check Valves

Cast Iron Butterfly Valve

BS5152 Cast Iron Bellow Seal Gate Valve

ASTM A126 Class B Cast Iron Swing Check Valve

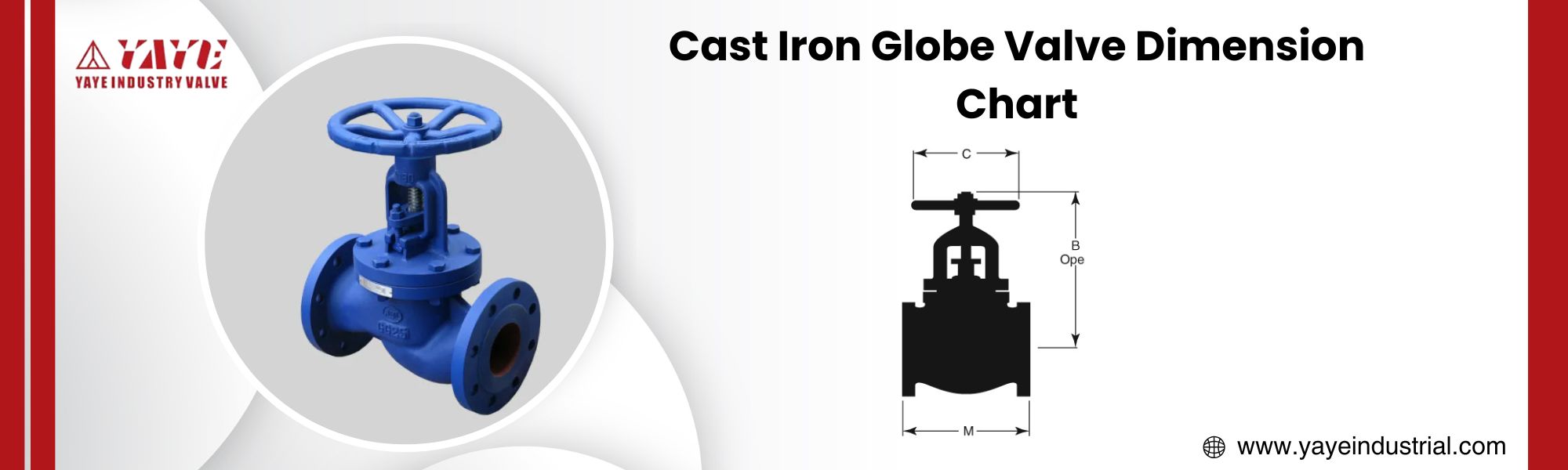

Cast Iron Globe Valve

Inches millimeters - Pounds kilograms
Valve Size	Dimensions			WT
Valve Size	C	M	B	WT
3	9.00	9.50	13.25	57
3	229	241	337	26
2	8.00	8.00	11.12	35
2	203	203	282	15
4	10.00	11.50	15.50	95
4	254	292	394	43
2 1⁄2	8.00	8.50	11.50	40
2 1⁄2	203	216	292	18
5	10.00	13.00	17.50	126
5	254	330	445	57
8	16.00	19.50	25.00	344
8	406	495	635	156
6	12.00	14.00	19.50	176
6	305	356	495	80
10	18.00	24.50	30.50	570
10	457	622	775	259

Inches millimeters - Pounds kilograms
Valve Size	Dimensions			WT
Valve Size	M	C	B	WT
3/8	3.62	2.56	5.38	1.8
3/8	92	65	137	.82
1⁄4	3.62	2.56	5.38	1.8
1⁄4	92	65	137	.82
1⁄2	2.80	2.56	5.24	1.54
1⁄2	71	65	133	.74
1	3.90	3.06	6.73	3.8
1	99	78	171	1.71
1 1⁄4	4.41	3.62	7.68	5.93
1 1⁄4	112	92	195	2.67
3⁄4	3.31	2.75	5.31	2.53
3⁄4	84	70	135	1.14
1 1⁄2	4.92	4.06	8.62	8.07
1 1⁄2	125	103	219	3.63
2	5.98	4.75	9.80	12.76
2	152	121	249	5.74
